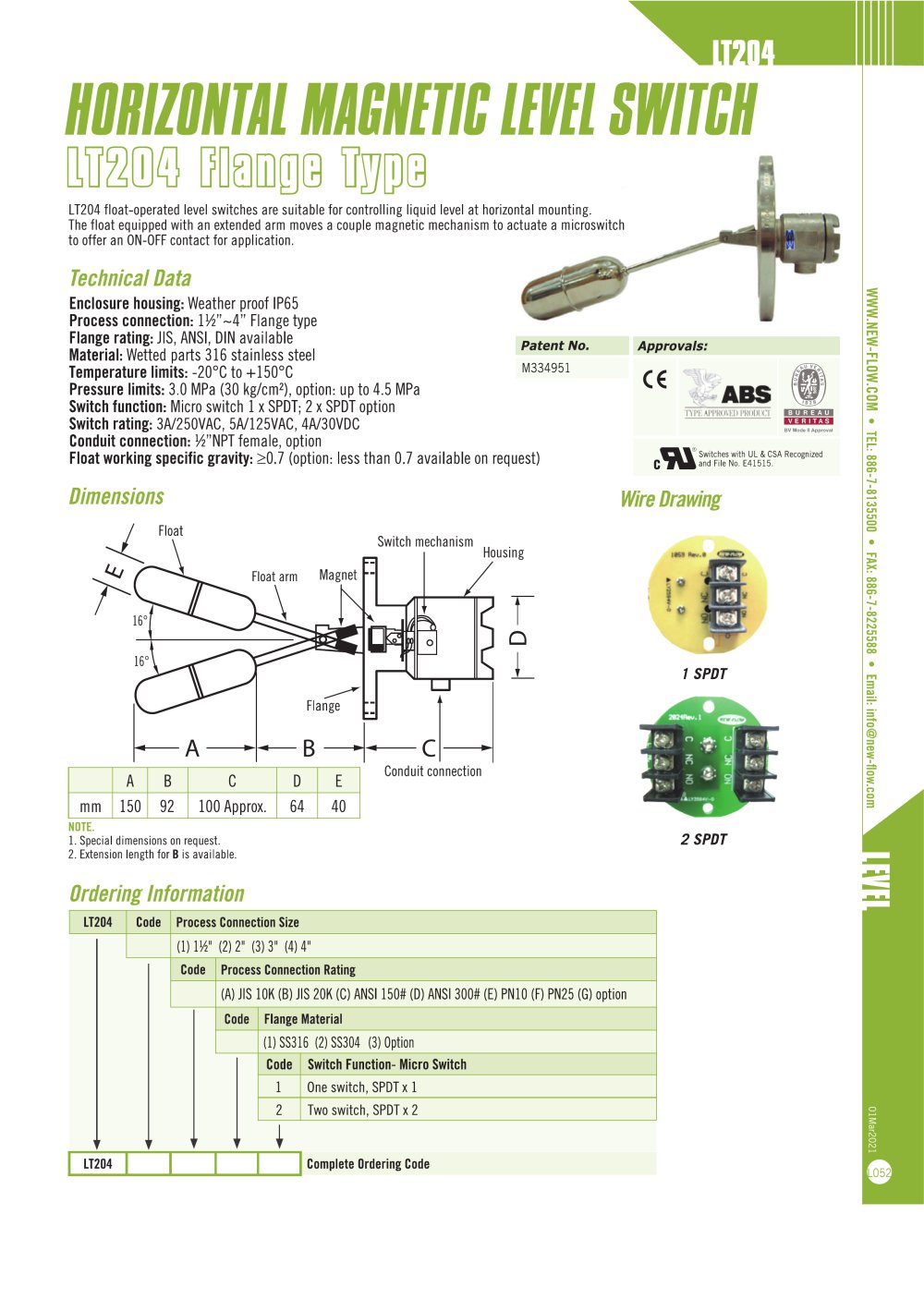

LT-204 - 33181 LT-204 Flange TypeLT-204 Flange Type HORIZONTAL MAGNETIC LEVEL SWITCH

LT-204 float-operated level switches are suitable for controlling liquid level at horizontal mount-ing. The float equiped with an extended arm moves a couple magnetic mechanism to actuate a microswitch to offer an ON-OFF contact for application.

Technical Data

Process connection size: 1 ½Ë� ~4Ë� Flange rating: JIS, ANSI, DIN available Material: wetted parts 316 stainless steel Temperature limits: -30ºC to 150ºC Pressure limits: 3.0 MPa (30 kg/cm²) Enclosure housing: water proof IP65 Switch function: SPDT Micro switch Switch rating: 3A/250VAC, 3A/30VDC, 0.4A/125VDC Conduit connection: ½Ë� NPT female

Dimensions

i tch mechan i sm Condu i ngSw COMNONC Float MagnetHous Float arm A1B1b1B2b2A2 COM NC E D NO Flange

A B C

Wire Drawing ABCDEmm15094105 Approx.6440 i t connect i on

Ordering Information

LT-204CodeConnection Size (1) 1½Ë� (2) 2Ë� (3) 3Ë� (4) 4Ë� CodeSize Rating (A) JIS5K (B) JIS10K (C) JIS20K (D) ANSI 150 (E) ANSI 300 (F) PN10 (G) PN25 (H) option CodeFlange Material (1) 316SS (2)304SS LT-204 Golden Mountain Enterprise Co., Ltd.
No. 3 Lane 296 Hsin-Ya Rd. Chien Chen Dist. Kaohsiung 806, Taiwan ROCTEL: 886-7-8135500 FAX: 886-7-8225588 Email: info@new-flow.com http://www.new-flow.com http://www.newflow.com.tw LT-204 070906
