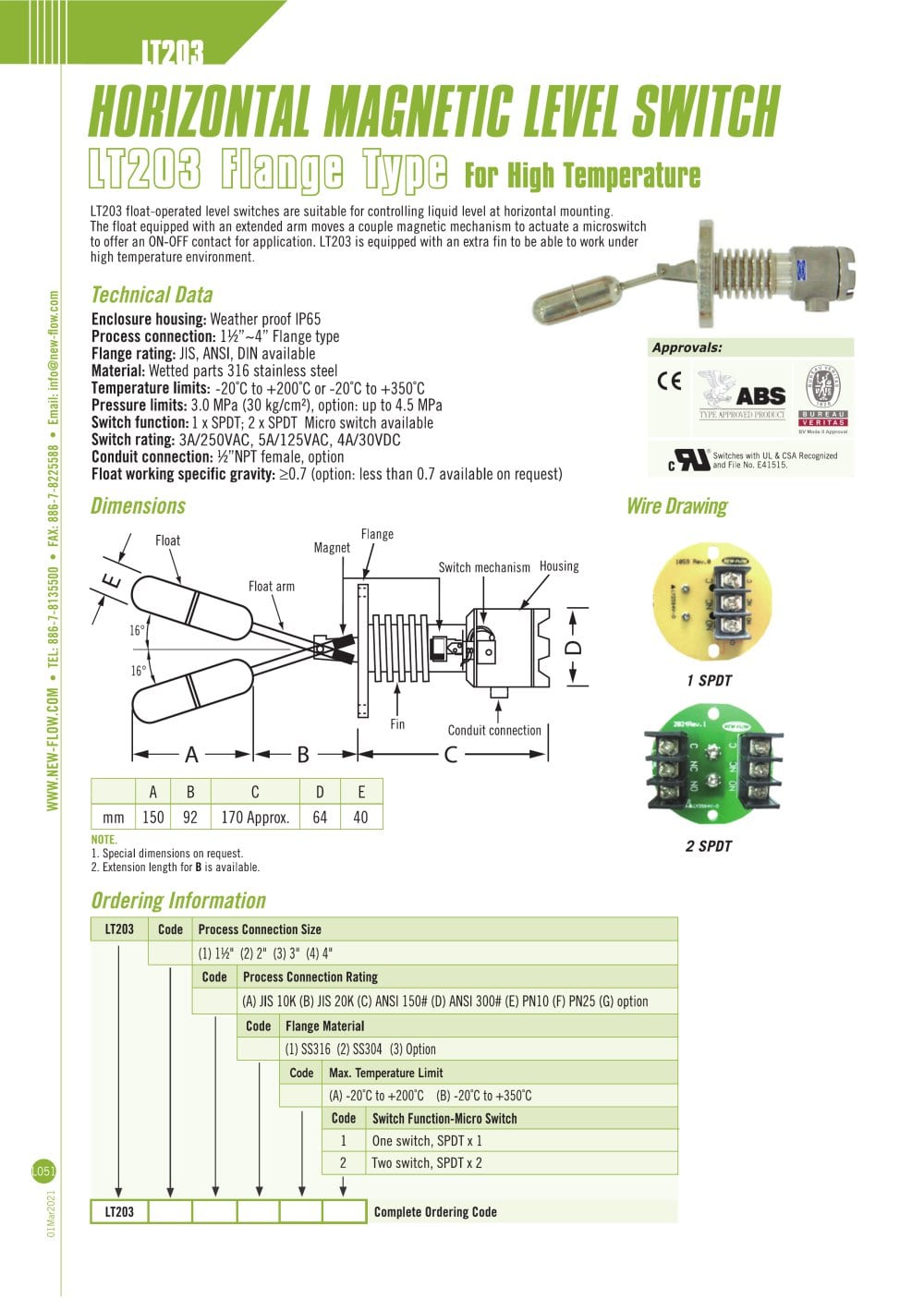

LT-203 Flange TypeLT-203 Flange Type HORIZONTAL MAGNETIC LEVEL SWITCH
For High Temperature
LT-203 float-operated
level switches are suitable for controlling liquid level at horizontal mount-ing. The float equiped with an extended arm moves a couple magnetic mechanism to actuate a microswitch to offer an ON-OFF contact for application. LT-203 is equipped with an extra fin to be able to work under high temperature enviornment.
Technical Data
Process connection: 1 ˝ ~4˝ NPT male, Flange type Flange rating: JIS, ANSI, DIN available Material: wetted parts 316 stainless steel Temperature limits: -30C to 350C Pressure limits: 3.0 MPa (30 kg/cm) Enclosure housing: water proof IP65 Switch function: SPDT
Micro switch Switch rating: 3A/250VAC, 3A/30VDC, 0.4A/125VDC Conduit connection: ˝ NPT female
Dimensions
Flange Magnet COMNONC i tch mechan i sm Condu i ngSw Float A1B1b1B2b2A2 Float armHous COM NC E D NO A B
Wire Drawing F i n C
ABCDEmm150105170 Approx.6440 i t connect i on Ordering Information
LT-203CodeConnection Size (1) 1˝ (2) 2˝ (3) 3˝ (4) 4˝ CodeSize Rating (A) JIS5K (B) JIS10K (C) JIS20K (D) ANSI 150 (E) ANSI 300 (F) PN10 (G) PN25 (H) option CodeFlange Material (1) 316SS (2)304SS LT-203 Golden Mountain Enterprise Co., Ltd.
No. 3 Lane 296 Hsin-Ya Rd. Chien Chen Dist. Kaohsiung 806, Taiwan ROCTEL: 886-7-8135500 FAX: 886-7-8225588 Email: info@new-flow.com
http://www.new-flow.com http://www.newflow.com.tw LT-203 070906
