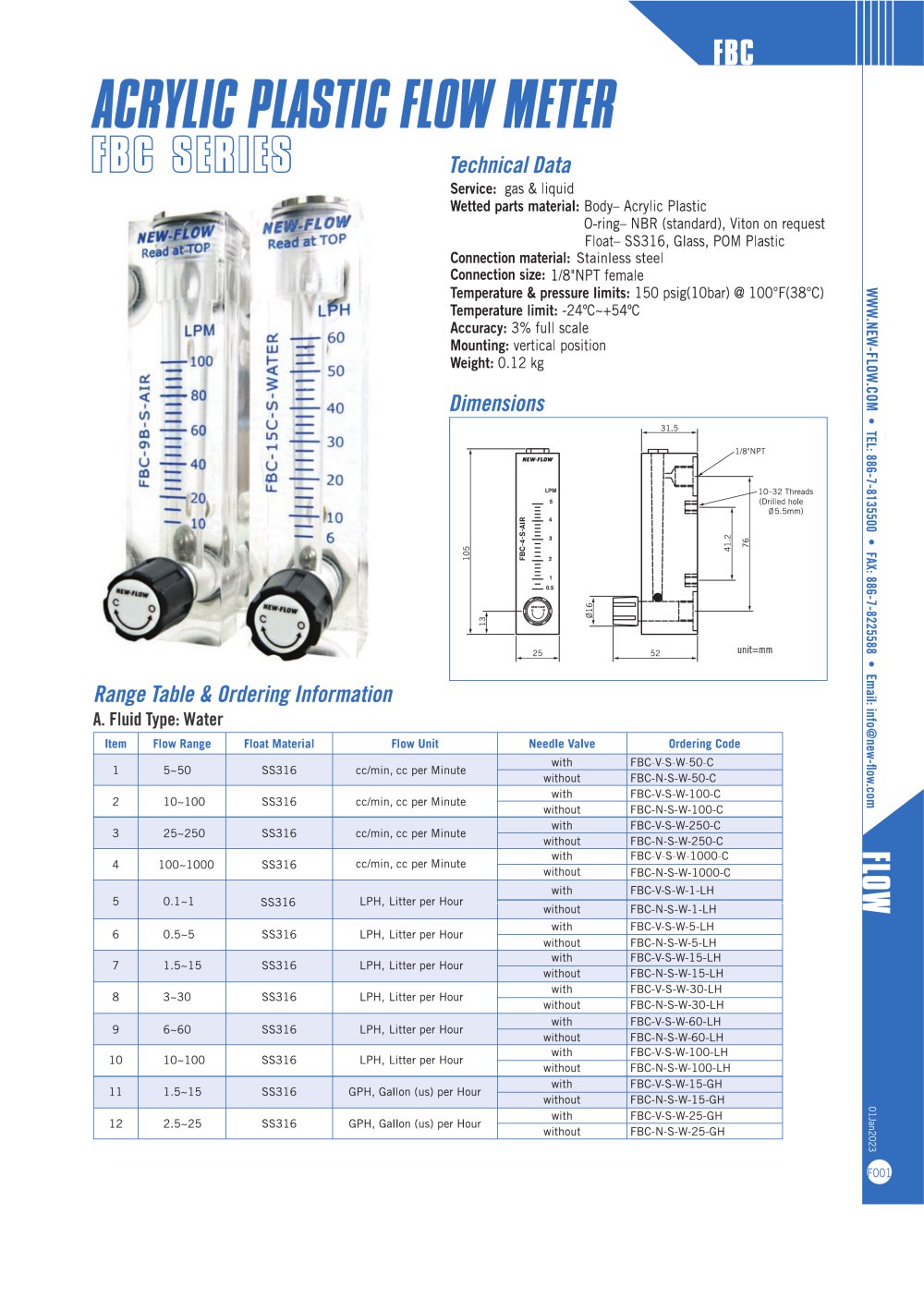

FBC(Acrylic flow meter) - 33181 ACRYLIC PLASTIC FLOW METER FBC SERIES FBC SERIES

Specifictions

Service: gases & liquids Wetted parts material: Body – Acrylic Plastic O-ring – NBR, Viton Float – SS316, , Glass, POM Plastic Valve material: SS316 Connecting material: SS316 Connecting size: Accurary: 3% full scale 1/8"NPT female Mounting: Temperature & pressure limits: vertical position Weight: 150 pisg(10bar) @ 100ºF(38ºC) Temperature limit: -24ºC~+54ºC 0.12 kg

Dimensions

31.5 1/8"NPT .%7 &,/7 LPM 10.525 M4 4 3 76 41.2 105 FBC-4-S-AIR .%7 &,/7 oc Ø16 13 25 52

GOLDEN MOUNTAIN ENTERPRISE CO., LTD.

FBC SERIES-1 09132006
