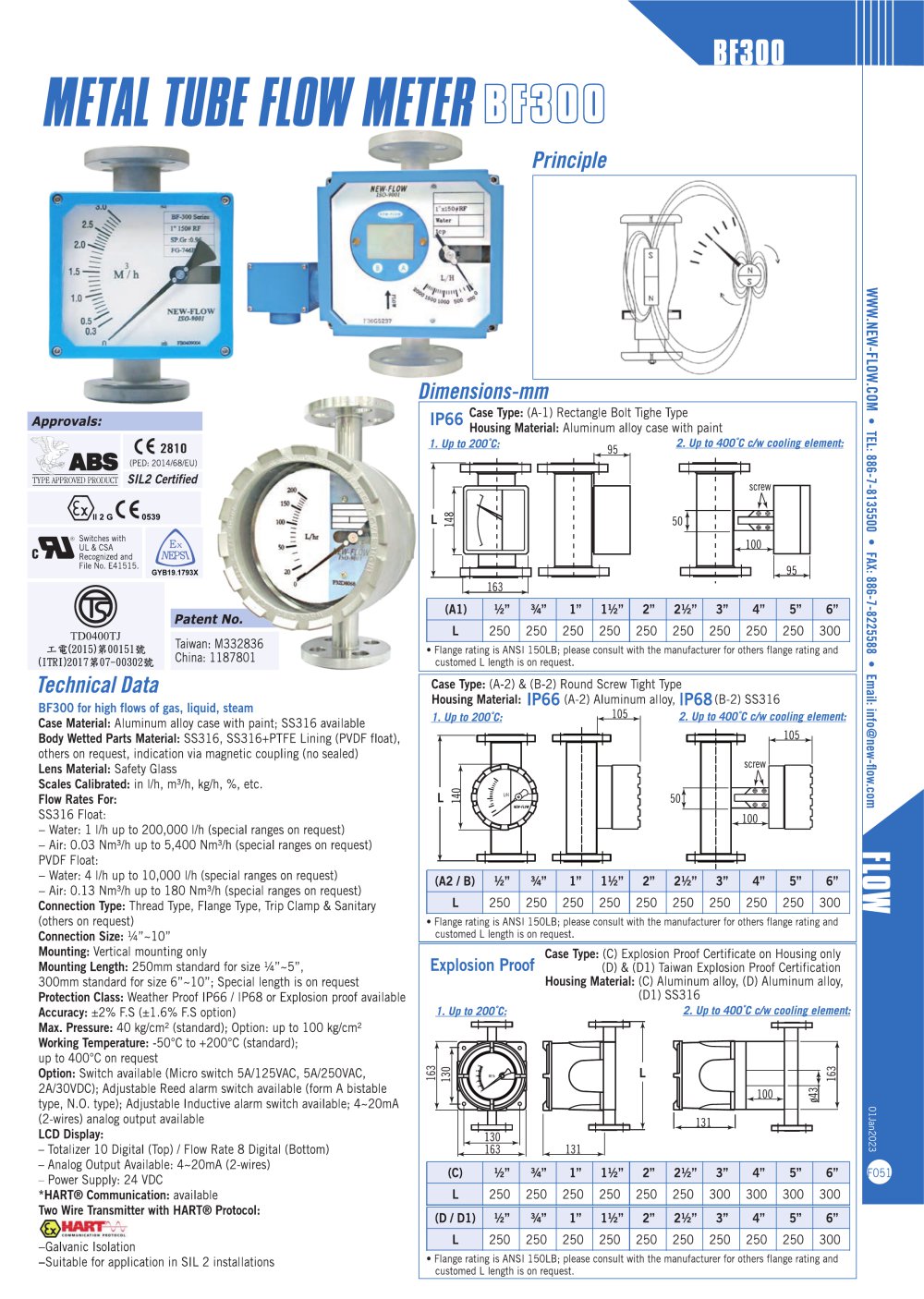

Technical Data BF300 for high flows of gas, liquid, steam Case Material: Aluminum alloy case with paint; SS316 available Body Wetted Parts Material: SS316, SS316+PTFE Lining (PVDF float), others on request, indication via magnetic coupling (no sealed) Lens Material: Safety Glass - Water: 1 l/h up to 200,000 l/h (special ranges on request) - Air: 0.03 Nm3/h up to 5,400 Nm3/h (special ranges on request) PVDF Float: - Water: 4 l/h up to 10,000 l/h (special ranges on request) - Air: 0.13 Nm3/h up to 180 Nm3/h (special ranges on request) Connection Type: Thread Type, Flange Type, Trip Clamp & Sanitary (others on request) Mounting: Vertical mounting only Mounting Length: 250mm standard for size !4"~5”, 300mm standard for size 6”~10"; Special length is on request Protection Class: Weather Proof IP66 / IP68 or Explosion proof available Accuracy: ±2% F.S (±1.6% F.S option) Max. Pressure: 40 kg/cm2 (standard); Option: up to 100 kg/cm2 Working Temperature: -50°C to +200°C (standard); up to 400°C on request Option: Switch available (Micro switch 5A/125VAC, 5A/250VAC, 2A/30VDC); Adjustable Reed alarm switch available (form A bistable type, N.O. type); Adjustable Inductive alarm switch available; 4~20mA (2-wires) analog output available - Totalizer 10 Digital (Top) / Flow Rate 8 Digital (Bottom) - Analog Output Available: 4~20mA (2-wires) - Power Supply: 24 VDC ‘HART® Communication: available Two Wire Transmitter with HART® Protocol: -Galvanic Isolation -Suitable for application in SIL 2 installations > Flange rating is ANSI 150LB; please consult with the manufacturer for others flange rating and customed L length is on request. 1 Flange rating Is ANSI 150LB; please consult with the manufacturer for others flange rating and customed L length is on request. Explosion Proof Case Type: (C) Explosion Proof Certificate on Housing only (D) & (Dl) Taiwan Explosion Proof Certification Housing Material: (C) Aluminum alloy, (D) Aluminum alloy, (Dl) SS316 ' Flange rating is ANSI 150LB; please consult with the manufacturer for others flange rating and customed L length is on request._ WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected]

Alarm /Analog Output BF-300 / GS-M (Micro Switch) ouan2023 WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] BF-300 /GS-R (Reed Switch) BF-300 / GS-C (Inductive Switch) 1 adjustable alarm Contact setting point should be within Alarm Switch: One or Two setting point, form A bistable type (N.O Type) Hysteresis: ±10% F.S (Dead Band) Contact setting point should be within 10% to 100% of F.S The second setting point should be a gap 40% from first setting point Adjustable Inductive Alarm Switch Hysteresis: ±1% F.S (Dead Band) Inductive Sensors Slotted Type: 3.5 mm...

Standard ScalesA. Float Material: SS316, SS316L available Tube The accuracy ±2% F.S for tube BF3004-BF3037 and BF3004P-BF3025P; option ±1.6% F.S on request. 2. Performance Technical Data are effective with date of issue and are subject to change without prior notice.

Connection Size Indicating Only V^'BSP (Female) Indicating + 4~20mA (no alarm switch available) Hall Sensor Type / Indicating + 4~20mA (no alarm switch available) HART Type / Indicating + HART (no alarm switch available) Vi”NPT (Female) Vfc"NPT (Female) Without Alarm Switch ouan2023 VT WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] Cl One Inductive Alarm Switch C2 Two Inductive Alarm Switches Housing Protection / Case Type / Material IP66 / Rectangle Bolt Tight Type / Aluminum alloy IP66 / Round Screw Tight Type / Aluminum alloy IP68 / Round Bayonet Ring...
