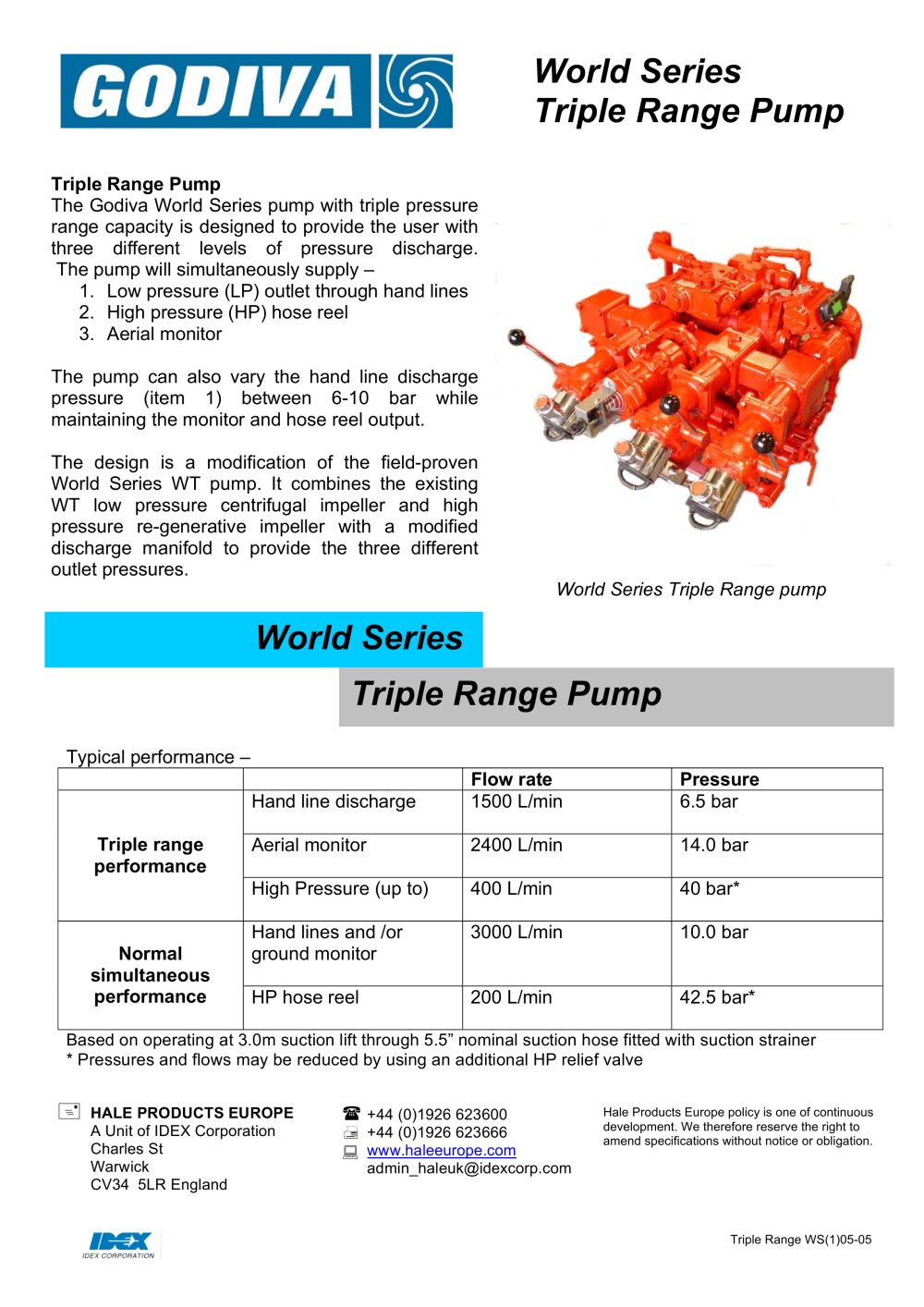

World Series Triple Range Pump Triple Range Pump The Godiva World Series pump with triple pressure range capacity is designed to provide the user with three different levels of pressure discharge. The pump will simultaneously supply – 1. Low pressure (LP) outlet through hand lines 2. High pressure (HP) hose reel 3. Aerial monitor The pump can also vary the hand line discharge pressure (item 1) between 6-10 bar while maintaining the monitor and hose reel output. The design is a modification of the field-proven World Series WT pump. It combines the existing WT low pressure centrifugal impeller and high pressure re-generative impeller with a modified discharge manifold to provide the three different outlet pressures. World Series Triple Range pump World Series Triple Range Pump Typical performance – Flow rate Pressure Hand line discharge 1500 L/min 6.5 bar Aerial monitor 2400 L/min 14.0 bar Triple range performance High Pressure (up to) 400 L/min 40 bar* Hand lines and /or ground monitor 3000 L/min 10.0 bar Normal simultaneous performance HP hose reel 200 L/min 42.5 bar* Based on operating at 3.0m suction lift through 5.5” nominal suction hose fitted with suction strainer * Pressures and flows may be reduced by using an additional HP relief valve .. +44 (0)1926 623600 +44 (0)1926 623666 www.haleeurope.com admin_haleuk@idexcorp.com .. .... HALE PRODUCTS EUROPE A Unit of IDEX Corporation Charles St Warwick CV34 5LR England Hale Products Europe policy is one of continuous development. We therefore reserve the right to amend specifications without notice or obligation.Triple Range WS(1)05-05
