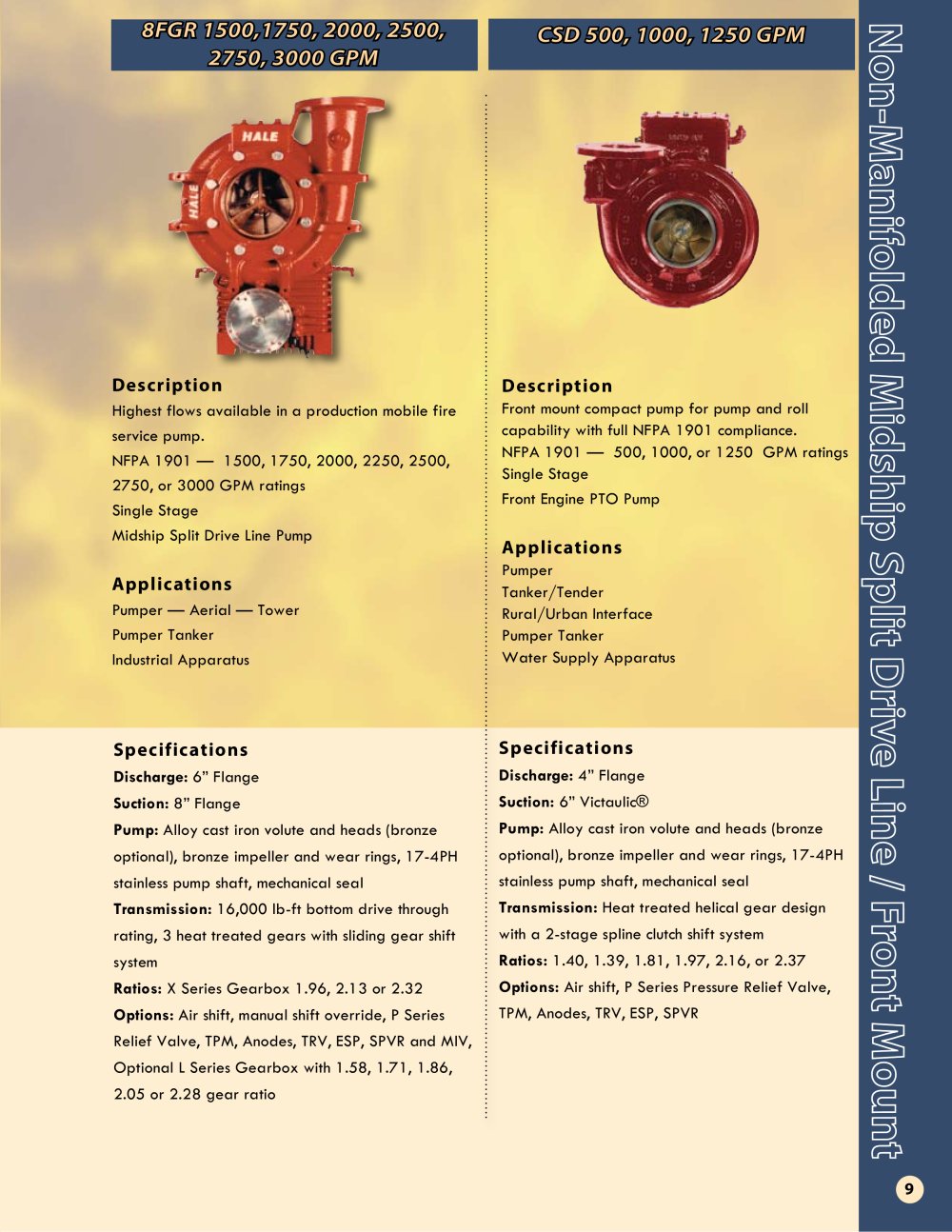

8FGR 1500,1750, 2000, 2500, CSD 500, 1000, 1250 GPM 2750, 3000 GPM

Description Description

Highest flows available in a production mobile fire service pump. NFPA 1901 — 1500, 1750, 2000, 2250, 2500, 2750, or 3000 GPM ratings Single Stage Midship Split Drive Line Pump Front mount compact pump for pump and roll capability with full NFPA 1901 compliance. NFPA 1901 — 500, 1000, or 1250 GPM ratings Single StageFront Engine PTO Pump

Applications

Pumper Tanker/Tender Rural/Urban Interface Pumper Tanker Water Supply Apparatus

Applications

Pumper — Aerial — Tower Pumper Tanker Industrial Apparatus

Specifications Specifications

Discharge: Ratios: X Series Gearbox 1.96, 2.13 or 2.32 6” Flange Discharge: 4” Flange Suction: Transmission: Options: 8” Flange Air shift, manual shift override, P Series Relief Valve, TPM, Anodes, TRV, ESP, SPVR and MIV, Optional L Series Gearbox with 1.58, 1.71, 1.86, 2.05 or 2.28 gear ratio 16,000 lb-ft bottom drive through rating, 3 heat treated gears with sliding gear shift system Suction: Transmission: Ratios: 1.40, 1.39, 1.81, 1.97, 2.16, or 2.37 6” Victaulic® Heat treated helical gear design with a 2-stage spline clutch shift system Pump: Alloy cast iron volute and heads (bronze optional), bronze impeller and wear rings, 17-4PH stainless pump shaft, mechanical seal Pump: Options: Alloy cast iron volute and heads (bronze optional), bronze impeller and wear rings, 17-4PH stainless pump shaft, mechanical seal Air shift, P Series Pressure Relief Valve, TPM, Anodes, TRV, ESP, SPVR 9
