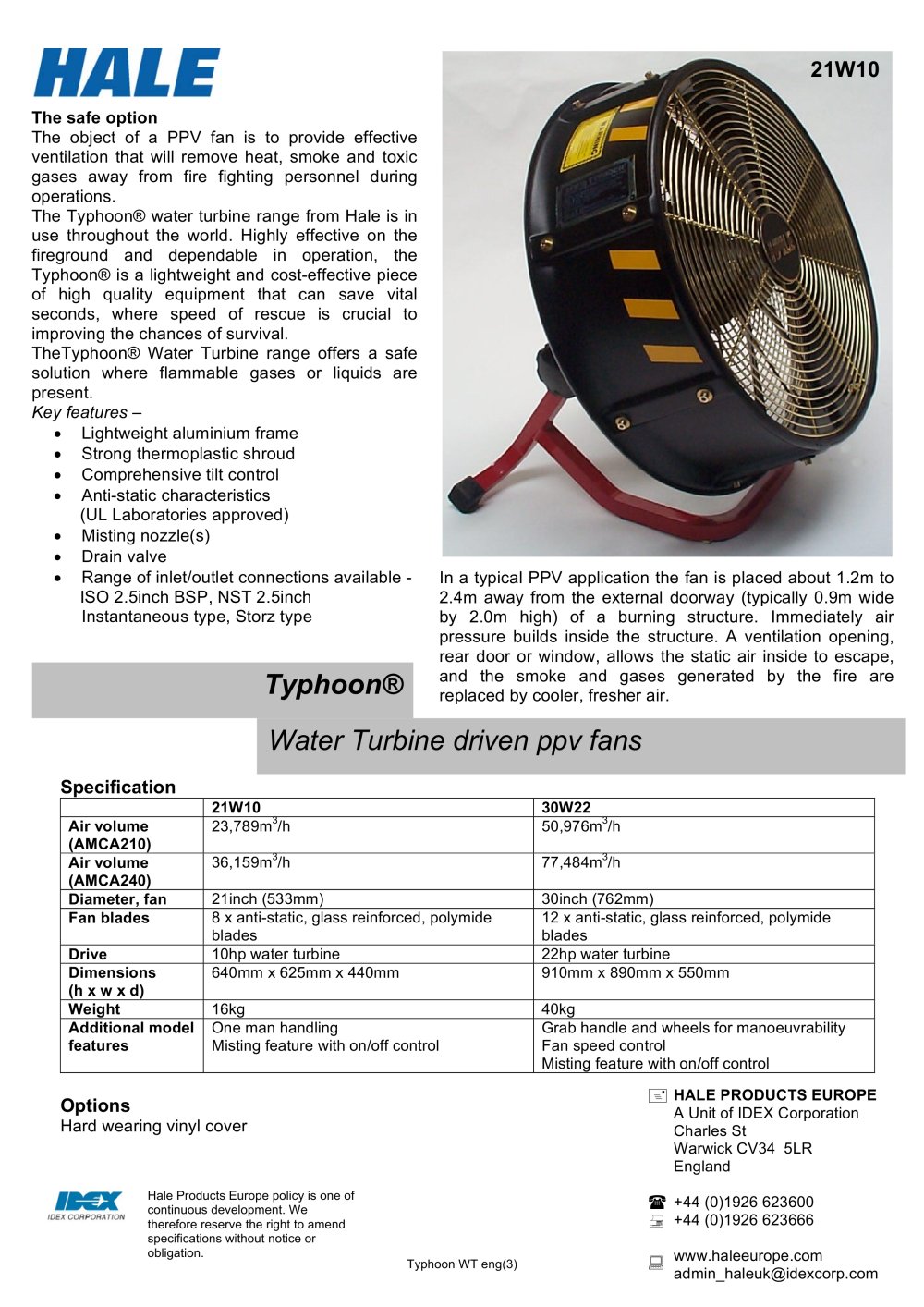

21W10 The safe option The object of a PPV fan is to provide effective ventilation that will remove heat, smoke and toxic gases away from fire fighting personnel during operations. The Typhoon® water turbine range from Hale is in use throughout the world. Highly effective on the fireground and dependable in operation, the Typhoon® is a lightweight and cost-effective piece of high quality equipment that can save vital seconds, where speed of rescue is crucial to improving the chances of survival. TheTyphoon® Water Turbine range offers a safe solution where flammable gases or liquids are present. Key features – • Lightweight aluminium frame • Strong thermoplastic shroud • Comprehensive tilt control • Anti-static characteristics (UL Laboratories approved) • Misting nozzle(s) • Drain valve • Range of inlet/outlet connections available - ISO 2.5inch BSP, NST 2.5inch Instantaneous type, Storz type Water Turbine driven ppv fans Typhoon® In a typical PPV application the fan is placed about 1.2m to 2.4m away fromthe external doorway (typically 0.9m wide by 2.0m high) of a burning structure. Immediately air pressure builds inside the structure. A ventilation opening, rear door or window, allows the static air inside to escape, and the smoke and gases generated by the fire are replaced by cooler, fresher air. Typhoon WT eng(3) Specification 21W10 30W22 Air volume (AMCA210) 23,789m3/h 50,976m3/h Air volume (AMCA240) 36,159m3/h 77,484m3/h Diameter, fan 21inch (533mm) 30inch (762mm) Fan blades 8 x anti-static, glass reinforced, polymide blades 12 x anti-static, glass reinforced, polymide blades Drive 10hp water turbine 22hp water turbine Dimensions (h x w x d) 640mm x 625mm x 440mm 910mm x 890mm x 550mm Weight 16kg 40kg Additional model features One man handling Misting feature with on/off control Grab handle and wheels for manoeuvrability Fan speed control Misting feature with on/off control Options Hard wearing vinyl cover .. .. .. .. HALE PRODUCTS EUROPE A Unit of IDEX Corporation Charles St Warwick CV34 5LR England +44 (0)1926 623600 +44 (0)1926 623666 www.haleeurope.com admin_haleuk@idexcorp.com Hale Products Europe policy is one of continuous development. We therefore reserve the right to amend specifications without notice or obligation.
