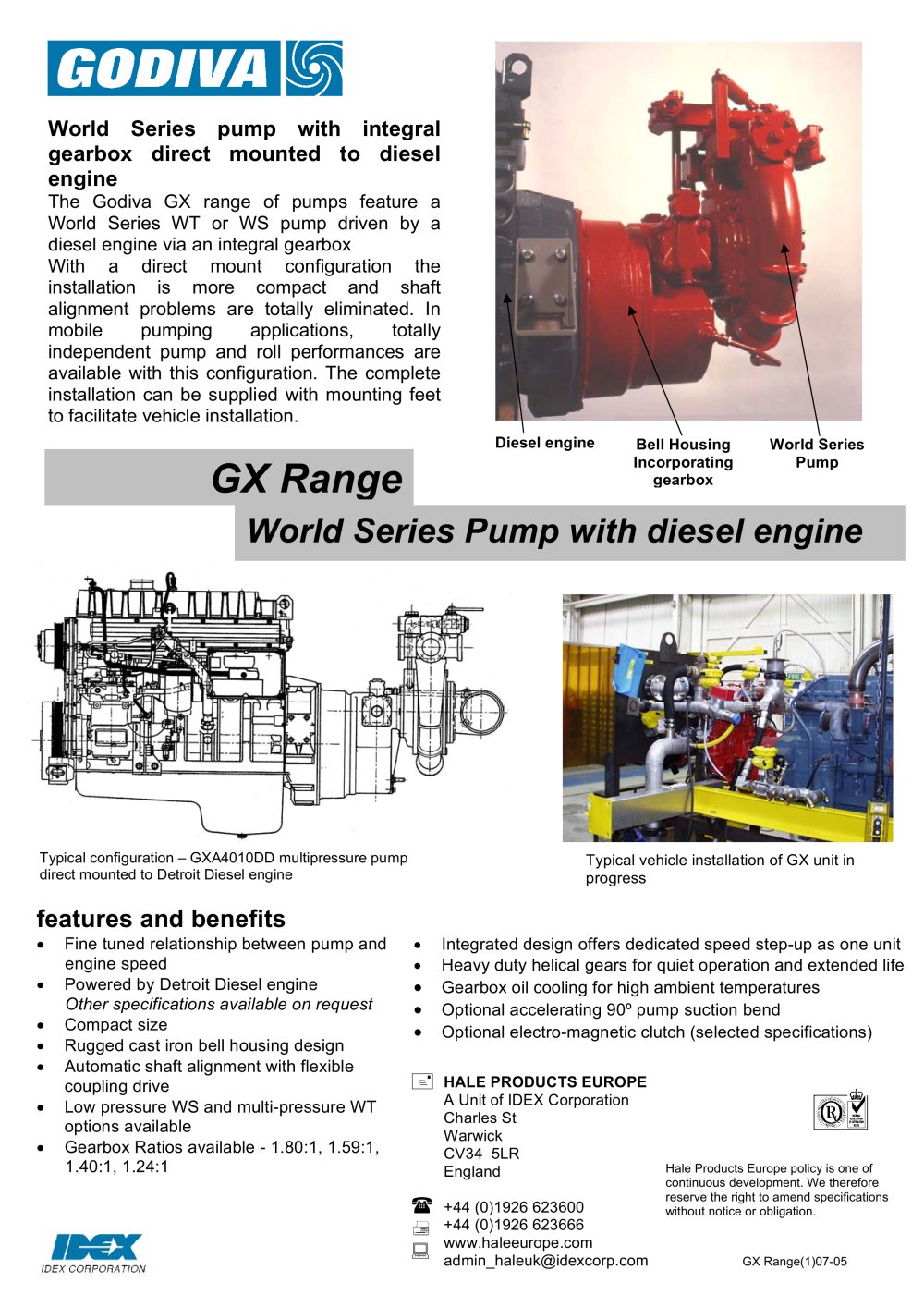

GX Range World Series Pump with diesel engine Diesel engine World Series Pump Bell Housing Incorporating gearbox World Series pump with integral gearbox direct mounted to diesel engine The Godiva GX range of pumps feature a World Series WT or WS pump driven by a diesel engine via an integral gearbox With a direct mount configuration the installation is more compact and shaft alignment problems are totally eliminated. In mobile pumping applications, totally independent pump and roll performances are available with this configuration. The complete installation can be supplied with mounting feet to facilitate vehicle installation. Typical configuration – GXA4010DD multipressure pump direct mounted to Detroit Diesel engine Typical vehicle installation of GX unit in progress features and benefits • Fine tuned relationship between pump and engine speed • Powered by Detroit Diesel engine Other specifications available on request • Compact size • Rugged cast iron bell housing design • Automatic shaft alignment with flexible coupling drive • Low pressure WS and multi-pressure WT options available • Gearbox Ratios available - 1.80:1, 1.59:1, 1.40:1, 1.24:1 • Integrated design offers dedicated speed step-up as one unit • Heavy duty helical gears for quiet operation and extended life • Gearbox oil cooling for high ambient temperatures • Optional accelerating 90º pump suction bend • Optional electro-magnetic clutch (selected specifications) .. .... .. HALE PRODUCTS EUROPE A Unit of IDEX Corporation Charles St Warwick CV34 5LR England +44 (0)1926 623600 +44 (0)1926 623666 www.haleeurope.com admin_haleuk@idexcorp.com Hale Products Europe policy is one of continuous development. We therefore reserve the right to amend specifications without notice or obligation. GX Range(1)07-05
