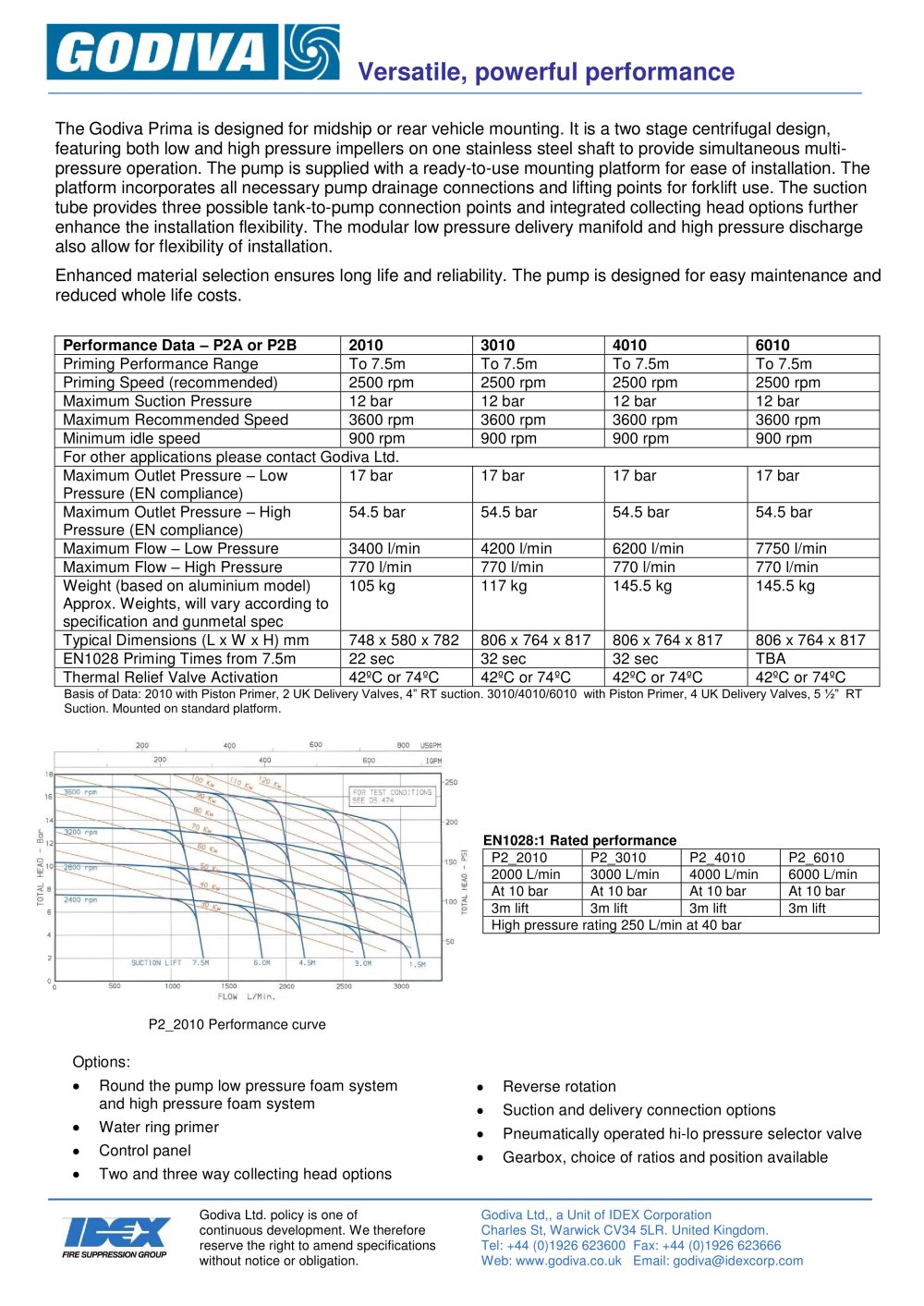

The Godiva Prima is designed for midship or rear vehicle mounting. It is a two stage centrifugal design, featuring both low and high pressure impellers on one stainless steel shaft to provide simultaneous multi-pressure operation. The pump is supplied with a ready-to-use mounting platform for ease of installation. The platform incorporates all necessary pump drainage connections and lifting points for forklift use. The suction tube provides three possible tank-to-pump connection points and integrated collecting head options further enhance the installation flexibility. The modular low pressure delivery manifold and high pressure discharge also allow for flexibility of installation. Enhanced material selection ensures long life and reliability. The pump is designed for easy maintenance and reduced whole life costs. Godiva Ltd. policy is one of continuous development. We therefore reserve the right to amend specifications without notice or obligation. Godiva Ltd,, a Unit of IDEX Corporation Charles St, Warwick CV34 5LR. United Kingdom. Tel: +44 (0)1926 623600 Fax: +44 (0)1926 623666 Web: www.godiva.co.uk Email: godiva@idexcorp.com Versatile, powerful performance Reverse rotation Suction and delivery connection options Pneumatically operated hi-lo pressure selector valve Gearbox, choice of ratios and position available Performance Data – P2A or P2B 2010 3010 4010 6010 Priming Performance Range To 7.5m To 7.5m To 7.5m To 7.5m Priming Speed (recommended) 2500 rpm 2500 rpm 2500 rpm 2500 rpm Maximum Suction Pressure 12 bar 12 bar 12 bar 12 bar Maximum Recommended Speed 3600 rpm 3600 rpm 3600 rpm 3600 rpm Minimum idle speed 900 rpm 900 rpm 900 rpm 900 rpm For other applications please contact Godiva Ltd. Maximum Outlet Pressure – Low Pressure (EN compliance) 17 bar 17 bar 17 bar 17 bar Maximum Outlet Pressure – High Pressure (EN compliance) 54.5 bar 54.5 bar 54.5 bar 54.5 bar Maximum Flow – Low Pressure 3400 l/min 4200 l/min 6200 l/min 7750 l/min Maximum Flow – High Pressure 770 l/min 770 l/min 770 l/min 770 l/min Weight (based on aluminium model) Approx. Weights, will vary according to specification and gunmetal spec 105 kg 117 kg 145.5 kg 145.5 kg Typical Dimensions (L x W x H) mm 748 x 580 x 782 806 x 764 x 817 806 x 764 x 817 806 x 764 x 817 EN1028 Priming Times from 7.5m 22 sec 32 sec 32 sec TBA Thermal Relief Valve Activation 42ºC or 74ºC 42ºC or 74ºC 42ºC or 74ºC 42ºC or 74ºC Basis of Data: 2010 with Piston Primer, 2 UK Delivery Valves, 4” RT suction. 3010/4010/6010 with Piston Primer, 4 UK Delivery Valves, 5 ½” RT Suction. Mounted on standard platform. EN1028:1 Rated performance P2_2010 P2_3010 P2_4010 P2_6010 2000 L/min 3000 L/min 4000 L/min 6000 L/min At 10 bar At 10 bar At 10 bar At 10 bar 3m lift 3m lift 3m lift 3m lift High pressure rating 250 L/min at 40 bar Options: Round the pump low pressure foam system and high pressure foam system Water ring primer Control panel Two and three way collecting head options P2_2010 Performance curve
