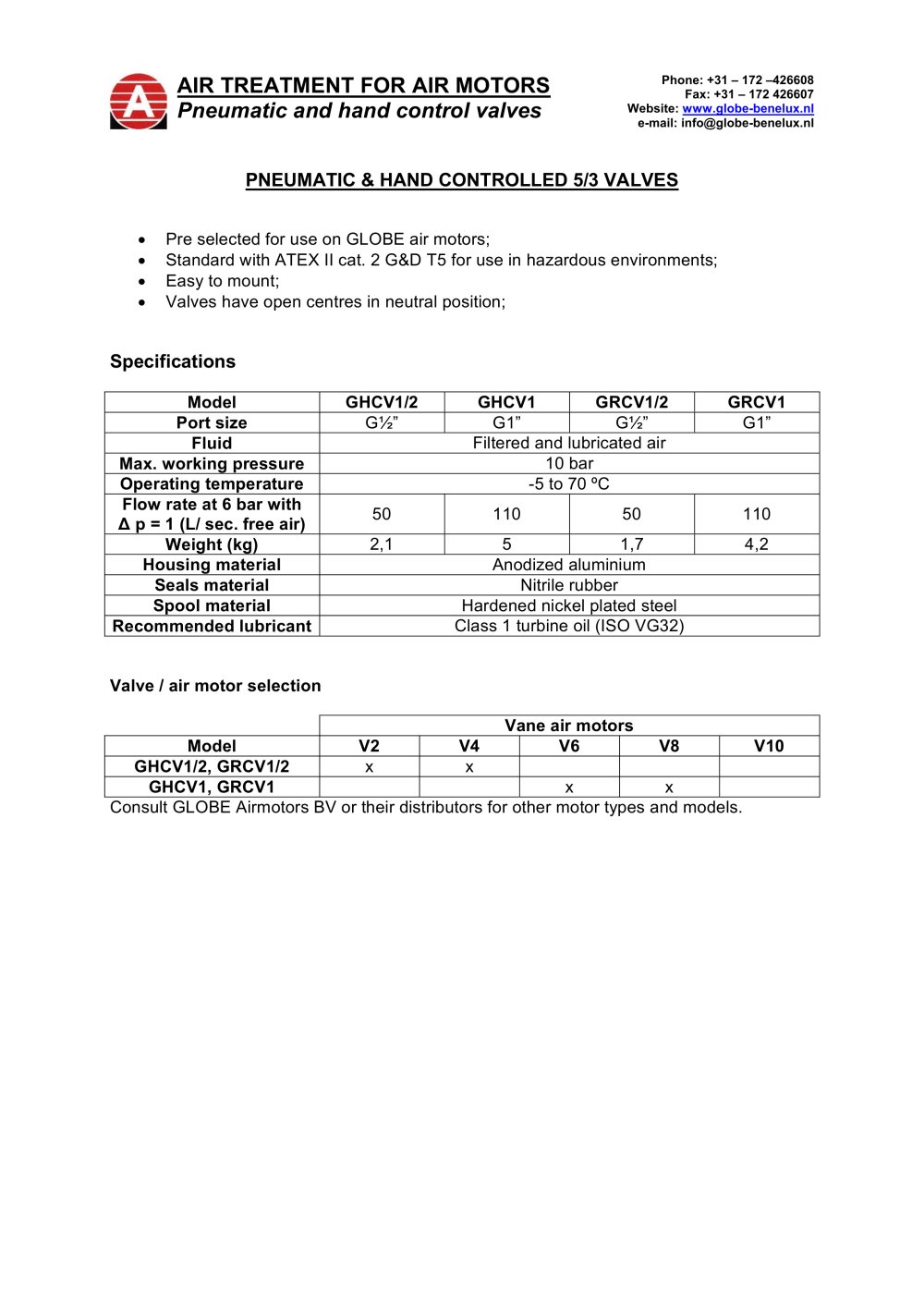

AIR TREATMENT FOR AIR MOTORS Pneumatic and hand control valves Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl PNEUMATIC & HAND CONTROLLED 5/3 VALVES • Pre selected for use on GLOBE air motors; • Standard with ATEX II cat. 2 G&D T5 for use in hazardous environments; • Easy to mount; • Valves have open centres in neutral position; Specifications Model GHCV1/2 GHCV1 GRCV1/2 GRCV1 Port size G½” G1” G½” G1” Fluid Filtered and lubricated air Max. working pressure 10 bar Operating temperature -5 to 70 ºC Flow rate at 6 bar with Ä p = 1 (L/ sec. free air) 50 110 50 110 Weight (kg) 2,1 5 1,7 4,2 Housing material Anodized aluminium Seals material Nitrile rubber Spool material Hardened nickel plated steel Recommended lubricant Class 1 turbine oil (ISO VG32) Valve / air motor selection Vane air motors Model V2 V4 V6 V8 V10 GHCV1/2, GRCV1/2 x x GHCV1, GRCV1 x x Consult GLOBE Airmotors BV or their distributors for other motor types and models.
