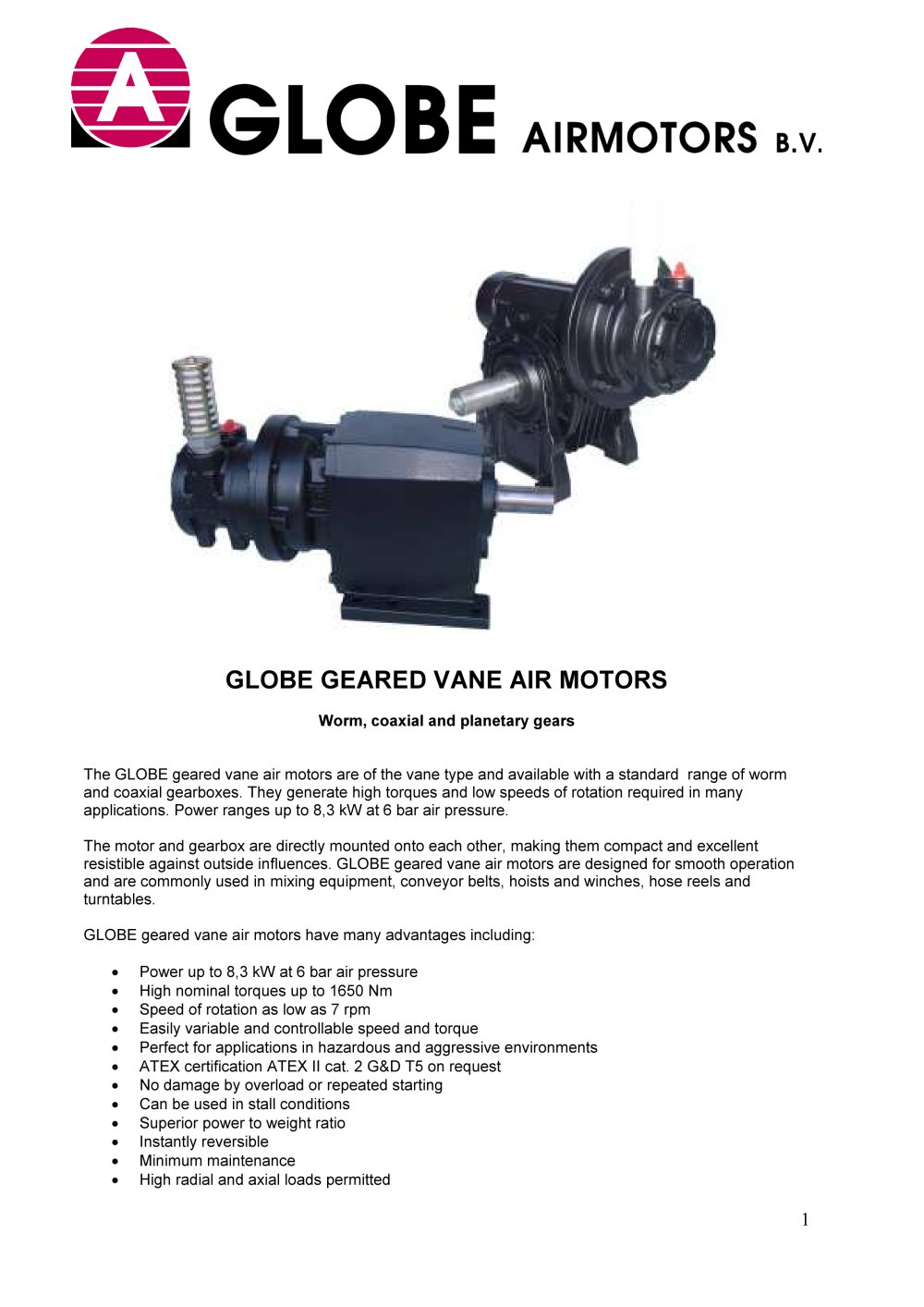

GLOBE Geared vane air motors Worm and coaxial gears Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE GEARED VANE AIR MOTORS Worm, coaxial and planetary gears The GLOBE geared vane air motors are of the vane type and available with a standard range of worm and coaxial gearboxes. They generate high torques and low speeds of rotation required in many applications. Power ranges up to 8,3 kW at 6 bar air pressure. The motor and gearbox are directly mounted onto each other, making them compact and excellent resistible against outside influences. GLOBE geared vane air motors are designed for smooth operation and are commonly used in mixing equipment, conveyor belts, hoists and winches, hose reels and turntables. GLOBE geared vane air motors have many advantages including: • • • • • • • • • • • • Power up to 8,3 kW at 6 bar air pressure High nominal torques up to 1650 Nm Speed of rotation as low as 7 rpm Easily variable and controllable speed and torque Perfect for applications in hazardous and aggressive environments ATEX certification ATEX II cat. 2 G&D T5 on request No damage by overload or repeated starting Can be used in stall conditions Superior power to weight ratio Instantly reversible Minimum maintenance High radial a

Open the catalog to page 1
GLOBE geared vane air motors - 2

GLOBE Geared vane air motors Worm and coaxial gears Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl Features of the worm, coaxial and planetary gearboxes Single-piece aluminium alloy housing Combines light weight with high tensile strength. Alloy steel worm shaft High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused, for noise reduction and enhanced efficiency. Oversized bearings For high radial and axial shock load capacity. Ideal for frequent starting and reversing applications. Premium, high...

Open the catalog to page 2
GLOBE geared vane air motors - 3

GLOBE Geared vane air motors Worm and coaxial gears Compact housing Planetary gear allows for high torque in a compact housing Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl Robust cast iron housing Foot and flange mount Both foot and flange mounts are available High axial loads Heavy duty roller bears allow for high axial loads

Open the catalog to page 3
GLOBE geared vane air motors - 4

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Performances GLOBE vane air motors with worm gears Ordering code flange model Ordering code foot model Weight flange model (Kg) Weight foot model (Kg) GLOBE V10 + worm gear VS10DW85FG7 VS10DW110FG16 VS10DW110FG23 * Power and nominal torque at 6 bar and motor input speed of 3000 rpm (V4, V6, V8) and 2400 rpm (V10). ** In applications where the motor input speed exceeds 2200 rpm, only intermittent use is tolerated.

Open the catalog to page 4
GLOBE geared vane air motors - 5

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Dimensions GLOBE vane air motors with worm gears – flange model

Open the catalog to page 5
GLOBE geared vane air motors - 6

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Dimensions GLOBE vane air motors with worm gears – foot model

Open the catalog to page 6
GLOBE geared vane air motors - 7

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Dimensions output shaft for worm gears (optional) Single output shaft Double output shaft

Open the catalog to page 7
GLOBE geared vane air motors - 8

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Performances GLOBE VS4C air motor with worm gear TORQUE VS. SPEED Torque - Nm 413 STARTING TORQUE VS. PRESSURE Maximum starting torque Minumum starting torque

Open the catalog to page 8
GLOBE geared vane air motors - 9

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Performances GLOBE VS6C air motor with worm gear TORQUE VS. SPEED Torque - Nm 847 STARTING TORQUE VS. PRESSURE Minumum starting torque Maximum starting torque POWER VS. SPEED Power - kW 2,88 3,00 3,04 3,28 3,40

Open the catalog to page 9
GLOBE geared vane air motors - 10

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Performances GLOBE VS8C air motor with worm gear TORQUE VS. SPEED Torque - Nm 1137 STARTING TORQUE VS. PRESSURE Maximum starting torque Minumum starting torque POWER VS. SPEED Power - kW 4,44 4,74 4,86 5,16 5,40 7 bar

Open the catalog to page 10
GLOBE geared vane air motors - 11

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Performances GLOBE VS10C air motor with worm gear TORQUE VS. SPEED Torque Nm 989 STARTING TORQUE VS. PRESSURE Starting torque Nm 814 Maximum starting torque Minumum starting torque POWER VS. SPEED Power - kW 8,60 8,70

Open the catalog to page 11
GLOBE geared vane air motors - 12

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Performance GLOBE vane air motors with coaxial gears Ordering code flange model Ordering code foot model Weight flange model (Kg) Weight foot model (Kg) GLOBE V8 + coaxial gear VS8DA602FG10 VS8DA602FG20 VS8DA602FG30 GLOBE V8 + planetary gear VS8EPFG300FG42 VS8EPFG300FG52 * Power and nominal torque at 6 bar and motor input speed of 3000 rpm (V4, V6, V8) and 2400 rpm (V10). ** In applications where the motor input speed exceeds 2200...

Open the catalog to page 12
GLOBE geared vane air motors - 13

Phone: +31 – 172 –426608 Fax: +31 – 172 426607 Website: www.globe-benelux.nl e-mail: info@globe-benelux.nl GLOBE Geared vane air motors Worm and coaxial gears Dimensions GLOBE vane air motors with coaxial gears – flange model

Open the catalog to page 13
