GLOBE Geared vane air motors

Phone: +31 – 172 –426608Fax: +31 – 172 426607Website: www.globe-benelux.nl

Worm and coaxial gears

e-mail: info@globe-benelux.nl

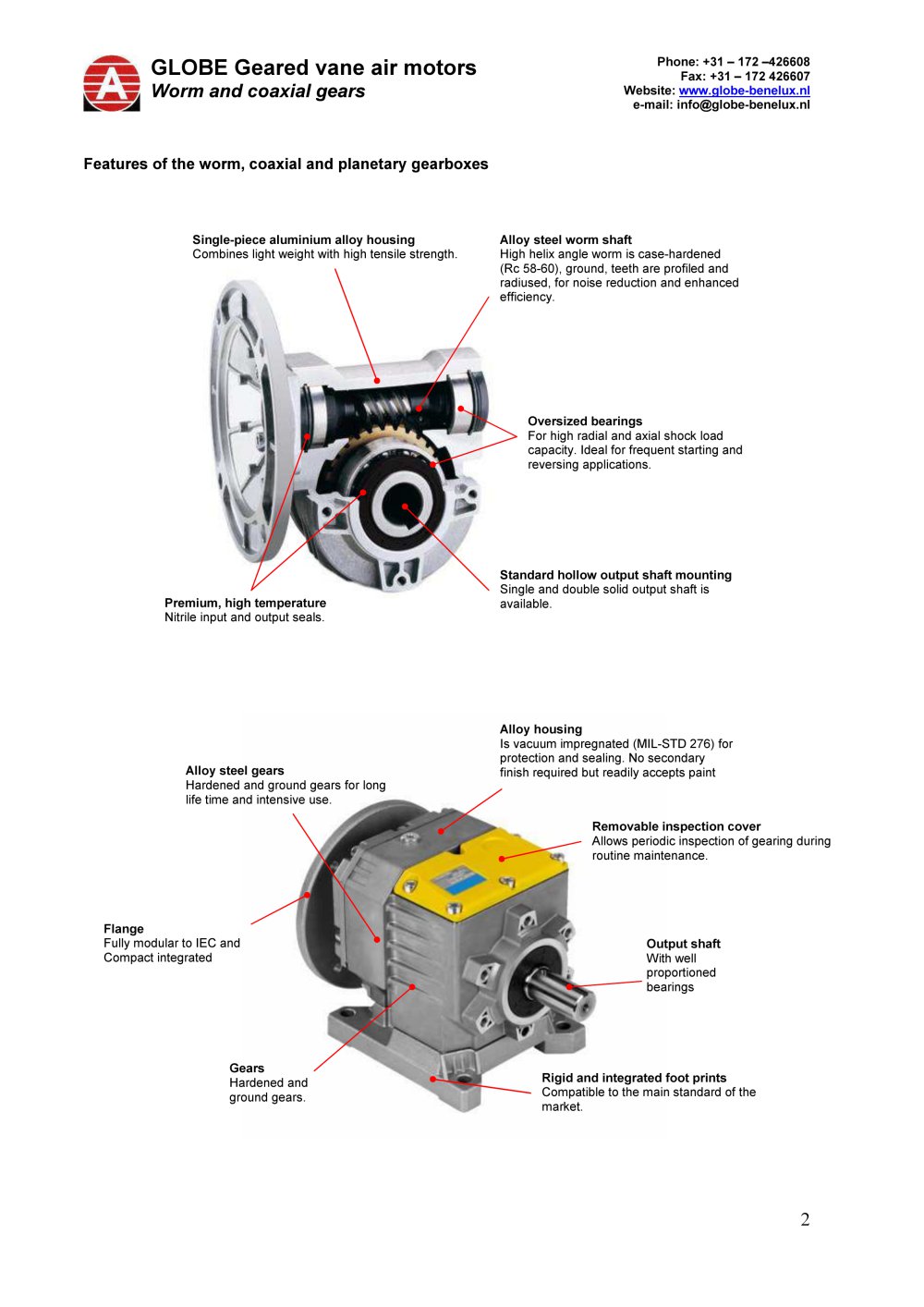

Features of the worm and coaxial gearboxes

Single-piece aluminium alloy housing Alloy steel worm shaft Combines light weight with high tensile strength. High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused, for noise reduction and enhanced efficiency. Oversized bearings For high radial and axial shock load capacity. Ideal for frequent starting and reversing applications. Standard hollow output shaft mounting Single and double solid output shaft is available. Premium, high temperature Nitrile input and output seals. Alloy steel gears Hardened and ground gears for long life time and intensive use. Removable inspection cover A llows periodic inspection of gearing during routine maintenance. Rigid and integrated foot prints Compatible to the main standard of the market. Robust cast iron housing
