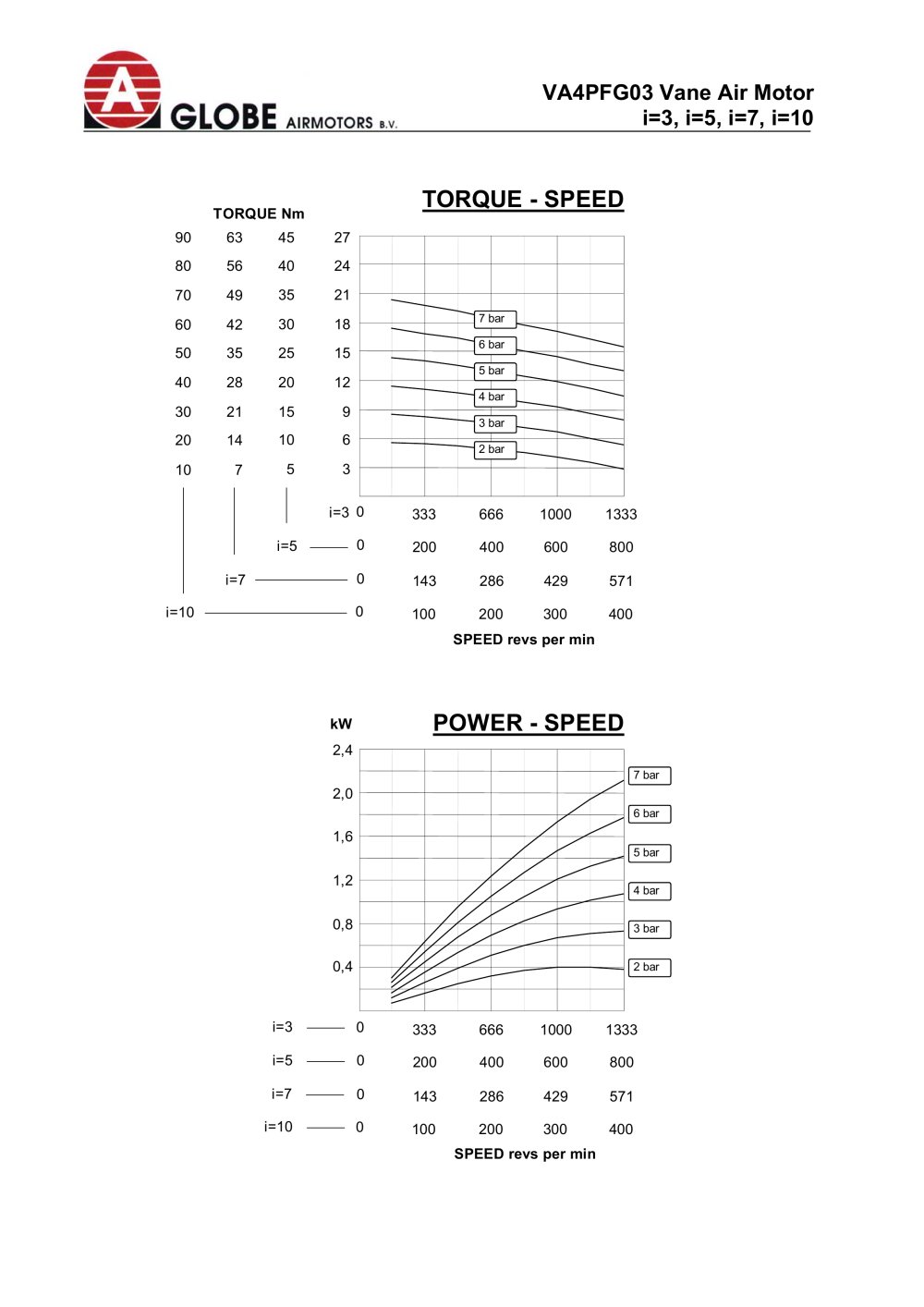

VA4PFG03 Vane Air Motor i=3, i=5, i=7, i=10

TORQUE - SPEED

TORQUE Nm


	90	63	45	27
	80	56	40	24
	70	49	35	21
	60	42	30	18
	50	35	25	15
	40	28	20	12
	30	21	15	9
	20	14	10	6
	10	7	5	3


	0	333	666	1000	1333
	0	200	400	600	800
	0	143	286	429	571
	0	100	200	300	400
			SPEED	revs per min

i=5

i=7

i=10

POWER - SPEED

kW

2,4

2,0 1,6 1,2 0,8

0,4

7 bar

6 bar

5 bar

4 bar

3 bar

2 bar


	333	666	1000	1333
	200	400	600	800
	143	286	429	571
	100	200	300	400
		SPEED	revs per min

i=3 i=5 i=7 i=10

0 0 0 0
