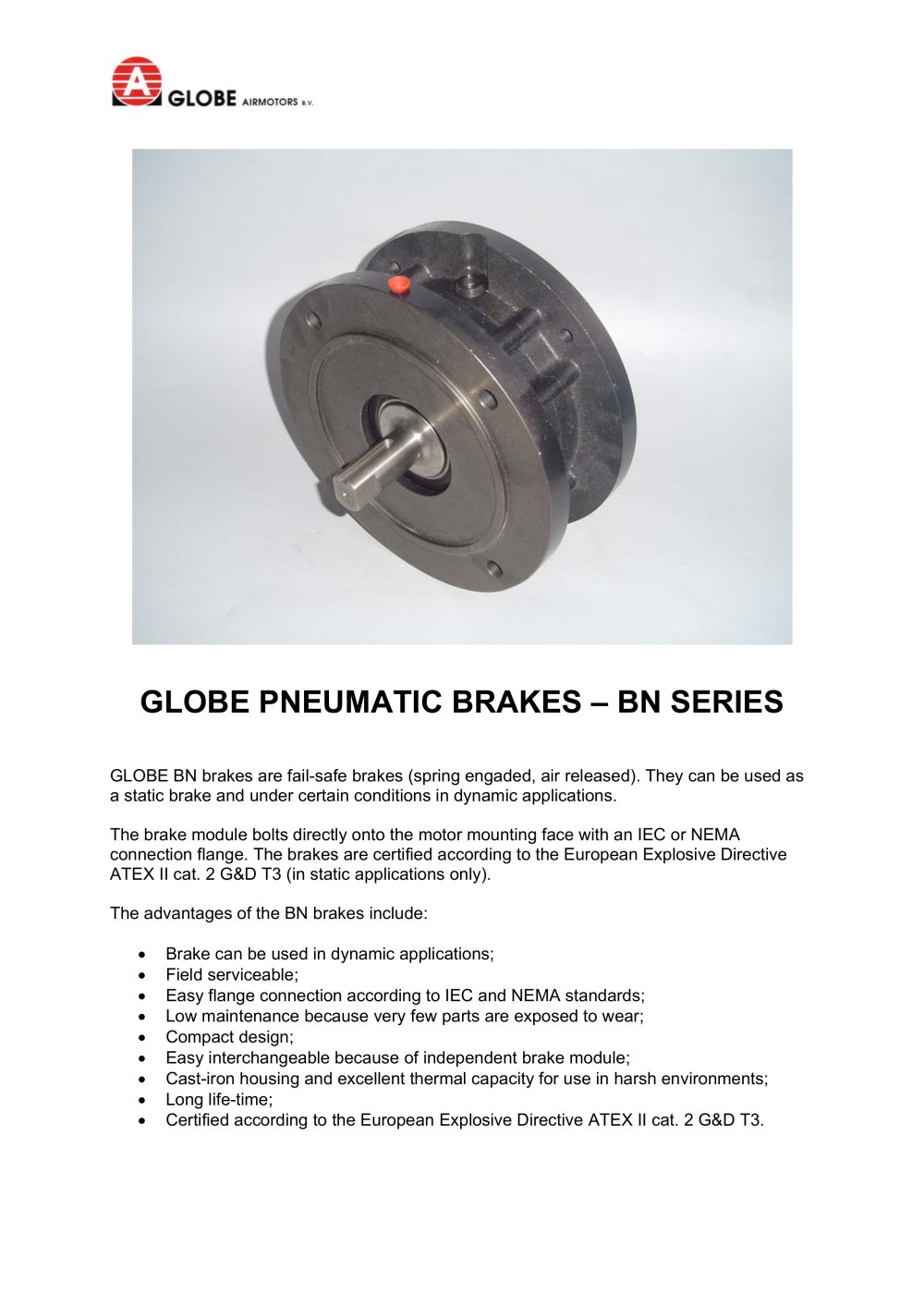

GLOBE PNEUMATIC BRAKES – BN SERIES GLOBE BN brakes are fail-safe brakes (spring engaded, air released). They can be used as a static brake and under certain conditions in dynamic applications. The brake module bolts directly onto the motor mounting face with an IEC or NEMA connection flange. The brakes are certified according to the European Explosive Directive ATEX II cat. 2 G&D T3 (in static applications only). The advantages of the BN brakes include: • • • • • • • • • Brake can be used in dynamic applications; Field serviceable; Easy flange connection according to IEC and NEMA standards; Low maintenance because very few parts are exposed to wear; Compact design; Easy interchangeable because of independent brake module; Cast-iron housing and excellent thermal capacity for use in harsh environments; Long life-time; Certified according to the European Explosive Directive ATEX

Open the catalog to page 1

GLOBE PNEUMATIC BRAKES - BN SERIES - IEC mounting Brake type Flange type Holding torque Release pressure GLOBE Airmotors B.V. Boerhaaveweg 9-11 2408 AD Alphen aan de Rijn Holland tel: (+31) 0172 – 426608 fax: (+31) 0172 – 426607 website: www.globe-benelux.nl e-mail:info@globe-benelux.nl

Open the catalog to page 2

GLOBE PNEUMATIC BRAKES – BN SERIES installation options The brake releases with pneumatic pressure. When the pneumatic pressure drops below a pre-set air pressure the brake engages. CIRCUIT (A): installation without control valve. The shuttle valve allows brake operation for dual rotation. CIRCUIT (B): Installation with hand control valve (HCV). The HCV controls the rotation direction of the output shaft. The shuttle valve allows brake operation for dual rotation. CIRCUIT (C): Installation with remote controlled valve (RCV). The RCV makes it possible to change the rotation direction of the...
