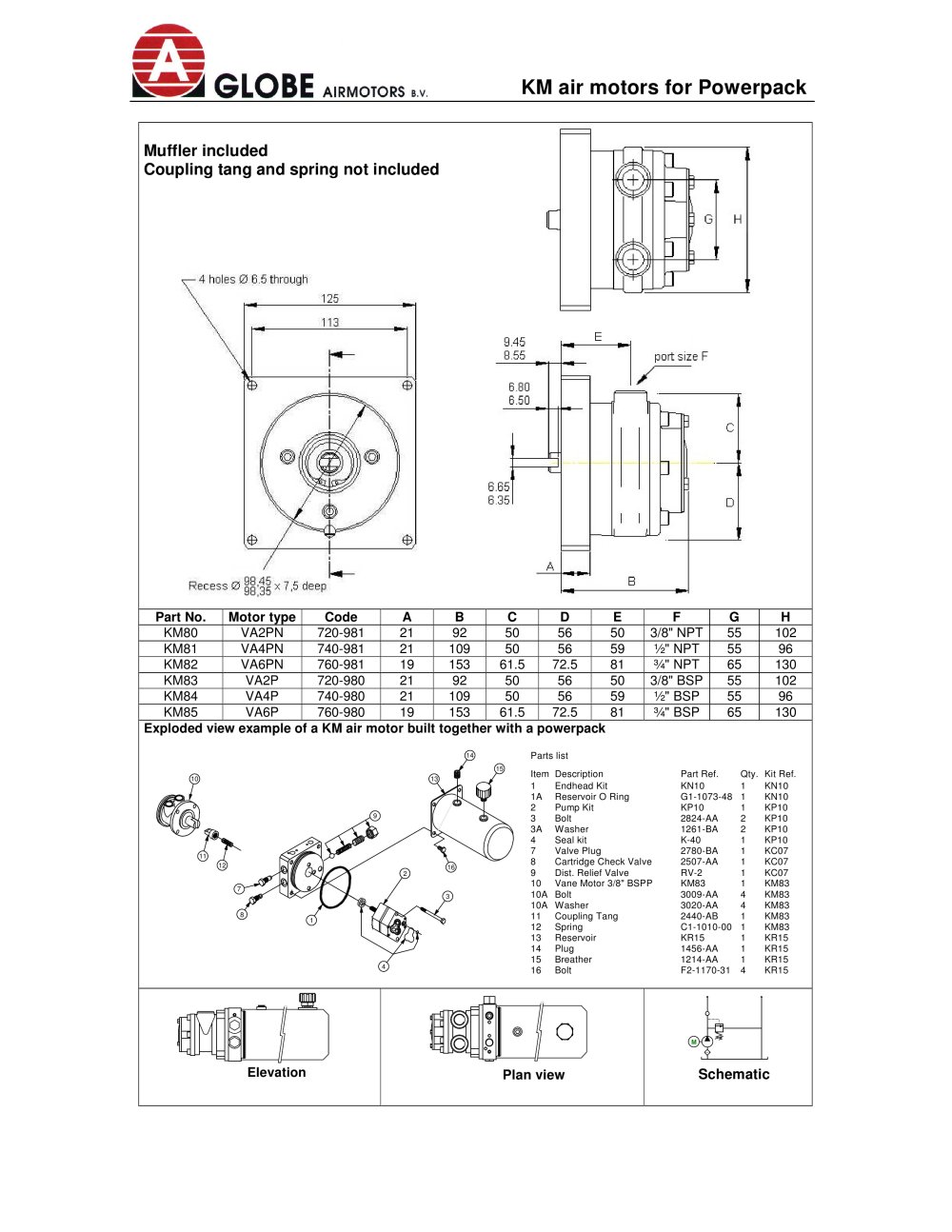

KM air motors for Powerpack Muffler included Coupling tang and spring not included Part No. Motor type Code A B C D E F G H KM80 VA2PN 720-981 21 92 50 56 50 3/8" NPT 55 102 KM81 VA4PN 740-981 21 109 50 56 59 ½" NPT 55 96 KM82 VA6PN 760-981 19 153 61.5 72.5 81 ¾" NPT 65 130 KM83 VA2P 720-980 21 92 50 56 50 3/8" BSP 55 102 KM84 VA4P 740-980 21 109 50 56 59 ½" BSP 55 96 KM85 VA6P 760-980 19 153 61.5 72.5 81 ¾" BSP 65 130 Exploded view example of a KM air motor built together with a powerpack 1 2 4 3 7 8 9 10 11 12 14 15 16 13 Parts list Item Description Part Ref. Qty. Kit Ref. 1 Endhead Kit KN10 1 KN10 1A Reservoir O Ring G1-1073-48 1 KN10 2 Pump Kit KP10 1 KP10 3 Bolt 2824-AA 2 KP10 3A Washer 1261-BA 2 KP10 4 Seal kit K-40 1 KP10 7 Valve Plug 2780-BA 1 KC07 8 Cartridge Check Valve 2507-AA 1 KC07 9 Dist. Relief Valve RV-2 1 KC07 10 Vane Motor 3/8" BSPP KM83 1 KM83 10A Bolt 3009-AA 4 KM83 10A Washer 3020-AA 4 KM83 11 Coupling Tang 2440-AB 1 KM83 12 Spring C1-1010-00 1 KM83 13 Reservoir KR15 1 KR15 14 Plug 1456-AA 1 KR15 15 Breather 1214-AA 1 KR15 16 Bolt F2-1170-31 4 KR15 Elevation Plan view M Schematic
