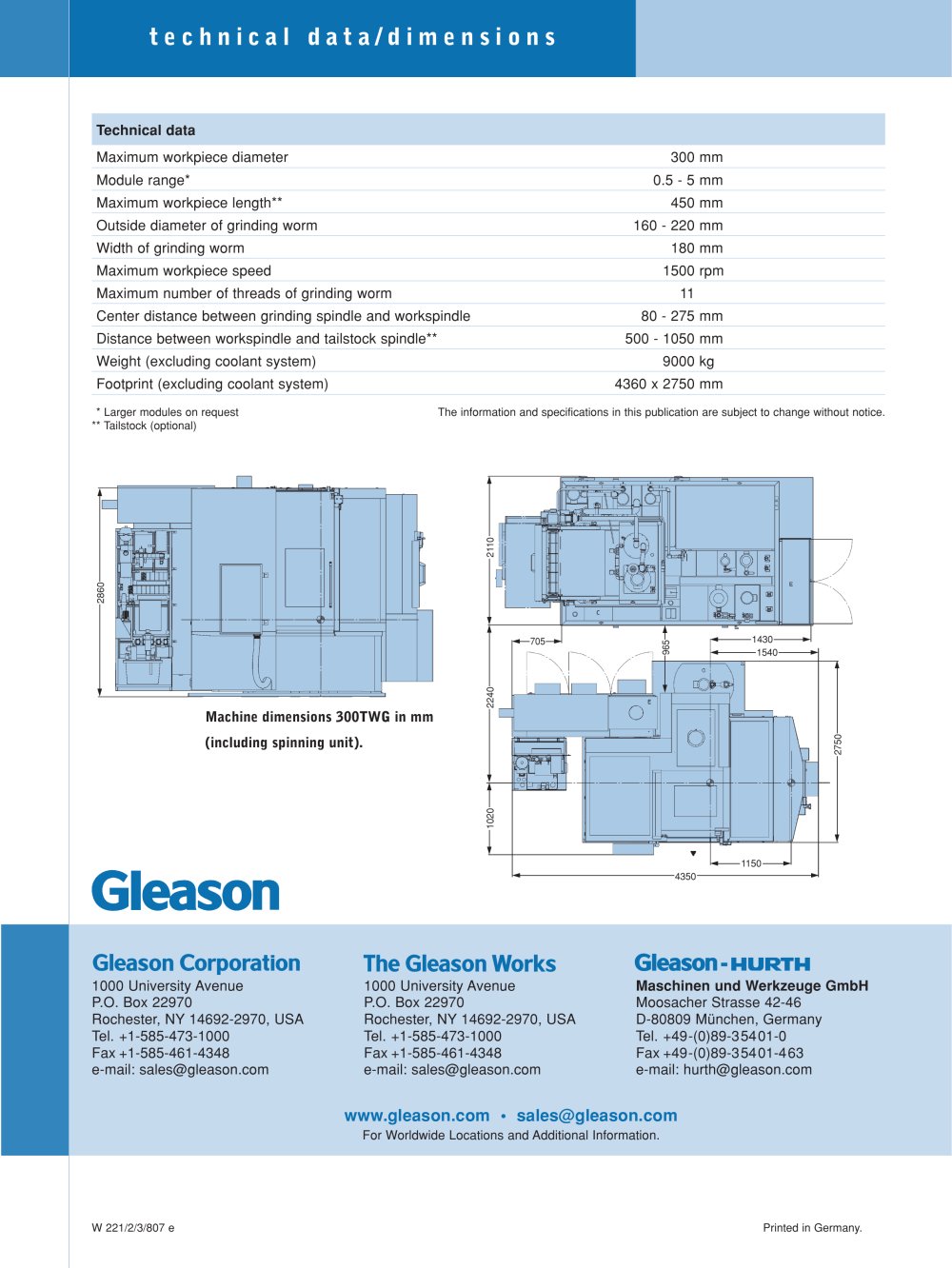

technical data/dimensions


	Technical data
	Maximum workpiece diameter	300 mm
	Module range*	0.5 - 5 mm
	Maximum workpiece length**	450 mm
	Outside diameter of grinding worm	160 - 220 mm
	Width of grinding worm	180 mm
	Maximum workpiece speed	1500 rpm
	Maximum number of threads of grinding worm	11
	Center distance between grinding spindle and workspindle	80 - 275 mm
	Distance between workspindle and tailstock spindle**	500 - 1050 mm
	Weight (excluding coolant system)	9000 kg
	Footprint (excluding coolant system)	4360 x 2750 mm

Larger modules on request The information and specifications in this publication are subject to change without notice.
