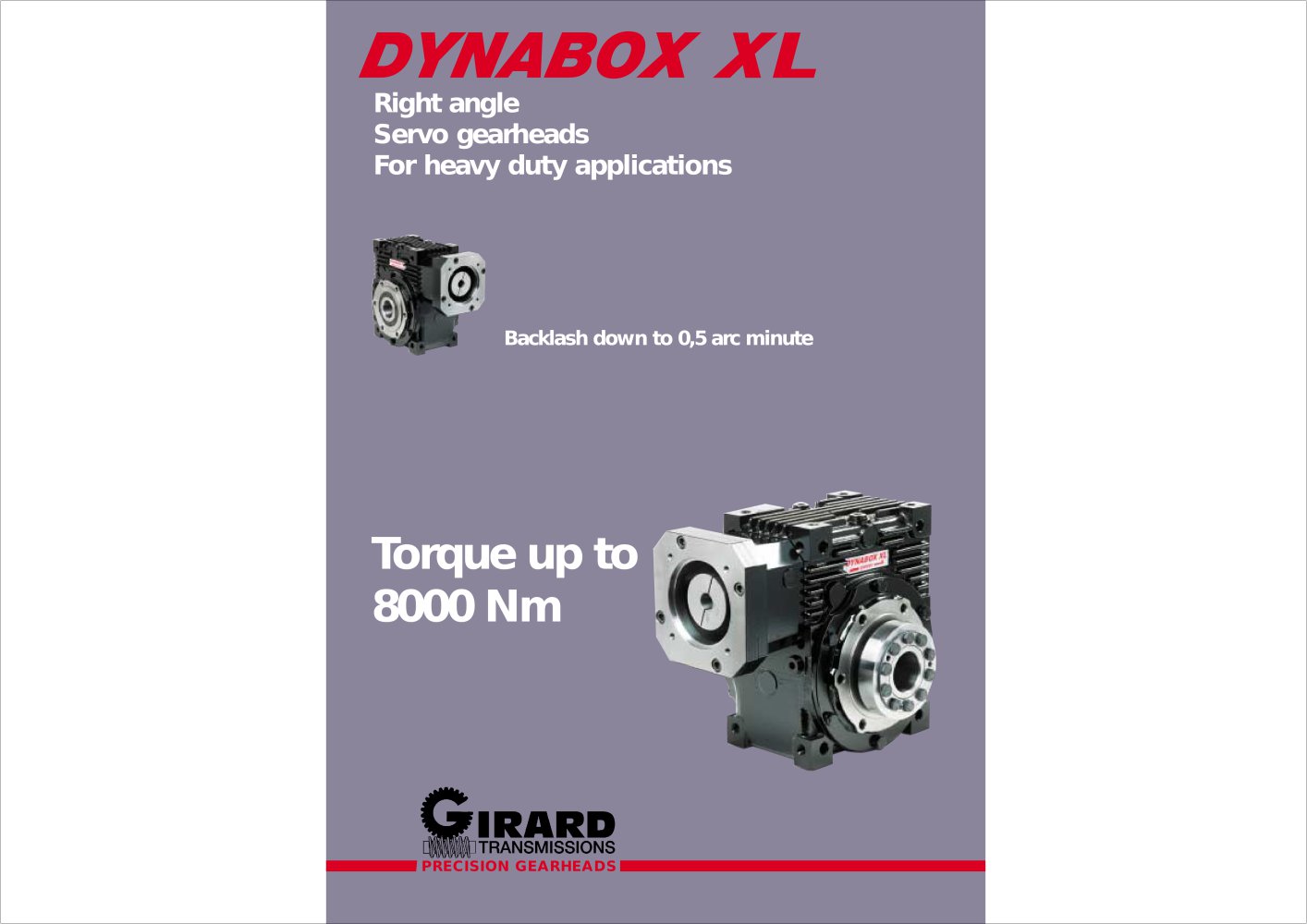

DYNABOX XL
9Pages

January 2004 PRECISION GEARHEADS >

(fixed) 6 1 > Computer optimized gear contact pattern : less stress, longer life. 2 > Keyless connection: reliable and backlash free connection with shrink disc. 4 3 3 > Universal servo-kit: including high torsional stiffness coupling + flange. 4 > Oversized taper roller bearings: provide very high permissible loads. 2 > Constant input bearings preload design: 2 taper roller bearings + 1 floating ballbearings allowing temperature variations with same preload : higher input permissible speeds, longer life. 5 > Centrifugally cast wheel ring: superior shock and wear resistance. 6 > Cast iron...

Use following codification to order your DYNABOX XL. When DYNABOX XL servo gearheads cannot be used,the DYNASET XL servo gearsets, to be mounted in cus-tomed housing, are an interesting alternative.Their performance are comparable to complete reducers,assuming following recommendations : DYNABOX XL > AMServo coupling (page 10)BMServo flange (pages 10 and 11) FShrink disc for hollow shaft Wormshaft: housing and bearing design should allowan axial shifting, necessary for backlash adjustment. The total adjustment range is obtained with a permissible dis- placement equal to W, as per page 14....
