WindSonic

INSTRUMENTS

At last, a real low cost alternative to conventional cup/

vane/propeller wind sensors in a single unit - WindSonic from Gill Instruments. Utilising our expertise as the world's leading

sonic manufacturer, WindSonic is based on our existing, highly successful, proven ultrasonic technology. Ideal for applications

that demand economic wind sensing, WindSonic is suitable for land-based and marine environments.

A lightweight unit, WindSonic is of a robust, high strength

construction designed to withstand installation and use with no fear of the damage commonly experienced with more fragile cups, vanes or propellers. Without the need for expensive on-site calibration or maintenance and with a corrosion free exterior, WindSonic is a true fit and forget unit.

The flexible design enables you to easily configure WindSonic to deliver

the information you require. By using the software provided it is

possible to select the output rate and choose the units of measurement

that suit your application. Ensuring accuracy and reliability, WindSonic automatically transmits an anemometer status code with each output to indicate its operating status. Available in four options, providing a

number of different digital and analogue outputs.

Maintenance free, quick and easy to install, WindSonic is designed to

be mounted using a standard pole fitting and comes complete with all screw fittings, a mating marine grade connector and comprehensive

user manual. The unit is supplied with a 2 year warranty as standard.

Key Features

■ Low Start Speed

■ Corrosion Free

■ Low Power I No Calibration Required I Robust Construction

■ True 0-359° Operation (No dead

■ band)

■ Wind Speed & Direction from a Single Unit Available in Black or White

Specification


	Wind Speed
	Range	0 - 60 m/s (116 knots)
	Accuracy	±2% @ 12 m/s
	Resolution	0.01 m/s (0.02 knots)
	Response Time	0.25 seconds
	Threshold	0.01 m/s
	Direction
	Range	0 - 359° (No dead band)
	Accuracy	±3° @ 12 m/s
	Resolution	1°
	Response Time	0.25 seconds
	Measurement
	Output	0.25, 0.5, 1, 2 or 4 outputs per second
	Parameters	Wind Speed & Direction or U and V (vectors)
	Units of Measure	m/s, knots, mph, kph, ft/min
	Outputs
	Option 1	RS232 + NMEA*
	Option 2	RS232 + RS422 + RS485 + NMEA*
	Option 3	RS232 + RS422 + RS485 + NMEA* + 0.5V or, 0-20mA or 4-20mA
	Option 4	SDI-12 (refer to manual for technical specification)
	Baud Rate	2400 to 38400
	Anemometer Status	Supplied as part of standard message

Power Requirement


	Anemometer	5-30V dc Option 1 & 2
		7-30V dc Option 3
		9-30V dc Option 4
		From 9mA @ 12V
		Start up time < 5 seconds
	MTBF
		15 years
	Mechanical
	External Construction	LURAN S KR 2861/1C ASA/PC
	Size	142mm x 160mm
	Weight	0.5kg
	Environmental
	Protection Class	IP65
	OperatingTemperature	-35°C to +70°C
	Storage Temperature	-40°C to +80°C
	Operating Humidity	< 5% to 100% RH
	EMC	EN 61326: 1998
	Warranty
		2 years

Optional Factory Calibration

Traceable to National Standards

Accessories


	Pipe Mounting	44.45mm (1.75 in) diameter
	Wind Software	Display / Logging**
	Cables	Available to match output options
	Display	See Gill Display datasheet

* NMEA 0183

** Download software free from www.gill.co.uk

Wind Speed & Direction Sensor

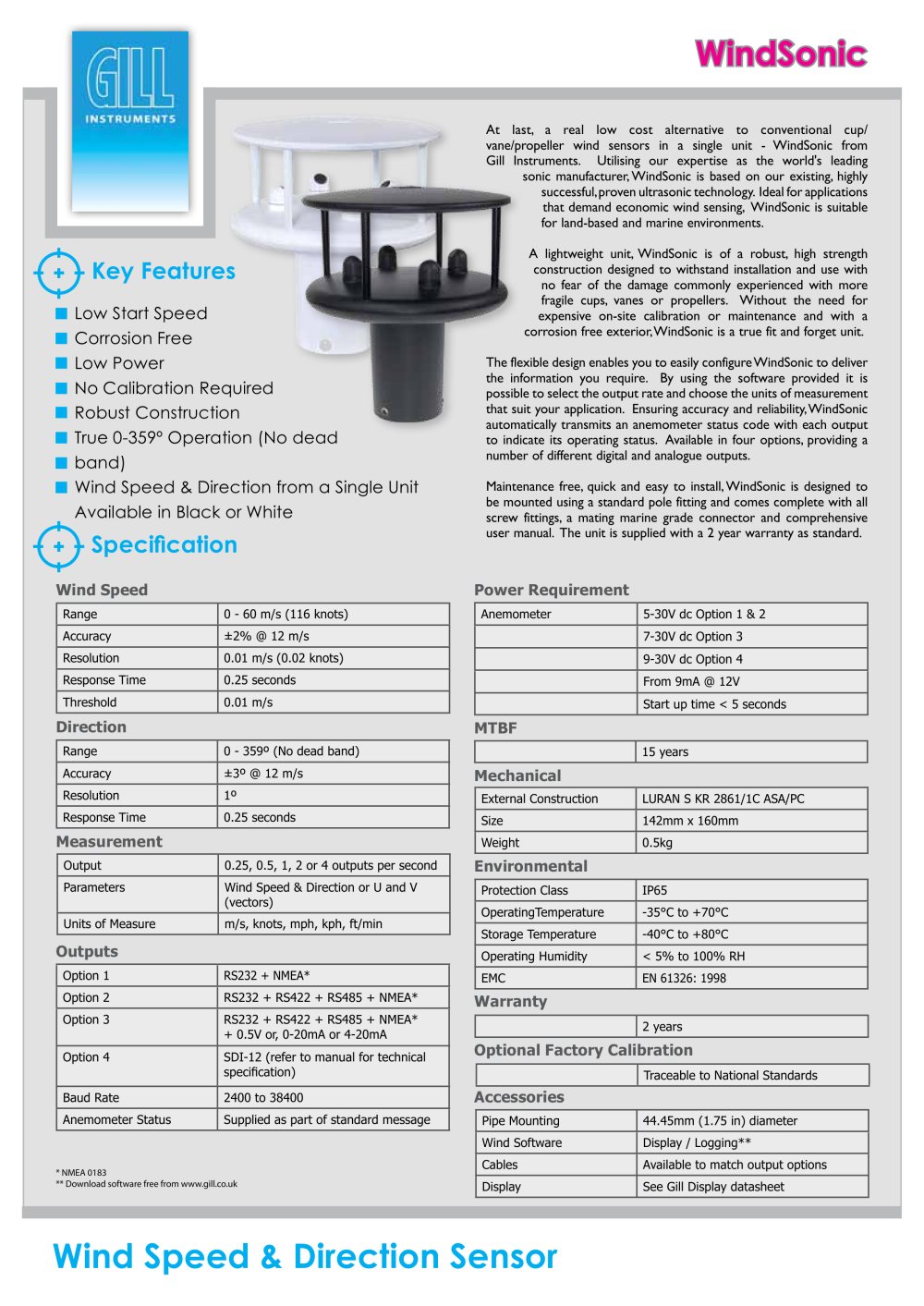

WindSonic - Wind Speed and Direction Sensor - Gill instruments - #1
