FREEZE RESISTANT EMERGENCY SHOWER - Gia industri ab - #1

Text version of the page

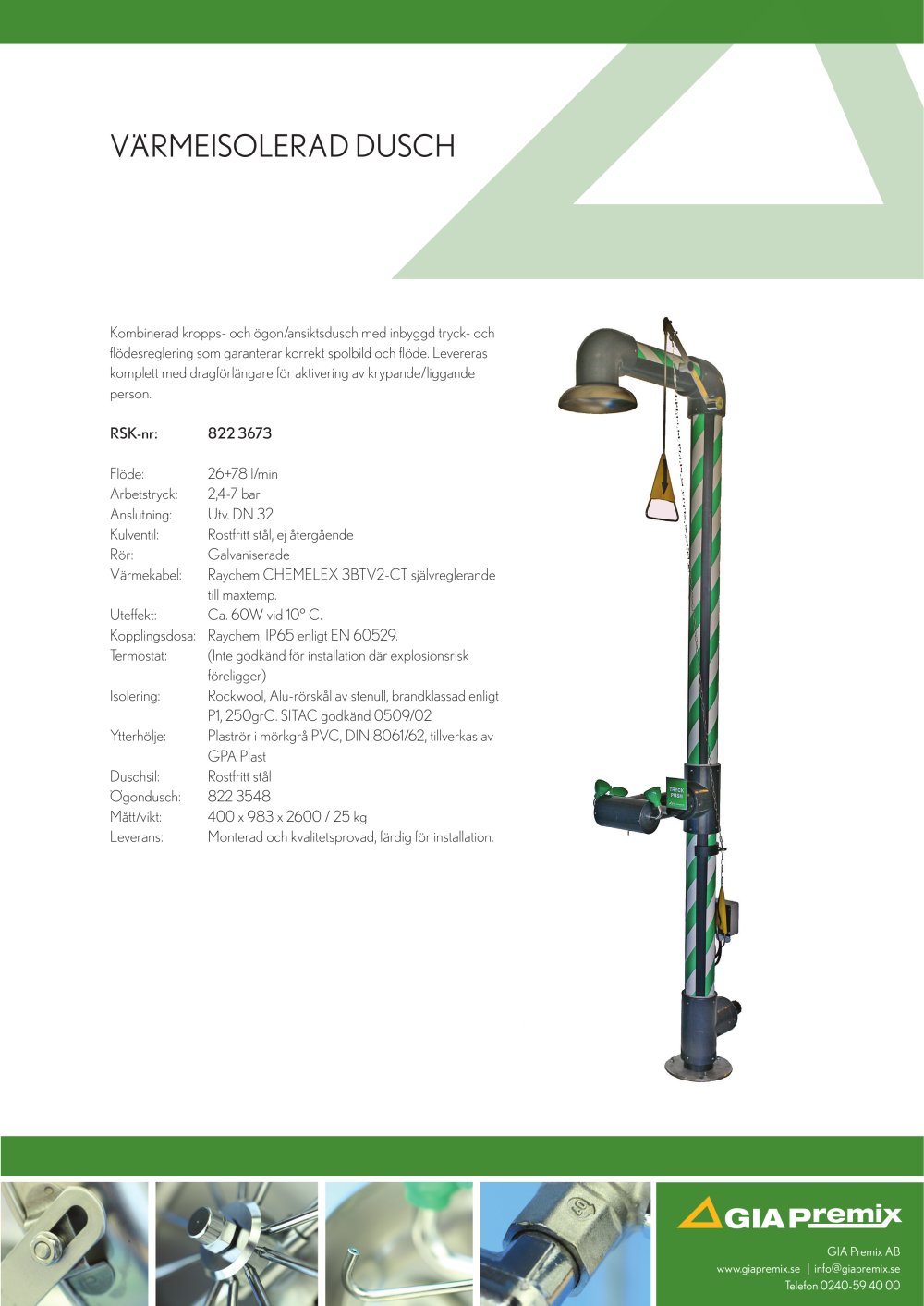

THERMOSTAT REGULATED, CABLE HEATED AND FREEZE RESISTANT EMERGENCY SHOWER AND EYE / FACE WASH FOR OUTDOOR USE. Model: 3673 Installation: Floor mounted shower and eyeface wash Supply: 1 1/4" BSP Shower head: Stainless steel Valves: Stainless steel Piping: Hot dip galvanized steel pipes Flow rate: 78 litres / min Thermostat / junction box: Raychem, IP65 Heating cable: Reliable self-regulating heat cable. Raychem CHEMELEX 3BTV2-CT Insulation: Glass Wool, Isover AluComfort® Euroclass A (A1 & A2 s1d0) Jacket: Grey PVC plastic Dimensions / weight: 400 x 983 x 2600 / 25 kg A fully assembled, ready to install, cable traced, freeze resistant unit with bottom supply. 9" floor flange Activation: Rigid stainless steel pull rod operates a stay open stainless steel ball valve. EYE / FACE WASH WITH AUTOMATIC PRESSURE COMPENSATION DEVICES Stream control: Steady water flow under varying pressures assured with automatic pressure compensation devices. Head: Twin ABS plastic eye/face wash heads with integral flip top dust covers. Flow rate: 26 litres / min Activation: Stainless steel push flag operates a stay open stainless steel ball valve. APPROVAL / CERTIFICATION: • SS-EN 15154-1 & 2:2006 • ANSI Z358.1 2004 Head Office: Grängesberg Bransch Office: Stockholm GIA Premix AB Box 59 SE-772 22 GRÄNGESBERG Sickla Industriväg 7 SE-131 34 NACKA info@giapremix.se www.giapremix.se Tel: +46 240-797 00 Fax. +46 240-797 25 Tel: +46 240-797 00 Fax. +46 240-797 25 SE
