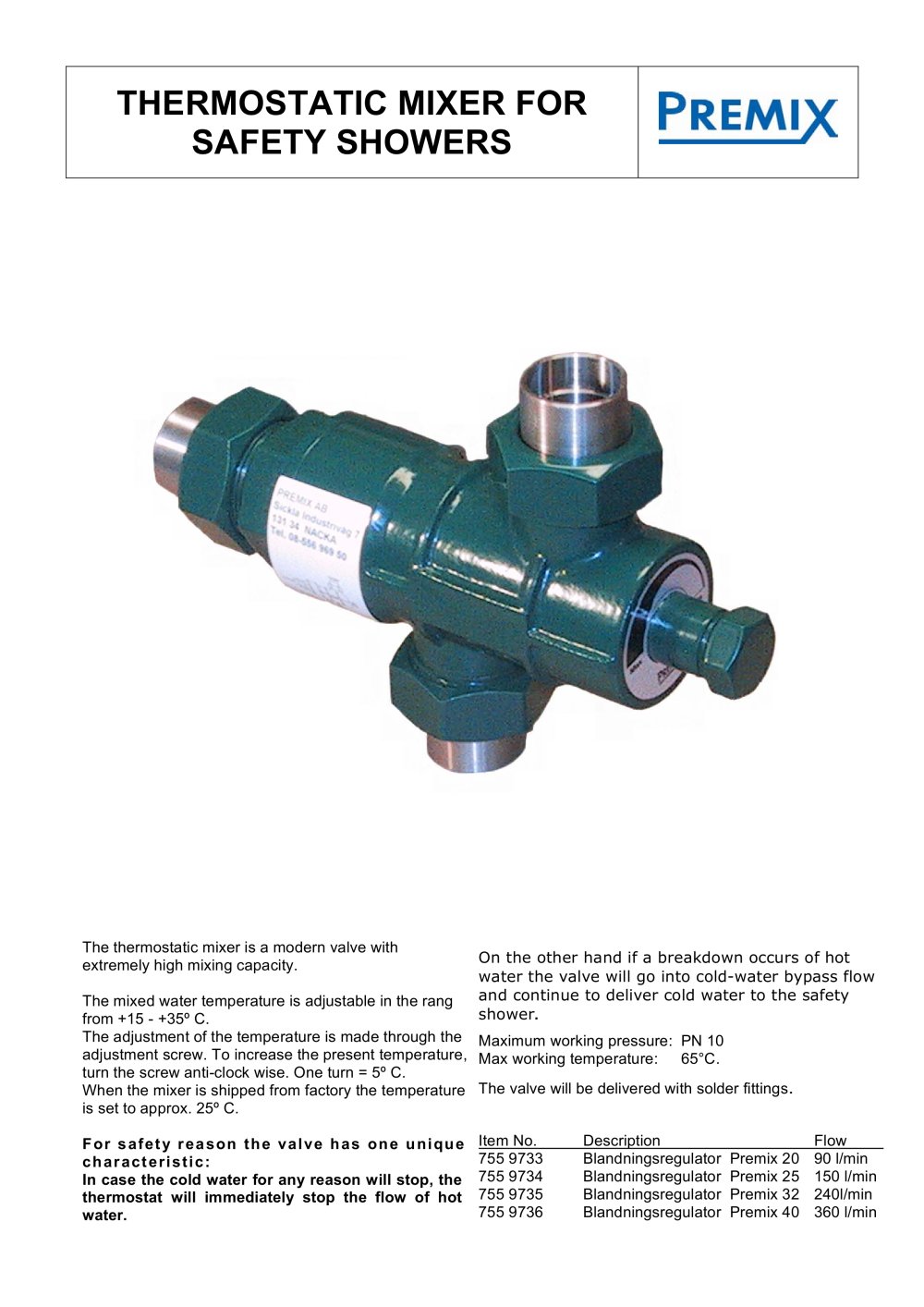

THERMOSTATIC MIXER FOR SAFETY SHOWERS

The thermostatic mixer is a modern valve with extremely high mixing capacity. The mixed water temperature is adjustable in the rang from +15 - +35º C. The adjustment of the temperature is made through the adjustment screw. To increase the present temperature, turn the screw anti-clock wise. One turn = 5º C. When the mixer is shipped from factory the temperature is set to approx. 25º C. For safety reason the valve has one unique characteristic: In case the cold water for any reason will stop, the thermostat will immediately stop the flow of hot water. On the other hand if a breakdown occurs of hot water the valve will go into cold-water bypass flow and continue to deliver cold water to the safety shower . Maximum working pressure: PN 10 Max working temperature: 65°C. The valve will be delivered with solder fittings

.

Item No. Description Flow 755 9733 Blandningsregulator Premix 20 90 l/min 755 9734 Blandningsregulator Premix 25 150 l/min 755 9735 Blandningsregulator Premix 32 240l/min 755 9736 Blandningsregulator Premix 40 360 l/min
