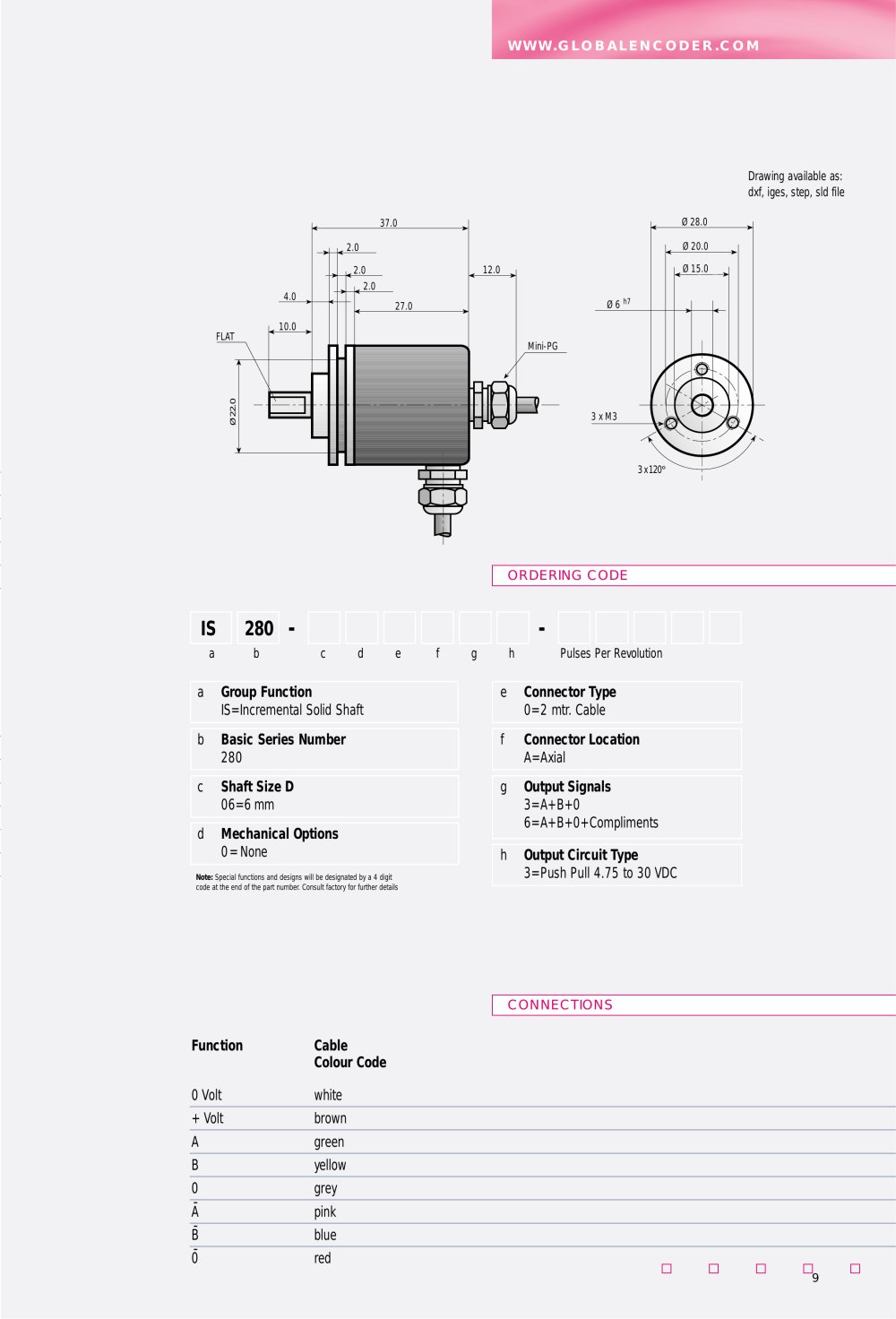

WWW.GLOBALENCODER.COM Drawing available as:dxf,iges,step,sld file 37.04.02.012.0 2.02.0 27.0 Ø 6Ø 15.0Ø 20.0Ø 28.0 h7 10.0 FLAT Mini-PG Ø 22.0 3 x M3 3 x 120 ° ORDERING CODE

IS 280

- -

a b c d e f g h Pulses Per Revolution a Group Function Connector Type IS=Incremental Solid Shaftb 0=2 mtr.Cable Basic Series Number f Connector Location 280c A=Axial Shaft Size D g Output Signals 06=6mm 3=A+B+0 6=A+B+0+Compliments d Mechanical Options 0=None e h Output Circuit Type
Note: Special functions and designs will be designated by a 4 digit code at the end of the part number.Consult factory for further details 3=Push Pull 4.75 to 30 VDC CableColour Code
CONNECTIONS Function whitebrown greenyellowgreypinkblue red 0 Volt+ VoltAB0A B0

¯ ¯ ¯

9
