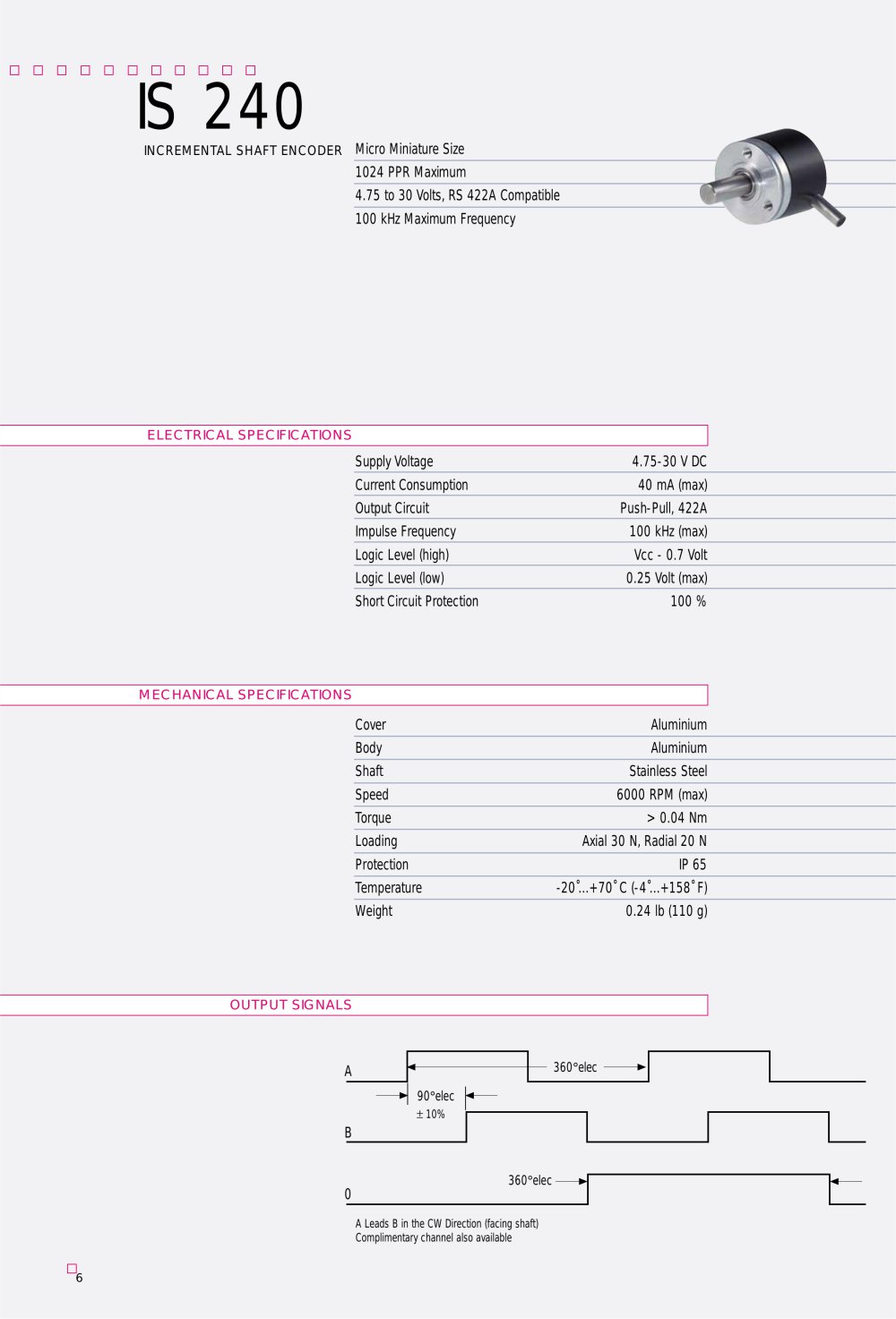

IS 240

INCREMENTAL SHAFT ENCODER

Micro Miniature Size1024 PPR Maximum 4.75 to 30 Volts,RS 422A Compatible 100 kHz Maximum Frequency Supply Voltage4.75-30 V DCCurrent Consumption40 mA (max)Output Circuit Push-Pull,422A Impulse Frequency100 kHz (max)Logic Level (high)Vcc - 0.7 VoltLogic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverAluminiumBodyAluminiumShaftStainless SteelSpeed6000 RPM (max)Torque> 0.04 NmLoadingAxial 30 N,Radial 20 N ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)Weight0.24 lb (110 g)

ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS

AB0

° elec 90 ° elec360
± 10%A Leads B in the CW Direction (facing shaft)Complimentary channel also available ° elec360
6
