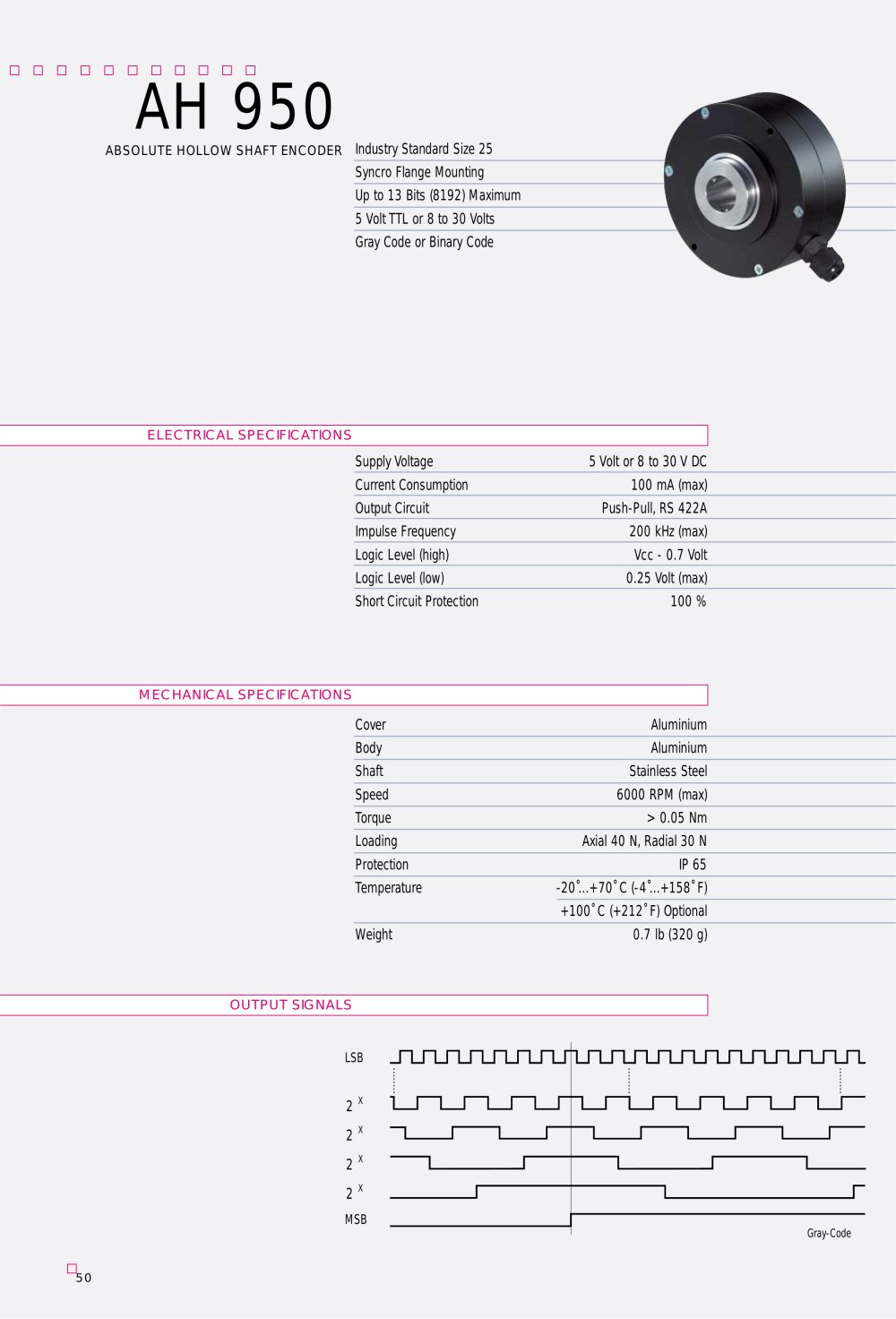

ABSOLUTE HOLLOW
SHAFT ENCODER AH 950
Industry Standard Size 25Syncro Flange mounting
Up to 13 Bits (8192) Maximum
5 Volt TTL or 8 to 30 Volts
Gray Code or Binary Code
Supply Voltage5 Volt or 8 to 30 V DCCurrent Consumption100 mA (max)Output CircuitPush-Pull,RS 422AImpulse Frequency200 kHz (max)Logic Level (high)Vcc - 0.7 Volt
Logic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverAluminiumBodyAluminiumShaftStainless SteelSpeed6000 RPM (max)Torque> 0.05 NmLoadingAxial 40 N,Radial 30 N
ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)+100Ëš C (+212Ëš F) OptionalWeight0.7 lb (320 g)
ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS LSB
MSB
222
2
XXXX Gray-Code 50
