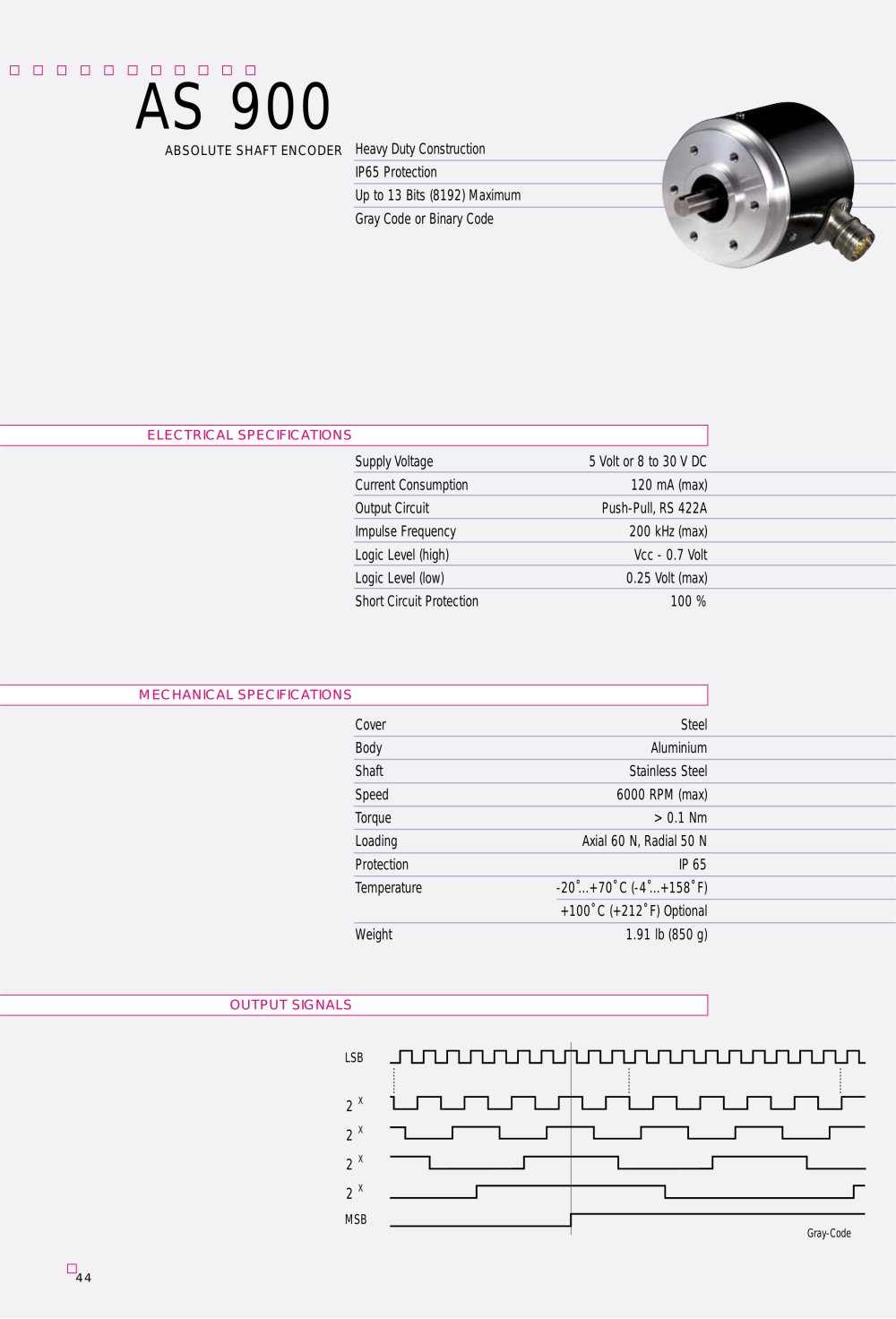

AS 900

ABSOLUTE SHAFT ENCODER

Heavy Duty ConstructionIP65 Protection Up to 13 Bits (8192) Maximum Gray Code or Binary Code Supply Voltage5 Volt or 8 to 30 V DCCurrent Consumption120 mA (max)Output CircuitPush-Pull,RS 422A Impulse Frequency200 kHz (max)Logic Level (high)Vcc - 0.7 VoltLogic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverSteelBodyAluminiumShaftStainless SteelSpeed6000 RPM (max)Torque> 0.1 NmLoadingAxial 60 N,Radial 50 N ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)+100Ëš C (+212Ëš F) OptionalWeight1.91 lb (850 g)

ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS LSB MSB

222 2

XXXX Gray-Code 44
