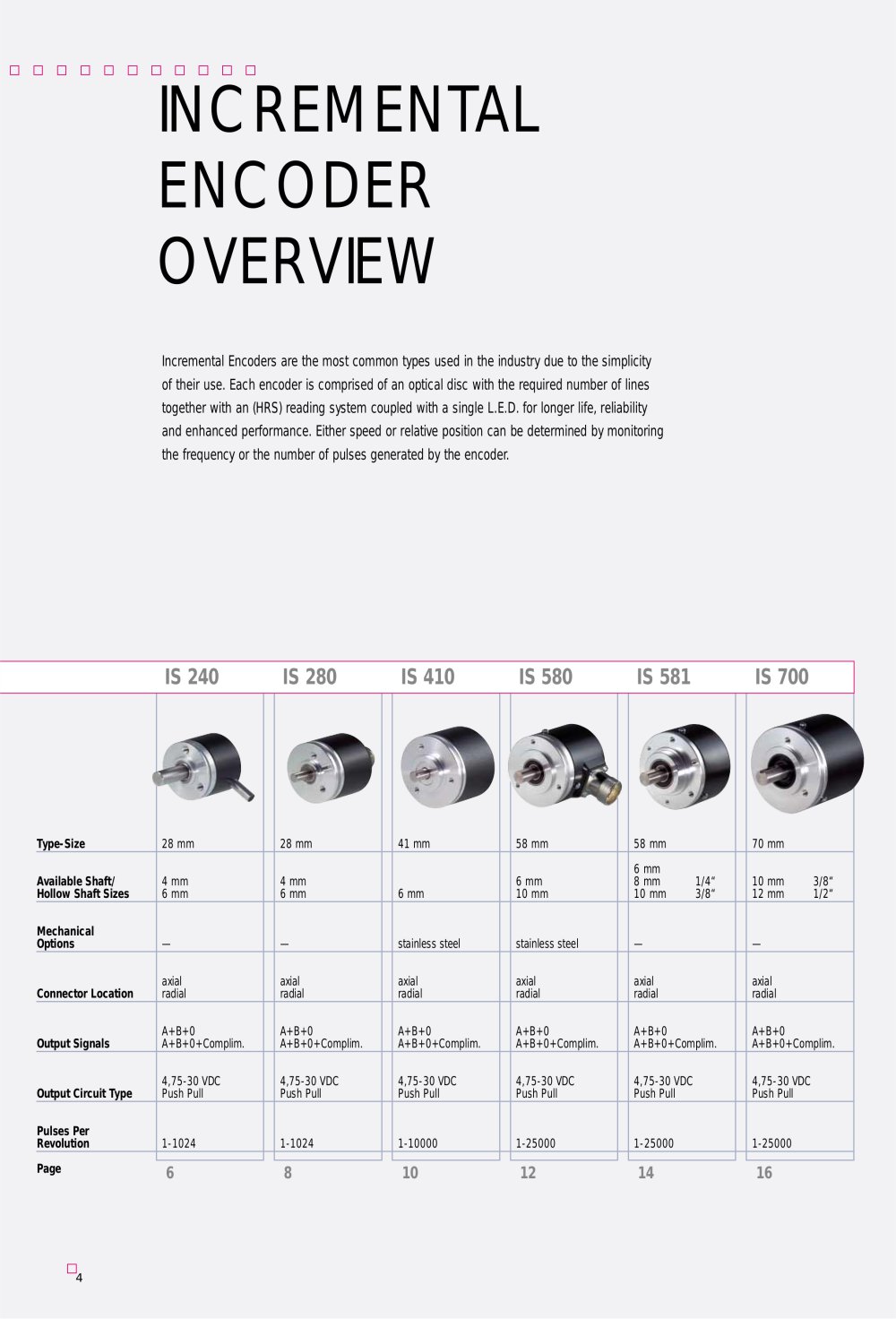

| | | | | | | | | | | | | | | | | | Incremental encoders are the most common types used in the industry due to the simplicity of their use. Each encoder is comprised of an optical disc with the required number of lines together with an (HRS) reading system coupled with a single L.E.D. for longer life, reliability and enhanced performance. Ether speed or relative position can be determined by monitoring the frequency or the number of pulses generated by the encoder. | | | | | | | | | | | | | | | | | | | | | | | | | | IS 240 | IS 280 | IS 410 | IS 580 | IS 581 | IS 700 | | | | i Type-Size | 28 mm | | 28 mm | | 41 mm | • | 58 mm | | 58 mm | | 70 mm | | | | Available Shaft/ Hollow Shaft Sizes | 4 mm 6 mm | | 4 mm 6 mm | | 6 mm | | 6 mm 10 mm | | 6 mm 8 mm 1/4" 10 mm 3/8" | | 10 mm 3/8" 12 mm 1/2" | | | | Mechanical Options | | | | | stainless steel | | stainless steel | | | | | | | Connector Location | axial radial | | axial radial | | axial radial | | axial radial | | axial radial | | axial radial | | | | Output Signals | A+B+0 A+B+0+Complim. | | A+B+0 A+B+0+Complim. | | A+B+0 A+B+0+Complim. | | A+B+0 A+B+0+Complim. | | A+ B+ 0 A+B+0+Complim. | | A+B+0 A+B+0+Complim. | | | | Output Circuit Type | 4,75-30 VDC Push Pull | | 4,75-30 VDC Push Pull | | 4,75-30 VDC Push Pull | | 4,75-30 VDC Push Pull | | 4,75-30 VDC Push Pull | | 4,75-30 VDC Push Pull | | | | Pulses Per Revolution | 1-1024 | | 1-1024 | | 1-10000 | | 1-25000 | | 1-25000 | | 1-25000 | | | | | | | | | | | | | | | | | | | | | | | Page 6 8 10 12 14 16 | | | | | | | | | | □ 4 | | | | | | | | | | | | | | | | | |
|
