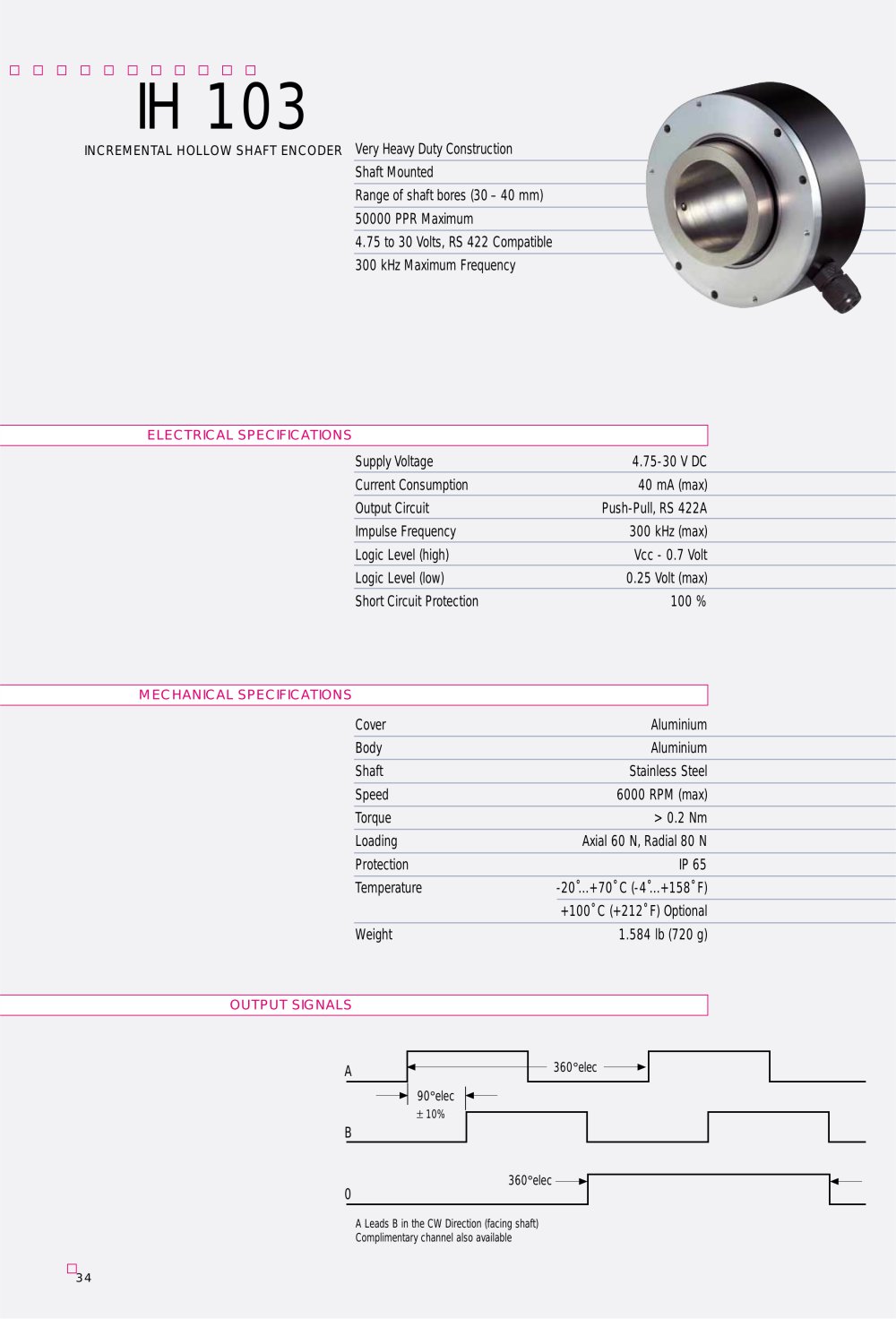

INCREMENTAL HOLLOW SHAFT ENCODER

IH 103

Very Heavy Duty ConstructionShaft Mounted Range of shaft bores (30–40 mm) 50000 PPR Maximum 4.75 to 30 Volts,RS 422 Compatible 300 kHz Maximum Frequency Supply Voltage4.75-30 V DCCurrent Consumption40 mA (max)Output CircuitPush-Pull,RS 422A Impulse Frequency300 kHz (max)Logic Level (high)Vcc - 0.7 VoltLogic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverAluminiumBodyAluminiumShaftStainless SteelSpeed6000 RPM (max)Torque> 0.2 NmLoadingAxial 60 N,Radial 80 N ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)+100Ëš C (+212Ëš F) OptionalWeight1.584 lb (720 g)

ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS

AB0

° elec 90 ° elec360
± 10%A Leads B in the CW Direction (facing shaft)Complimentary channel also available ° elec360
