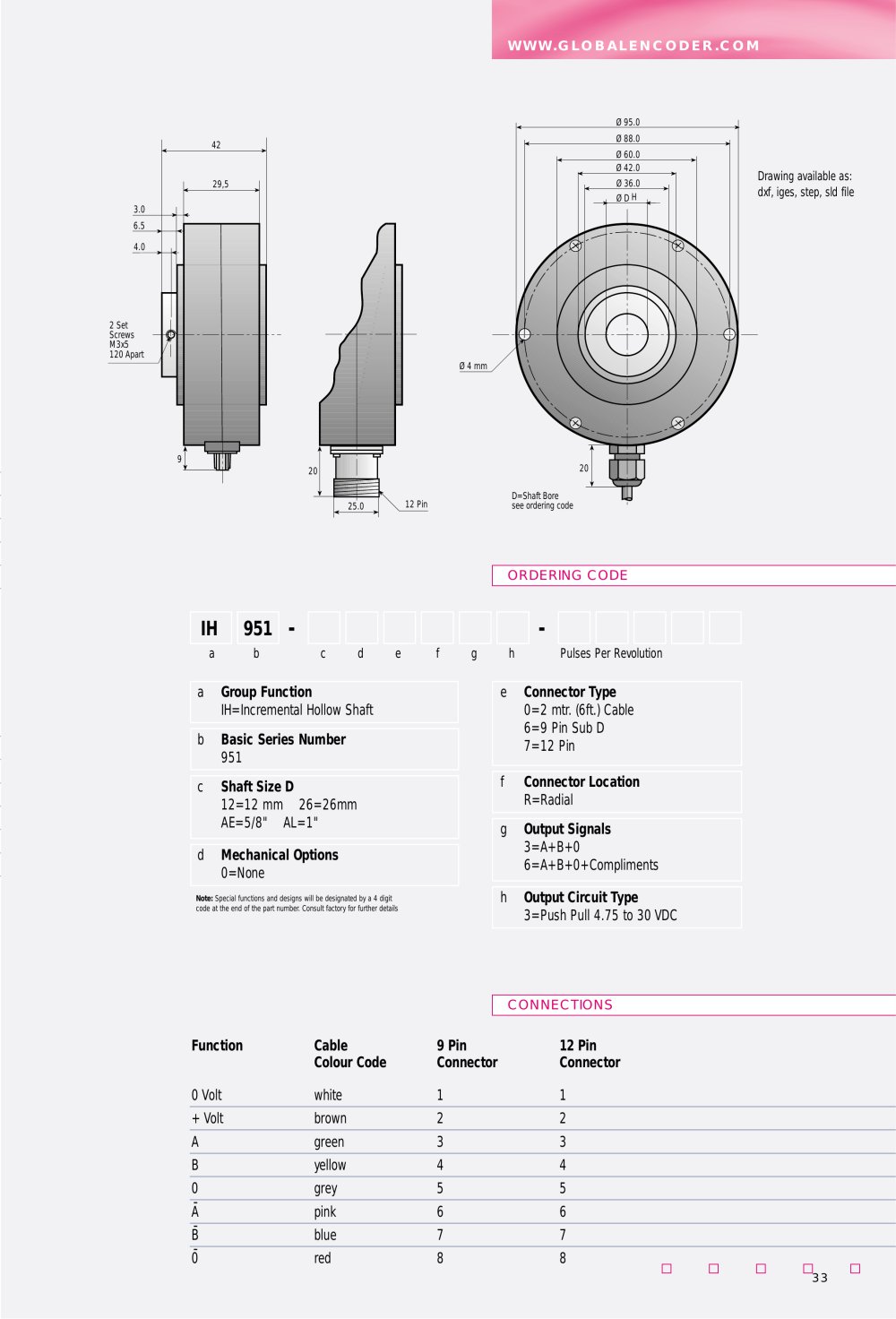

| | | ORDERING CODE | | |
| | | |
| | | IH 951 - a b c d e a Group Function IH=Incremental Hollow Shaft b Basic Series Number 951 c Shaft Size D 12=12 mm 26=26mm Afc5/8" AL=1" | | |
| | | f g h Pulses Per Revolution e Connector Type 0=2 mtr. (6ft.) Cable 6=9 Pin Sub D 7=12 Pin | | |
| | | |
| | | f Connector Location F= Radial g Output Signals 3=A+B+0 6=A+B+0+Compliments | | |
| | | |
| | | d Mechanical Options 0=None Note: Special functions and designs will be designated by a 4 digit code at the end of the part number. Ojnsult factory for further details | | |
| | | |
| | | h Output Circuit Type 3=Push Pull 4.75 to 30 VDC | | |
| | | |
| | | |
| | | C ONNEC TIONS | | |
| | | |
| | | | | | | | | | | | Function | Cable | 9 Pin | 12 Pin | | | | | Colour Code | Connector | Connector | | | | 0 Volt | white | 1 | 1 | | | | + Volt | brown | 2 | 2 | | | | A | green | 3 | 3 | | | | B | yellow | 4 | 4 | | | | 0 | grey | 5 | 5 | | | | A | pink | 6 | 6 | | | | B | blue | 7 | 7 | | | | | | | | | | |
| | | |
| | | 0 red 8 8 □ □ □ □ □ 33 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | |
