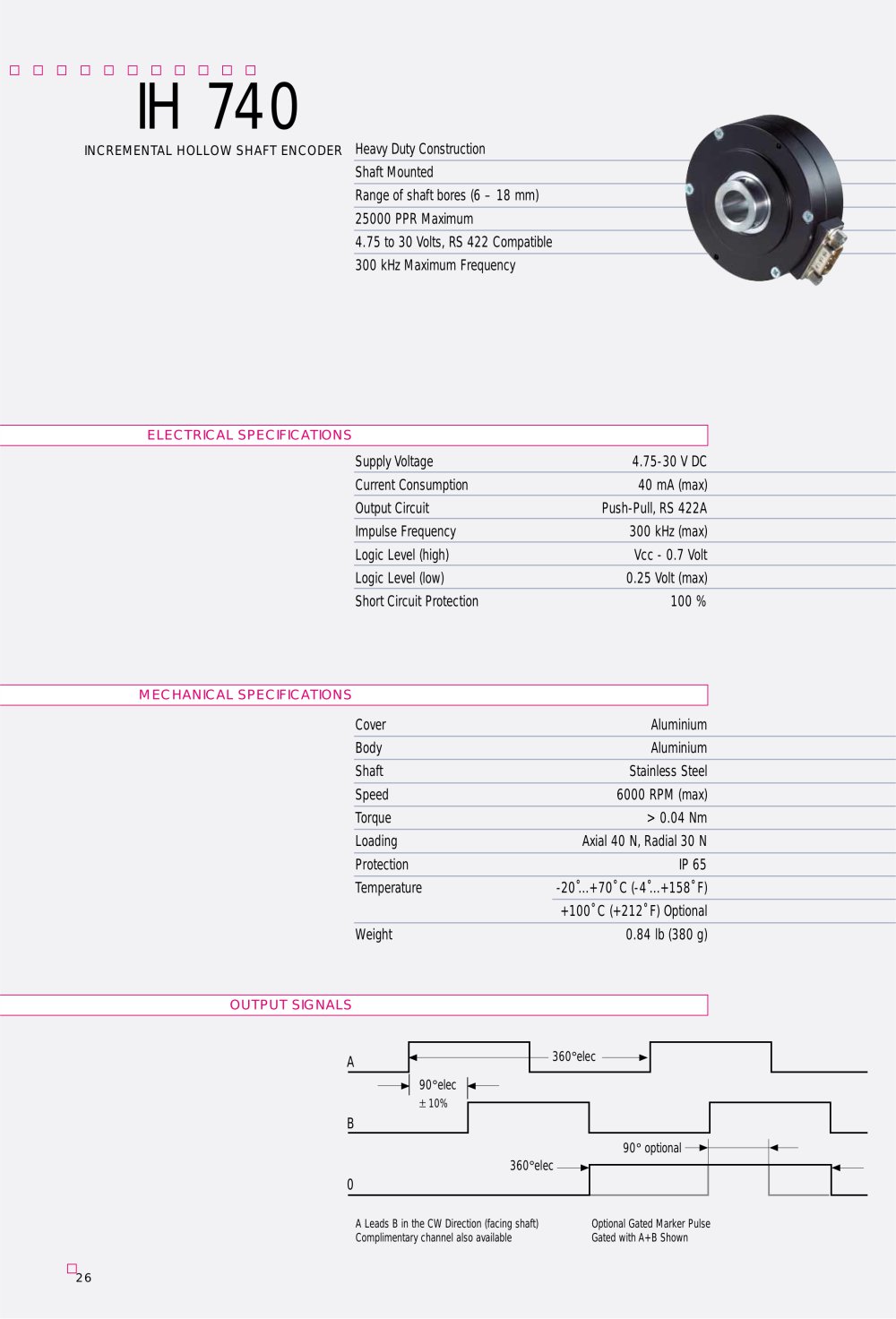

IH 740

Heavy Duty ConstructionShaft Mounted Range of shaft bores (6 – 18 mm) 25000 PPR Maximum 4.75 to 30 Volts,RS 422 Compatible 300 kHz Maximum Frequency Supply Voltage4.75-30 V DCCurrent Consumption40 mA (max)Output CircuitPush-Pull,RS 422A Impulse Frequency300 kHz (max)Logic Level (high)Vcc - 0.7 VoltLogic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverAluminiumBodyAluminiumShaftStainless SteelSpeed6000 RPM (max)Torque> 0.04 NmLoadingAxial 40 N,Radial 30 N ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)+100Ëš C (+212Ëš F) OptionalWeight0.84 lb (380 g)

ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS

AB 0

° elec 90 ° elec360
± 10% A Leads B in the CW Direction (facing shaft)Complimentary channel also availableOptional Gated Marker PulseGated with A+B Shown 90 ° optional ° elec360
26
