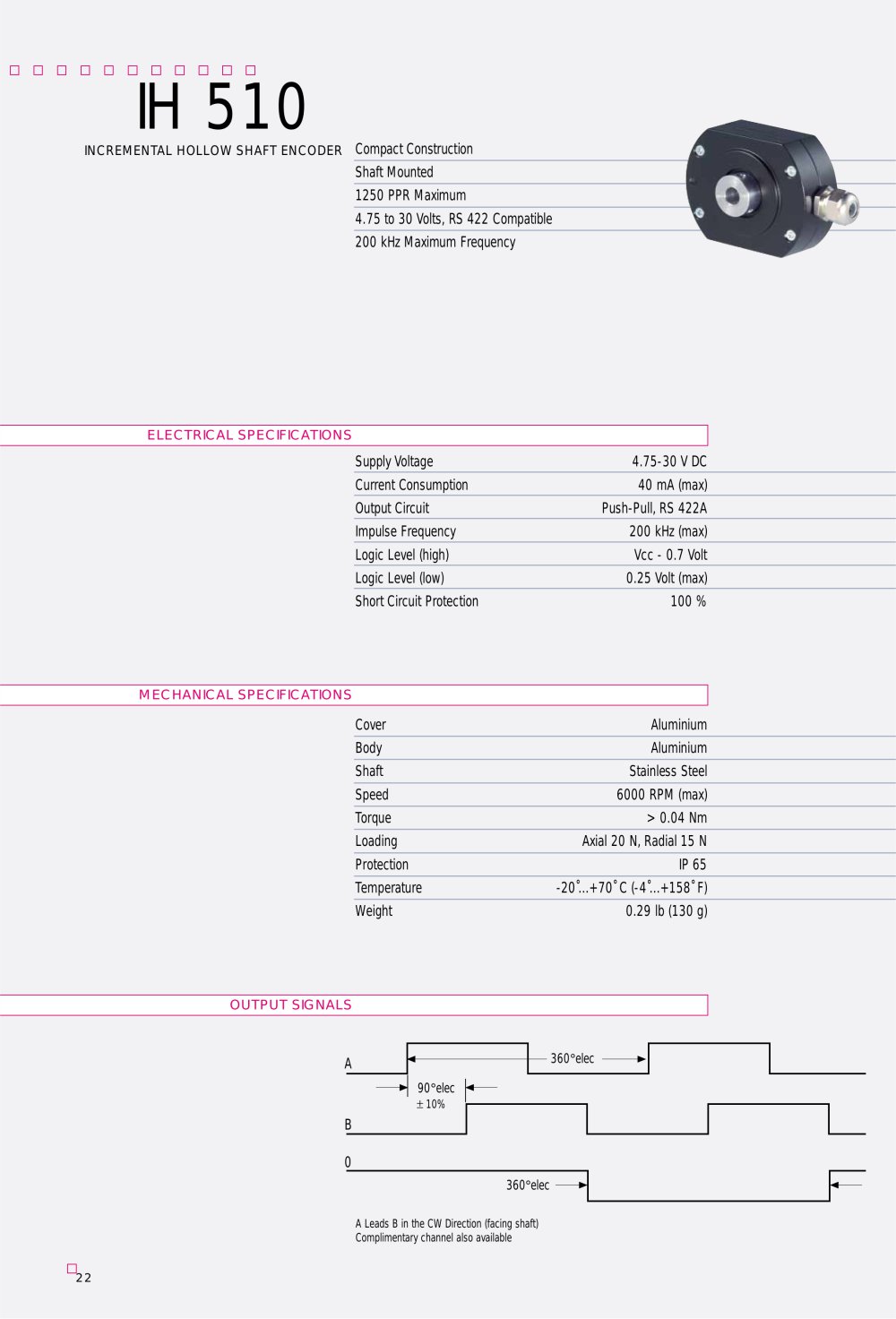

INCREMENTAL HOLLOW SHAFT ENCODER

IH 510

Compact ConstructionShaft Mounted 1250 PPR Maximum 4.75 to 30 Volts,RS 422 Compatible 200 kHz Maximum Frequency Supply Voltage4.75-30 V DCCurrent Consumption40 mA (max)Output CircuitPush-Pull,RS 422AImpulse Frequency200 kHz (max)Logic Level (high)Vcc - 0.7 Volt Logic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverAluminiumBodyAluminiumShaftStainless SteelSpeed6000 RPM (max)Torque> 0.04 NmLoadingAxial 20 N,Radial 15 N ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)Weight0.29 lb (130 g)

ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS

A

° elec360 90 ° elec360
± 10% A Leads B in the CW Direction (facing shaft)Complimentary channel also available

B0

° elec
