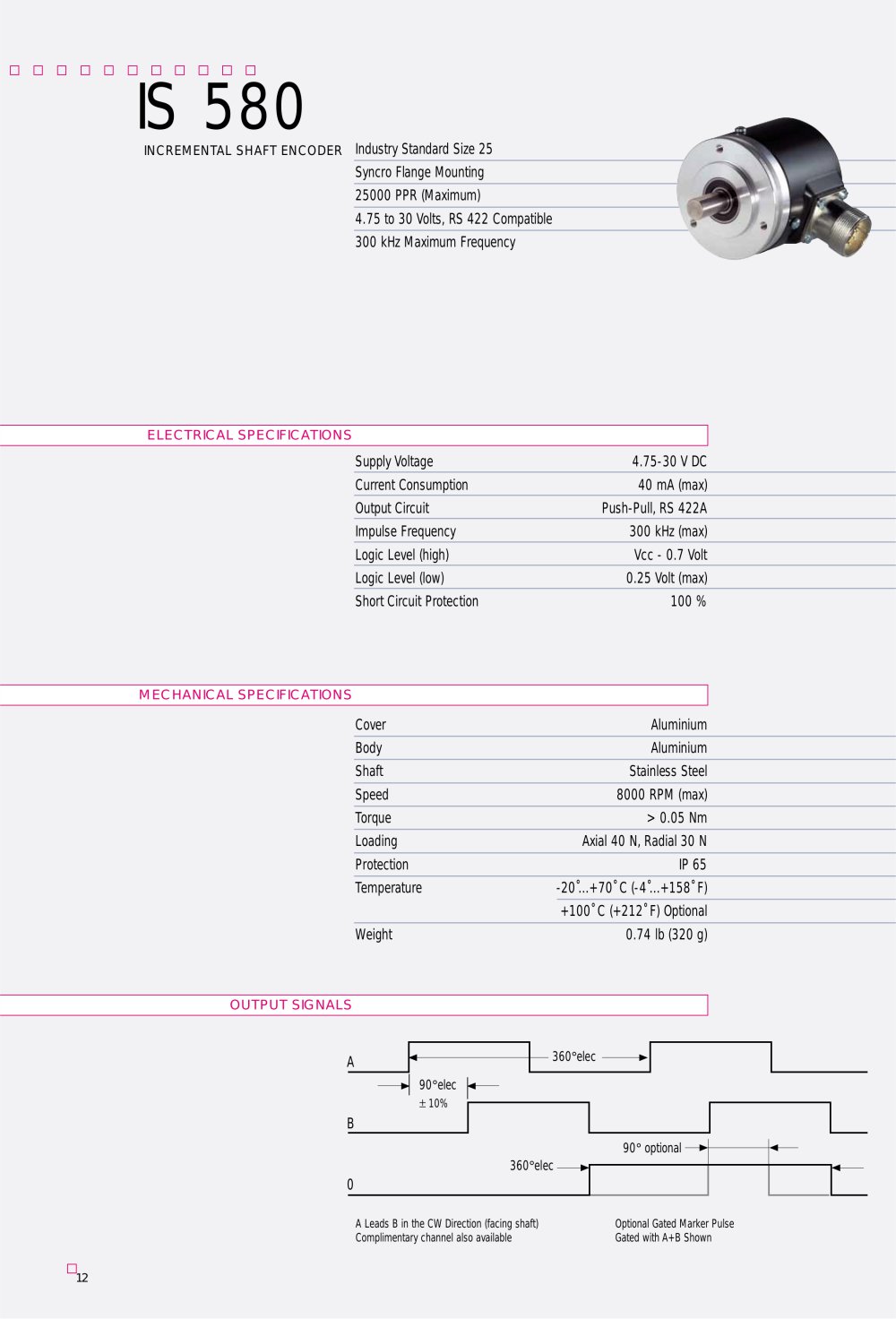

IS 580 INCREMENTAL SHAFT ENCODER Industry Standard Size 25Syncro Flange mounting
25000 PPR (Maximum)
4.75 to 30 Volts,RS 422 Compatible 300 kHz Maximum Frequency
Supply Voltage4.75-30 V DCCurrent Consumption40 mA (max)Output CircuitPush-Pull,RS 422AImpulse Frequency300 kHz (max)Logic Level (high)Vcc - 0.7 Volt
Logic Level (low)0.25 Volt (max)Short Circuit Protection100 %CoverAluminiumBodyAluminiumShaftStainless SteelSpeed8000 RPM (max)Torque> 0.05 NmLoadingAxial 40 N,Radial 30 N
ProtectionIP 65 Temperature-20Ëš...+70Ëš C (-4Ëš...+158Ëš F)+100Ëš C (+212Ëš F) OptionalWeight0.74 lb (320 g) ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS OUTPUT SIGNALS AB
0 ° elec 90 ° elec360 ± 10%
A Leads B in the CW Direction (facing shaft)Complimentary channel also availableOptional Gated Marker PulseGated with A+B Shown 90 ° optional ° elec360 12
|
