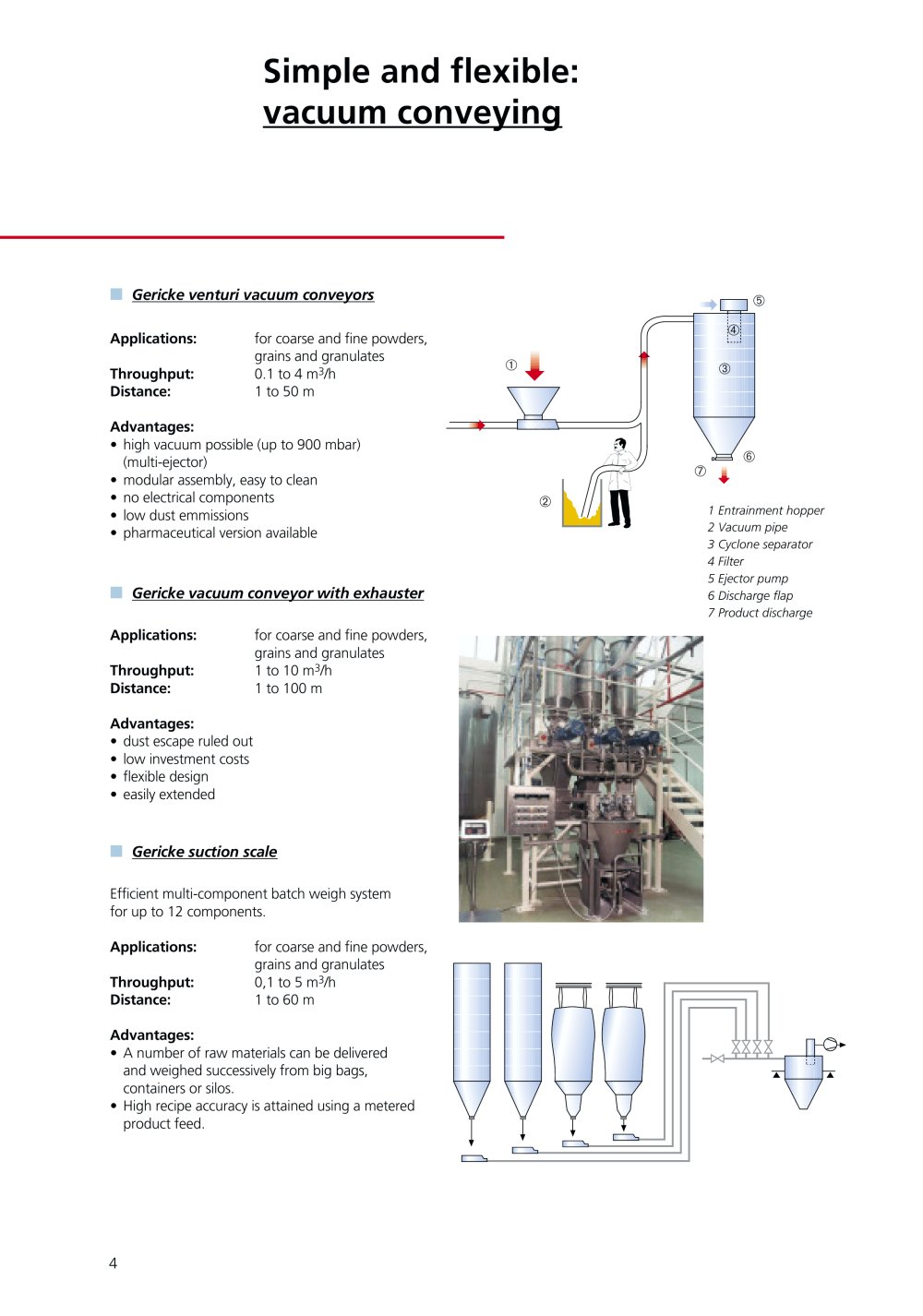

Simple and flexible: vacuum conveying

Gericke venturi vacuum conveyors

Applications: for coarse and fine powders, grains and granulates Throughput: 0.1 to 4 m
3 /h Distance: 1 to 50 m Advantages: •high vacuum possible (up to 900 mbar) (multi-ejector)•modular assembly, easy to clean •no electrical components •low dust emmissions •pharmaceutical version available
1 Entrainment hopper2 Vacuum pipe 3 Cyclone separator 4 Filter 5 Ejector pump 6 Discharge flap 7 Product discharge

Gericke vacuum conveyor with exhauster

Applications: for coarse and fine powders, grains and granulates Throughput: 1 to 10 m
3 /h Distance: 1 to 100 m Advantages: •dust escape ruled out •low investment costs •flexible design •easily extended

Gericke suction scale

Efficient multi-component batch weigh system for up to 12 components. Applications: for coarse and fine powders, grains and granulates Throughput: 0,1 to 5 m
3 /h Distance: 1 to 60 m Advantages: •A number of raw materials can be delivered and weighed successively from big bags, containers or silos.•High recipe accuracy is attained using a metered product feed.

4
