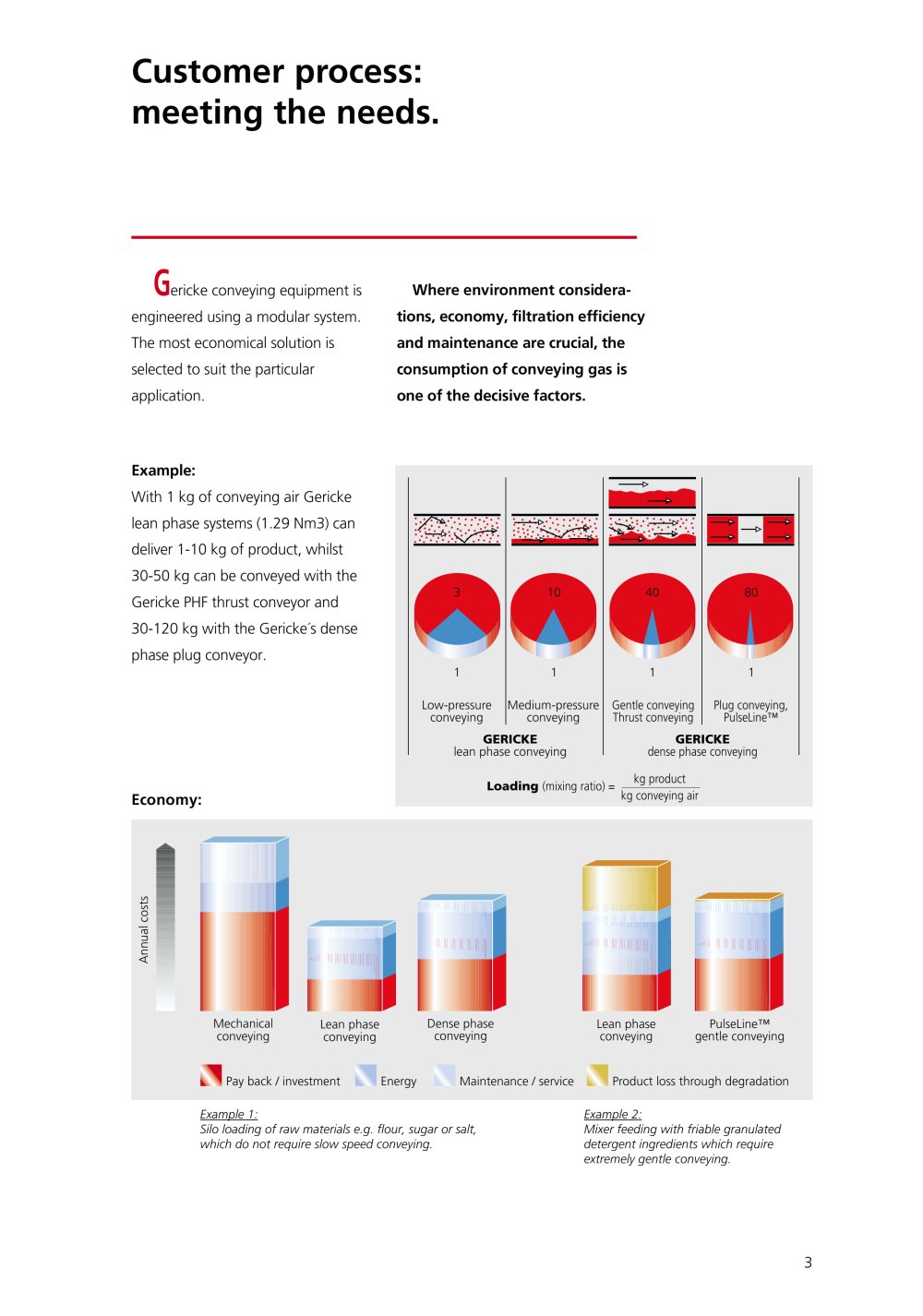

Customer process: meeting the needs.

Pneumatic conveying - 16064 G

ericke conveying equipment isengineered using a modular system. The most economical solution is selected to suit the particular application. Where environment considera-tions, economy, filtration efficiency and maintenance are crucial, the consumption of conveying gas is one of the decisive factors.Example: With 1 kg of conveying air Gericke lean phase systems (1.29 Nm3) can deliver 1-10 kg of product, whilst 30-50 kg can be conveyed with the Gericke PHF thrust conveyor and 30-120 kg with the Gericke´s densephase plug conveyor.

11113104080 Low-pressureconveying Medium-pressureconveying Gentle conveyingThrust conveyingPlug conveying,PulseLine™ GERICKE GERICKE lean phase conveying dense phase conveying Loading (mixing ratio) =kg productkg conveying air

Economy:

Annual costs MechanicalconveyingLean phaseconveyingDense phaseconveyingPay back / investment Lean phaseconveyingPulseLine™gentle conveying Energy Maintenance / service Product loss through degradation Example 1: Silo loading of raw materials e.g. flour, sugar or salt, which do not require slow speed conveying.Example 2: Mixer feeding with friable granulateddetergent ingredients which require extremely gentle conveying.

3
