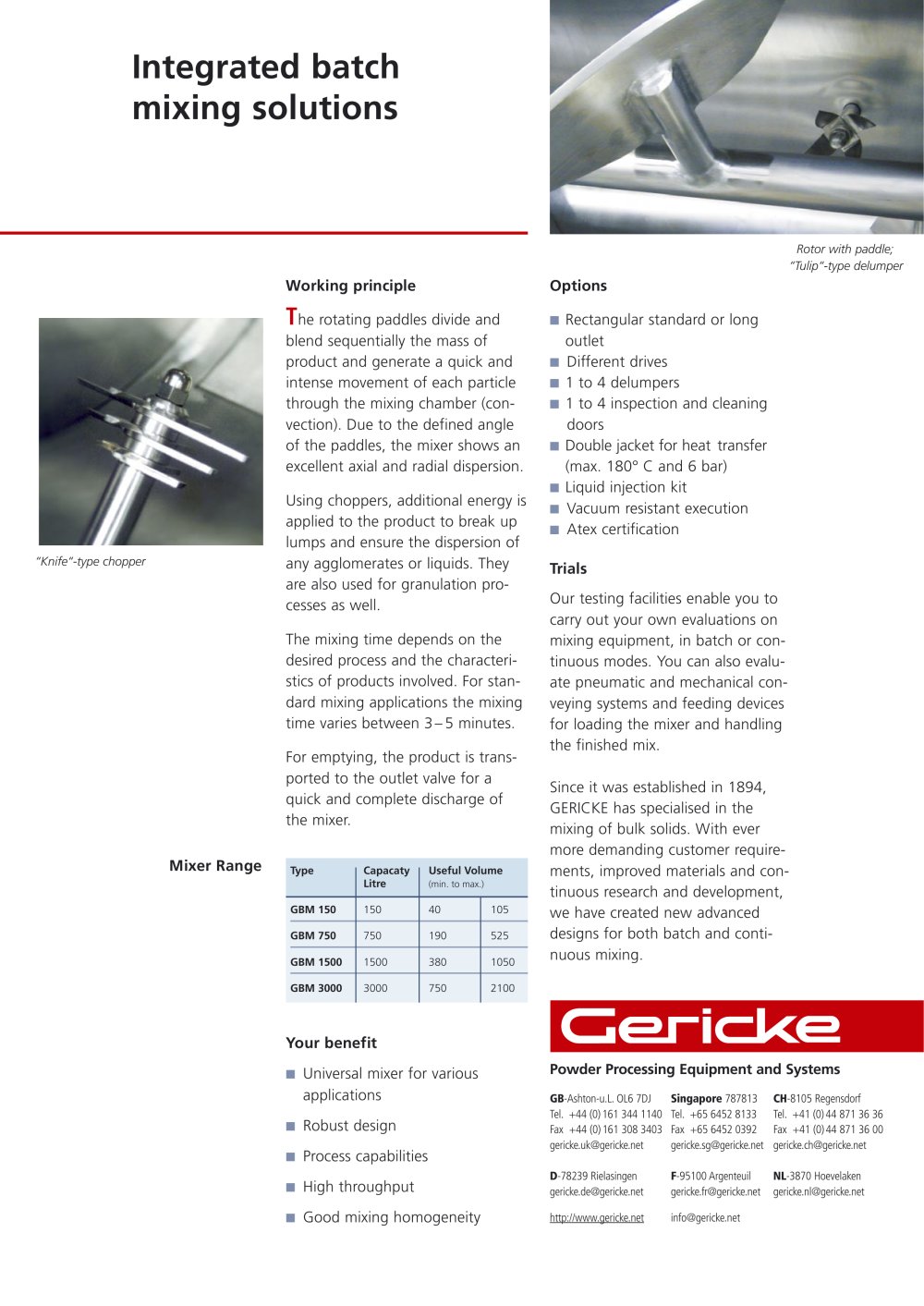

Powder Processing Equipment and Systems Integrated batch mixing solutions Rotor with paddle; “Tulip“-type delumper Working principle The rotating paddles divide and blend sequentially the mass of product and generate a quick and intense movement of each particle through the mixing chamber (convection). Due to the defined angle of the paddles, the mixer shows an excellent axial and radial dispersion. Using choppers, additional energy is applied to the product to break up lumps and ensure the dispersion of any agglomerates or liquids. They are also used for granulation processes as well. The mixing time depends on the desired process and the characteristics of products involved. For standard mixing applications the mixing time varies between 3 – 5 minutes. For emptying, the product is transported to the outlet valve for a quick and complete discharge of the mixer. Your benefit �¡ Universal mixer for various applications �¡ Robust design �¡ Process capabilities �¡ High throughput �¡ Good mixing homogeneity Trials Our testing facilities enable you to carry out your own evaluations on mixing equipment, in batch or continuous modes. You can also evaluate pneumatic and mechanical conveying systems and feeding devices for loading the mixer and handling the finished mix. Since it was established in 1894, GERICKE has specialised in the mixing of bulk solids. With ever more demanding customer requirements, improved materials and continuous research and development, we have created new advanced designs for both batch and continuous mixing. GB-Ashton-u.L. OL6 7DJ Singapore 787813 CH-8105 Regensdorf Tel. +44 (0) 161 344 1140 Tel. +65 6452 8133 Tel. +41 (0) 44 871 36 36 Fax +44 (0) 161 308 3403 Fax +65 6452 0392 Fax +41 (0) 44 871 36 00 gericke.uk@gericke.net gericke.sg@gericke.net gericke.ch@gericke.net D-78239 Rielasingen F-95100 Argenteuil NL-3870 Hoevelaken gericke.de@gericke.net gericke.fr@gericke.net gericke.nl@gericke.net http://www.gericke.net info@gericke.net Mixer Range Type Capacaty Useful Volume Litre (min. to max.) GBM 150 150 40 105 GBM 750 750 190 525 GBM 1500 1500 380 1050 GBM 3000 3000 750 2100 “Knife“-type chopper Options �¡ Rectangular standard or long outlet �¡ Different drives �¡ 1 to 4 delumpers �¡ 1 to 4 inspection and cleaning doors �¡ Double jacket for heat transfer (max. 180° C and 6 bar) �¡ Liquid injection kit �¡ Vacuum resistant execution �¡ Atex certification
