Spreading Table Model G
2Pages

{{requestButtons}}

Catalog excerpts

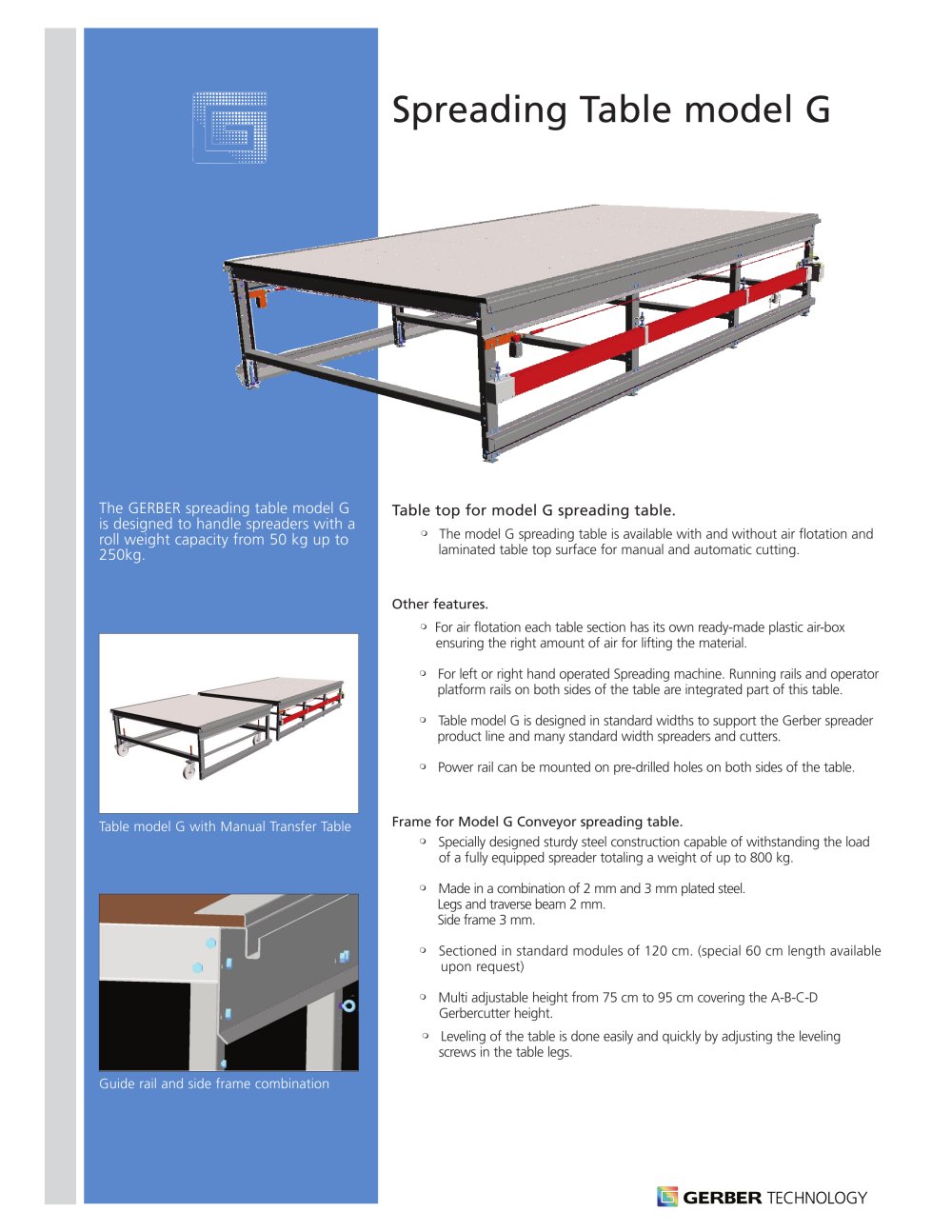

Spreading Table Model G - 1

Spreading Table model G The GERBER spreading table model G is designed to handle spreaders with a roll weight capacity from 50 kg up to Table top for model G spreading table. => The model G spreading table is available with and without air flotation and laminated table top surface for manual and automatic cutting Table model G with Manual Transfer Table Other features. => For air flotation each table section has its own ready-made plastic air-box ensuring the right amount of air for lifting the material. => For left or right hand operated Spreading machine. Running rails and operator platform rails on both sides of the table are integrated part of this table. => Table model G is designed in standard widths to support the Gerber spreader product line and many standard width spreaders and cutters. => Power rail can be mounted on pre-drilled holes on both sides of the table. Frame for Model G Conveyor spreading table. => Specially designed sturdy steel construction capable of withstanding the load of a fully equipped spreader totaling a weight of up to 800 kg. => Made in a combination of 2 mm and 3 mm plated steel Legs and traverse beam 2 mm. => Sectioned in standard modules of 120 cm. (special 60 cm length available upon request) => Multi adjustable height from 75 cm to 95 cm covering the A-B-C-D Gerbercutter height. => Leveling of the table is done easily and quickly by adjusting the leveling screws in the table legs. ide rail and side frame combination

Open the catalog to page 1
Spreading Table Model G - 2

Spreading Table Model G Table widths: Model G is available with or without air cushion in Stondord toble width - Moximum moteriol width + 200 mm Blower recommendation For light weight material For heavyweight material like denim and similar material spread up to 120 ply Power requirements per blower Power consumption (peak) 0.52 kW Gerber Technology, Tolland, CT 06084 USA-Tel: +1(860) 871-8082 www.gerbertechnology.com - info@gerbertechnology.com GERBER TECHNOLOGY Copyright © 2011 Gerber Scientific - Form No. SpreadTableG-E-1011201'

Open the catalog to page 2
