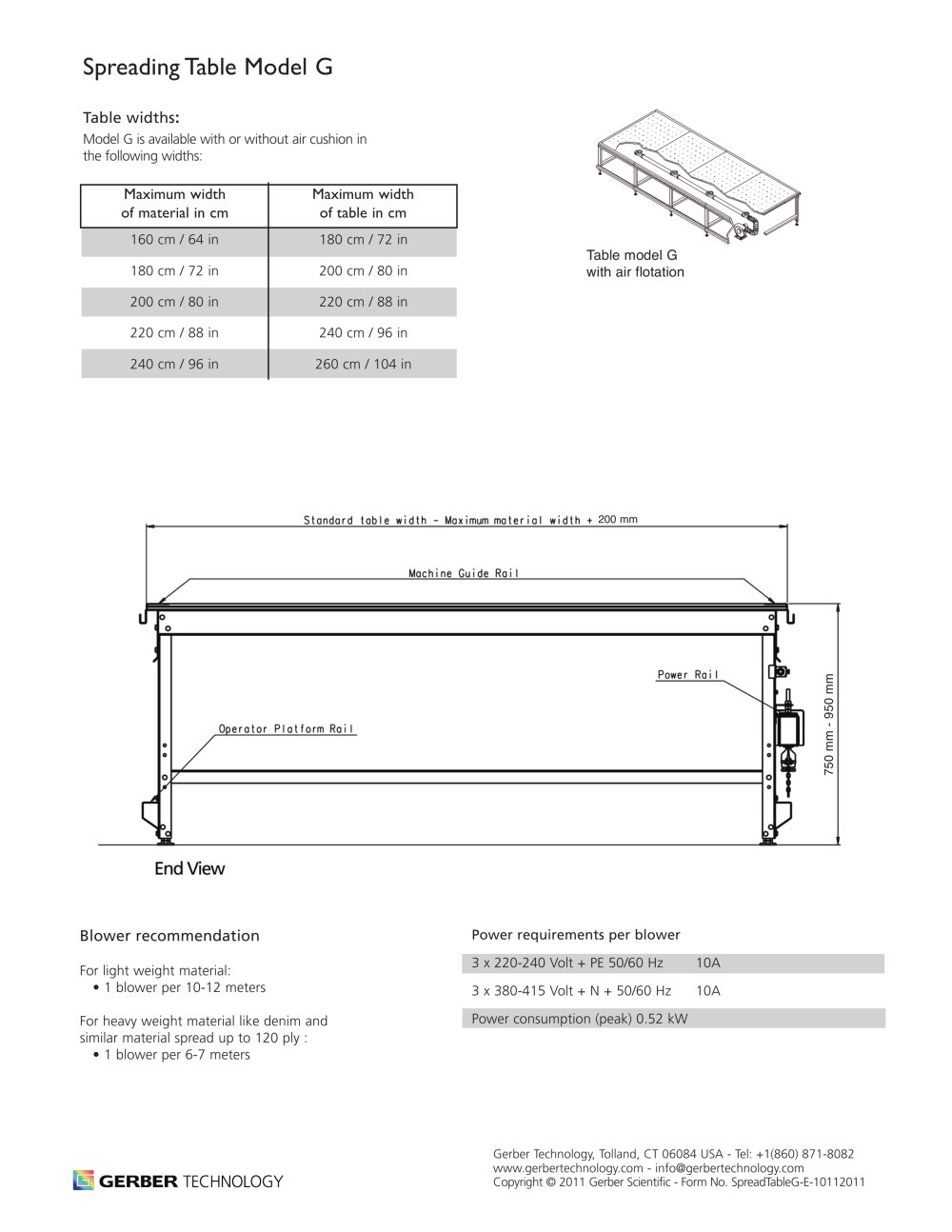

Model G Conveyor Spreading Table Table widths: Model G Conveyor table is available in the following widths: Maximum width of material Maximum width of table 160 cm / 64 in 180 cm / 72 in 180 cm / 72 in 200 cm / 80 in 200 cm / 80 in 220 cm / 88 in 220 cm / 88 in 240 cm / 96 in 240 cm / 96 in 260 cm / 104 in Drum with Maintenance-Free Motor Slave Drum Maximum length per table: 15 meters (16.4 yards) Up to four 15-meter (16.4-yard) tables in one spreading line Standard table width Mcximum mate'icl width t 200 mm Mochine Guide Roi I Operator Plotform Roi I Power Ro i I V 4 End View Power requirements for Model G Conveyor table 3 x 220-240 Volt + PE 50/60 Hz 10A 3 x 380-415 Volt + N + 50/60 Hz 10A Power consumption (peak) 0.52 kWper conveyor table in one line Gerber Technology, Tolland, CT 06084 USA - Tel: +1(860) 871-8082 www.gerbertechnology.com - info@gerbertechnology.com Copyright © 2010 Gerber Scientific - Form No. SpreadTableG-E-11042010
