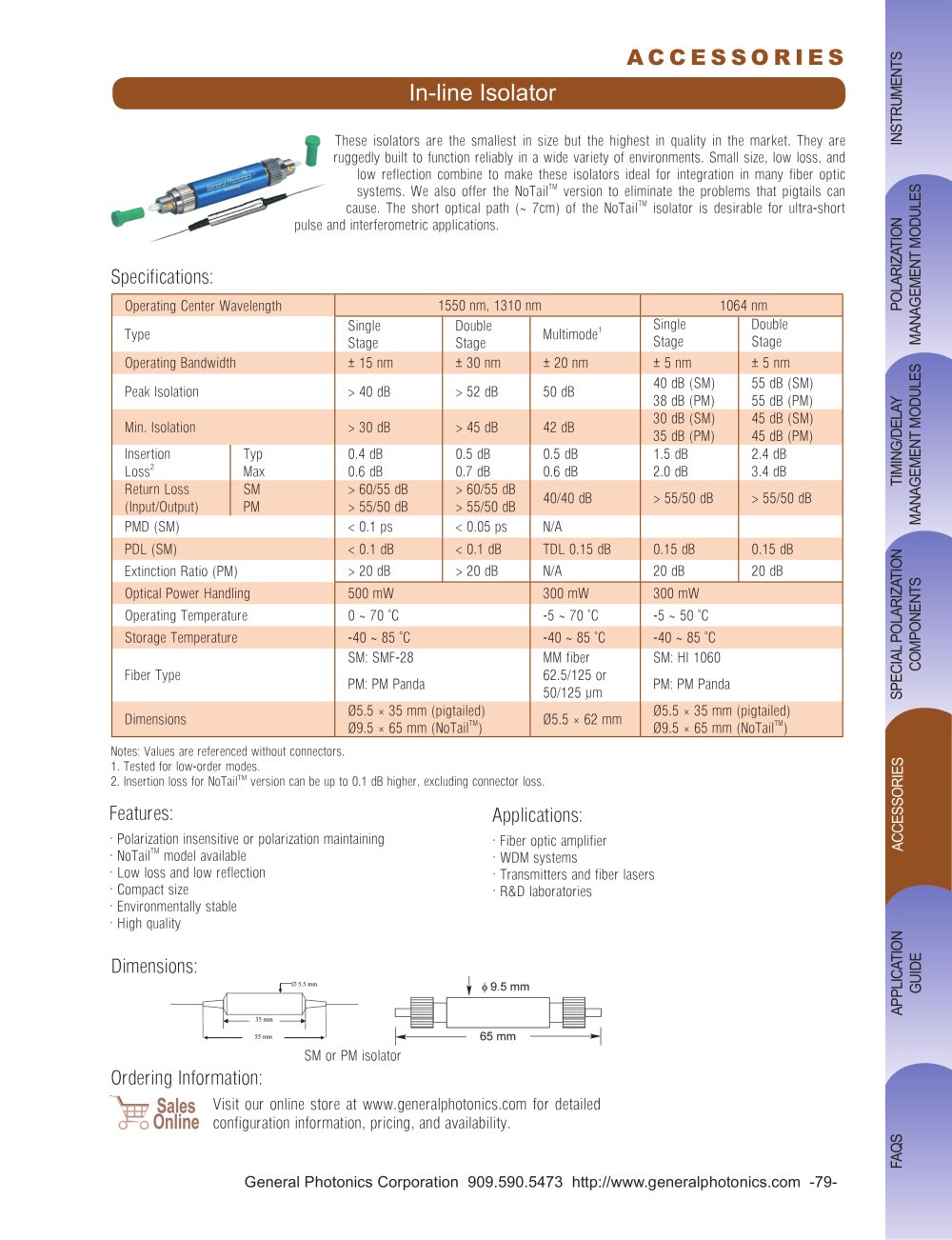

SPECIAL POLARIZATION INSTRUMENTS COMPONENTS APPLICATION ACCESSORIES GUIDE FAQS TIMING/DELAY MANAGEMENT MODULES POLARIZATION MANAGEMENT MODULES General Photonics Corporation 909.590.5473 http://www.generalphotonics.com -79- Specifications: Features: . Polarization insensitive or polarization maintaining . NoTailTM model available . Low loss and low reflection . Compact size . Environmentally stable . High quality Dimensions: Ordering Information: Operating Center Wavelength 1550 nm, 1310 nm 1064 nm Type Single Double Multimode1 Single Double Stage Stage Stage Stage Operating Bandwidth ± 15 nm ± 30 nm ± 20 nm ± 5 nm ± 5 nm Peak Isolation > 40 dB > 52 dB 50 dB 40 dB (SM) 55 dB (SM) 38 dB (PM) 55 dB (PM) Min. Isolation > 30 dB > 45 dB 42 dB 30 dB (SM) 45 dB (SM) 35 dB (PM) 45 dB (PM) Insertion Typ 0.4 dB 0.5 dB 0.5 dB 1.5 dB 2.4 dB Loss2 Max 0.6 dB 0.7 dB 0.6 dB 2.0 dB 3.4 dB Return Loss SM > 60/55 dB > 60/55 dB 40/40 dB > 55/50 dB > 55/50 dB (Input/Output) PM > 55/50 dB > 55/50 dB PMD (SM) 20 dB > 20 dB N/A 20 dB 20 dB Optical Power Handling 500 mW 300 mW 300 mW Operating Temperature 0 ~ 70 °C -5 ~ 70 °C -5 ~ 50 °C Storage Temperature -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C Fiber Type SM: SMF-28 MM fiber SM: HI 1060 PM: PM Panda 62.5/125 or PM: PM Panda 50/125 ìm Dimensions Ø5.5 × 35 mm (pigtailed) Ø5.5 × 62 mm Ø5.5 × 35 mm (pigtailed) Ø9.5 × 65 mm (NoTailTM) Ø9.5 × 65 mm (NoTailTM) Notes: Values are referenced without connectors. 1. Tested for low-order modes. 2. Insertion loss for NoTail™ version can be up to 0.1 dB higher, excluding connector loss. Applications: . Fiber optic amplifier . WDM systems . Transmitters and fiber lasers . R&D laboratories In-line Isolator ACCESSORIES SM or PM isolator Visit our online store at www.generalphotonics.com for detailed configuration information, pricing, and availability. These isolators are the smallest in size but the highest in quality in the market. They are ruggedly built to function reliably in a wide variety of environments. Small size, low loss, and low reflection combine to make these isolators ideal for integration in many fiber optic systems. We also offer the NoTailTM version to eliminate the problems that pigtails can cause. The short optical path (~ 7cm) of the NoTailTM isolator is desirable for ultra-short pulse and interferometric applications.
