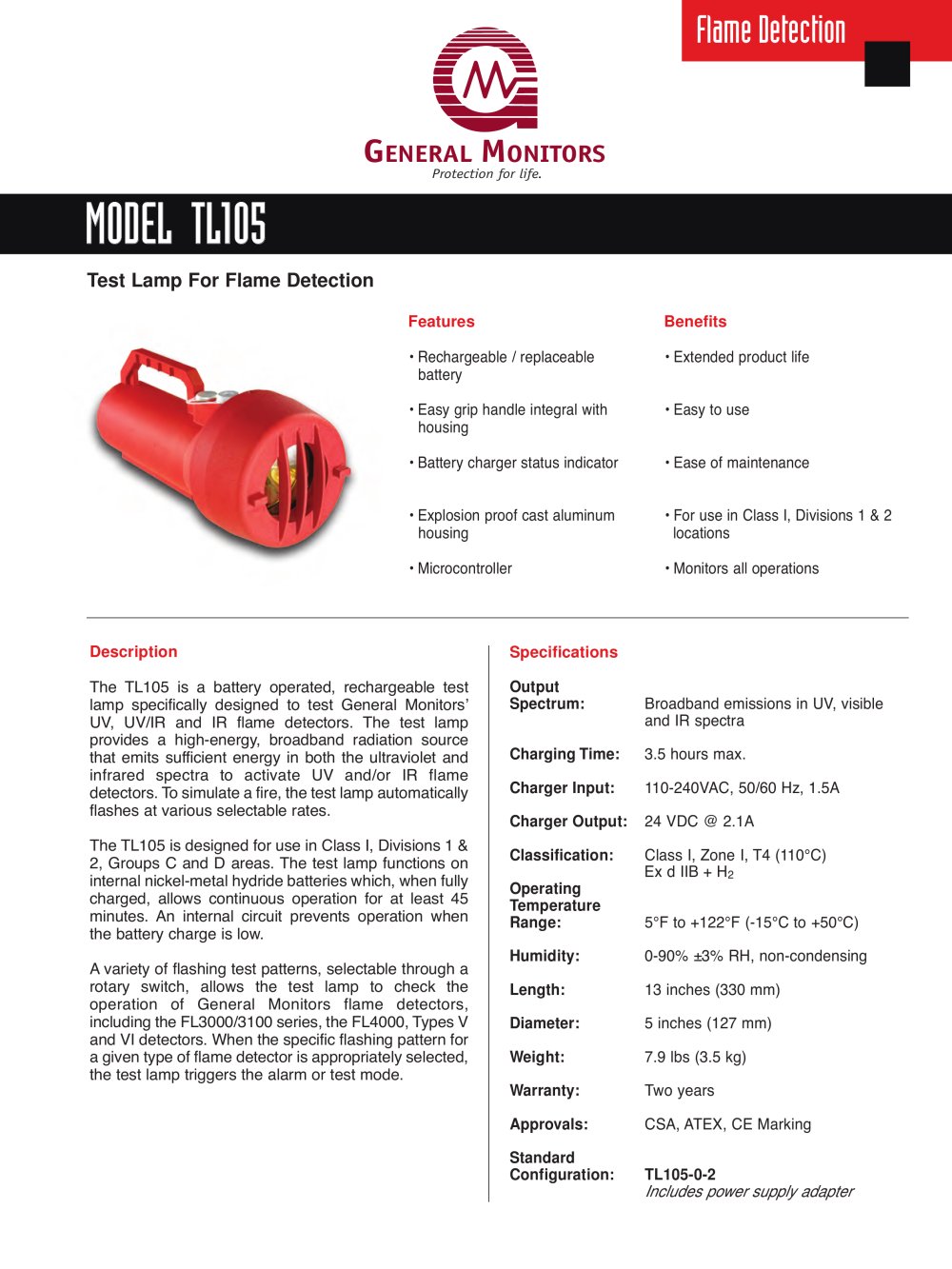

MODEL TL105 Features • Rechargeable / replaceable battery • Easy grip handle integral with housing • Battery charger status indicator • Explosion proof cast aluminum housing • Microcontroller Benefits • Extended product life • Easy to use • Ease of maintenance • For use in Class I, Divisions 1 & 2 locations • Monitors all operations Description The TL105 is a battery operated, rechargeable test lamp specifically designed to test General Monitors’ UV, UV/IR and IR flame detectors. The test lamp provides a high-energy, broadband radiation source that emits sufficient energy in both the ultraviolet and infrared spectra to activate UV and/or IR flame detectors. To simulate a fire, the test lamp automatically flashes at various selectable rates. The TL105 is designed for use in Class I, Divisions 1 & 2, Groups C and D areas. The test lamp functions on internal nickel-metal hydride batteries which, when fully charged, allows continuous operation for at least 45 minutes. An internal circuit prevents operation when the battery charge is low. A variety of flashing test patterns, selectable through a rotary switch, allows the test lamp to check the operation of General Monitors flame detectors, including the FL3000/3100 series, the FL4000, Types V and VI detectors. When the specific flashing pattern for a given type of flame detector is appropriately selected, the test lamp triggers the alarm or test mode. Specifications Output Spectrum: Broadband emissions in UV, visible and IR spectra Charging Time: 3.5 hours max. Charger Input: 110-240VAC, 50/60 Hz, 1.5A Charger Output: 24 VDC @ 2.1A Classification: Class I, Zone I, T4 (110°C) Ex d IIB + H2 Operating Temperature Range: 5°F to +122°F (-15°C to +50°C) Humidity: 0-90% ±3% RH, non-condensing Length: 13 inches (330 mm) Diameter: 5 inches (127 mm) Weight: 7.9 lbs (3.5 kg) Warranty: Two years Approvals: CSA, ATEX, CE Marking Standard Configuration: TL105-0-2 Includes power supply adapter Protection for life. GENERAL MONITORS Test Lamp For Flame Detection
