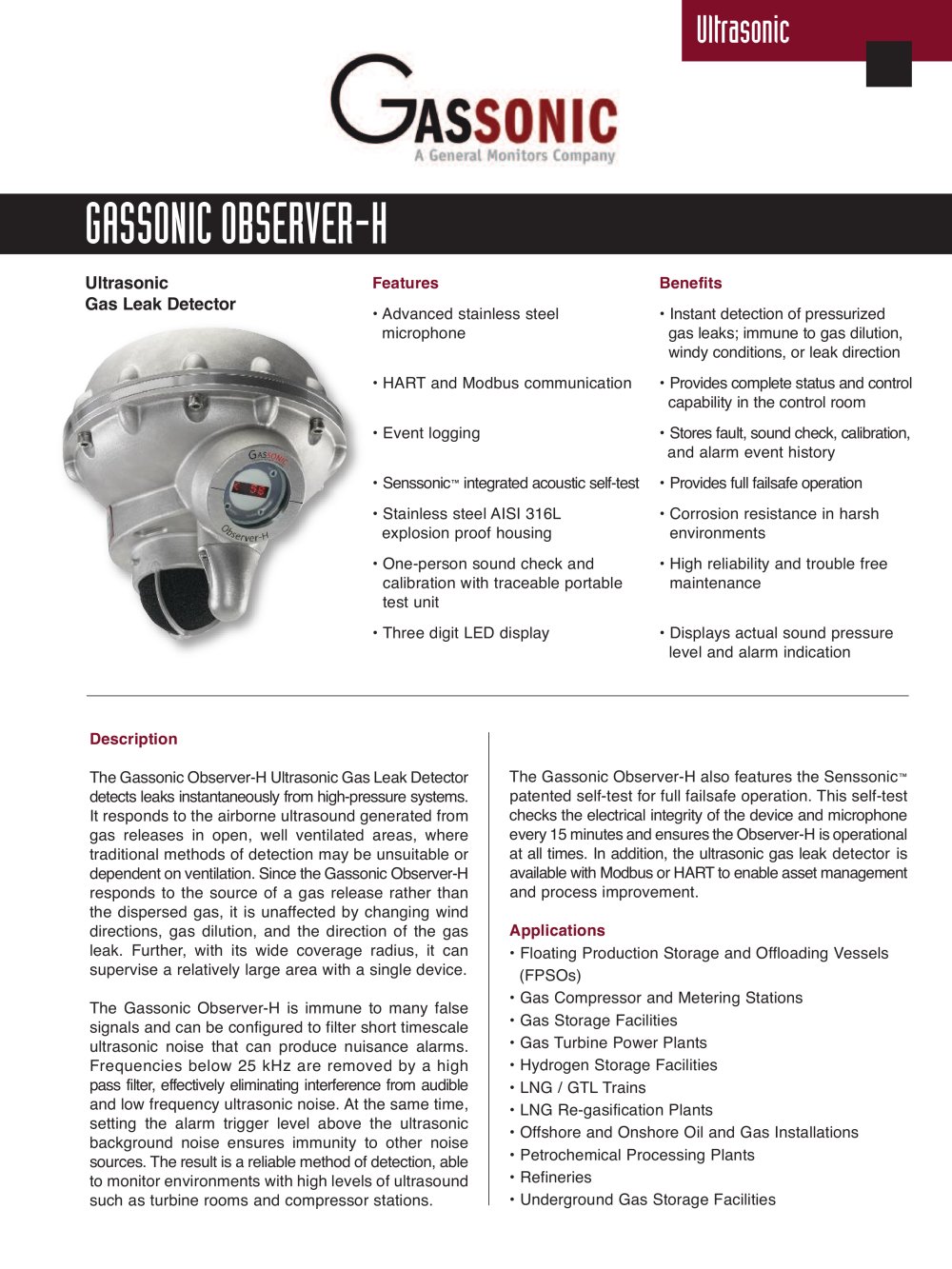

Gassonic Ultrasonic Gas Leak Detector - General Monitors - #1

Text version of the page

Ultrasonic GASSONIC OBSERVER Features • Senssonic™ - integrated acoustic self-test • Advanced stainless steel microphone • 4-20 mA analog output and RS-485 digital communication • Stainless steel AISI 316L explosion proof housing • One-person sound check and calibration with traceable portable test unit • Three digit LED display Benefits • Provides full failsafe operation • Instant detection of high-pressure gas leaks with coverage up to 20 meters in radius • Flexible output methods for remote control and status according to industry standards • Corrosion resistance in harsh environments • High reliability and trouble free maintenance • Displays actual sound pressure level and alarm indication Description The Gassonic Observer is a non-concentration based gas detector used to detect leaks from high-pressure systems. Like other ultrasonic monitors, the Gassonic Observer responds to the airborne ultrasound generated from gas releases in open, well ventilated areas, where traditional methods of detection may be unsuitable or dependent on ventilation. Because the Gassonic Observer responds to the source of a gas release rather than the dispersed gas, it is unaffected by changing wind directions, gas dilution, and the direction of the gas leak. Further, with its maximum coverage radius of 20 meters, it can supervise a relatively large area with a single device. The Gassonic Observer is immune to many false signals and can be configured to filter short timescale ultrasonic noise that can produce nuisance alarms. Frequencies below 25 kHz are removed by a high pass filter, effectively eliminating interference from audible and low frequency ultrasonic noise. At the same time, setting the alarm trigger level above the ultrasonic background noise ensures immunity to other noise sources. The result is a reliable method of detection, able to monitor environments with high levels of ultrasound such as turbine rooms and compressor stations. The Gassonic Observer also features the Senssonic™ patented self-test for full failsafe operation. This self-test checks the electrical integrity of the device and microphone every 15 minutes and ensures the Observer is operational at all times. Applications • Offshore and Onshore Oil and Gas Installations • Floating Production Storage and Offloading Vessels (FPSOs) • Gas Compressor and Metering Stations • Underground Gas Storage Facilities • Petrochemical Processing Plants • Hydrogen Storage Facilities • LNG / GTL Trains • LNG Re-gasification Plants • Gas Turbine Power Plants • Gas Storage Facilities • Refineries Ultrasonic Gas Leak Detector
