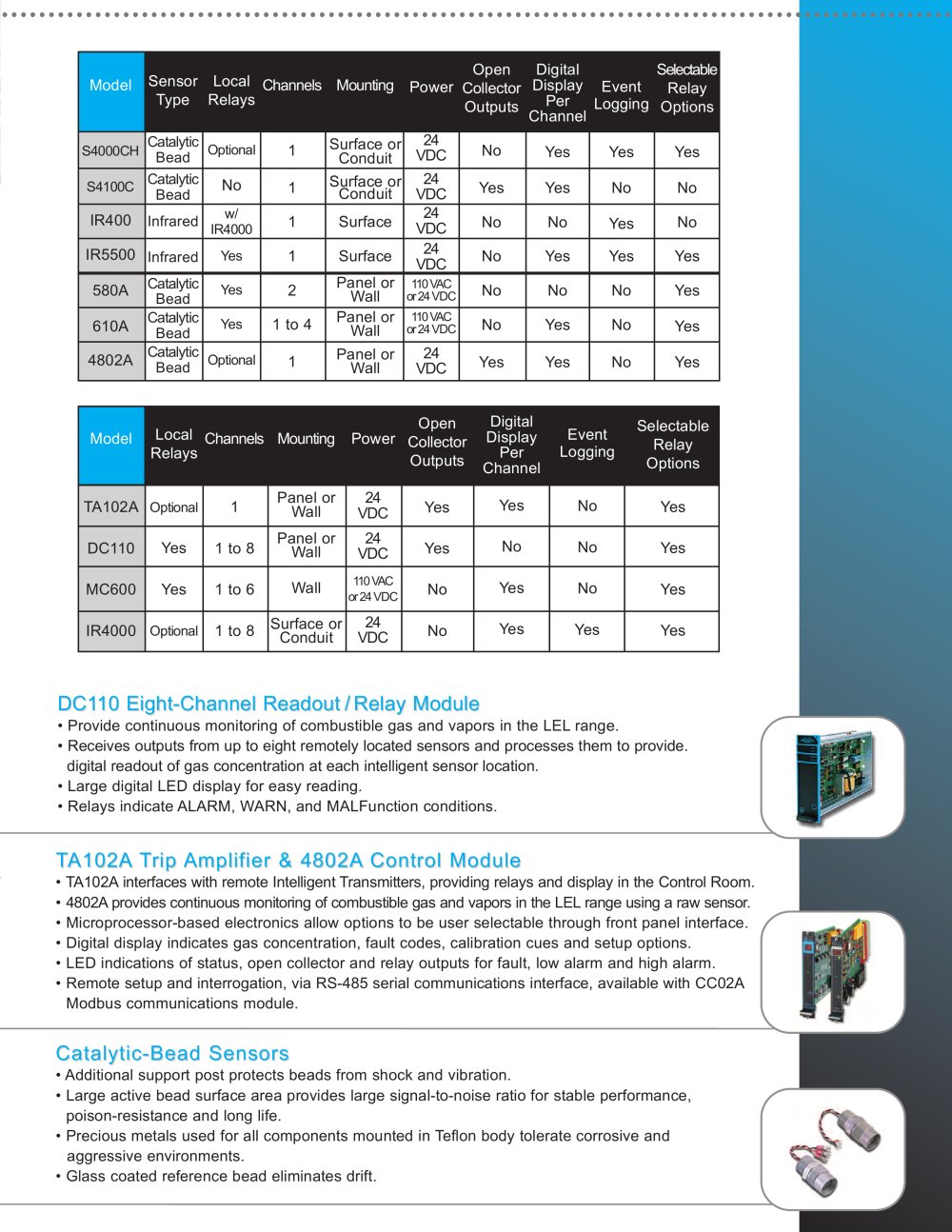

TA102A Single-Channel Trip Amplifier

• Interfaces with remote Smart Industrial transmitters, providing relays and display in the Control Room.

■ Micro processor-based electronics allow all options to be user selectable through froni panel interface.

■ LED indications of status, open collector and relay outputs for fault, low alarm and high alarm.

■ Remote setup and Interrogation, via RS^85 serial communications interface, available with CC02A MODBUS communications module.

4802A Single-Channel Control Module

■ Provides continuous monitoring of combustible gas and vapors in the LEL range.

• Microprocessor-based electronics allow options to be user selectable through front panel interface.

• Digital display indicates gas concentration, fault codes, calibration cues and setup options.

• LED indications of status, open collector and relay outputs for fault, low alarm and high alarm.

• Remote setup and interrogation, via RS-485 serial communications interface, available with CC02A MODBUS communications module.

Catalytic-Bead Sensors

• Extra strong support post protects beads from shock and vibration.

• Large active bead surface area provides large signal-to-noise ratio for stable performance, poison-resistance and long life.

- Precious metals used for all components mounted in Teflon body tolerate corrosive and aggressive environments

• Glass coated reference bead eliminates drift.
