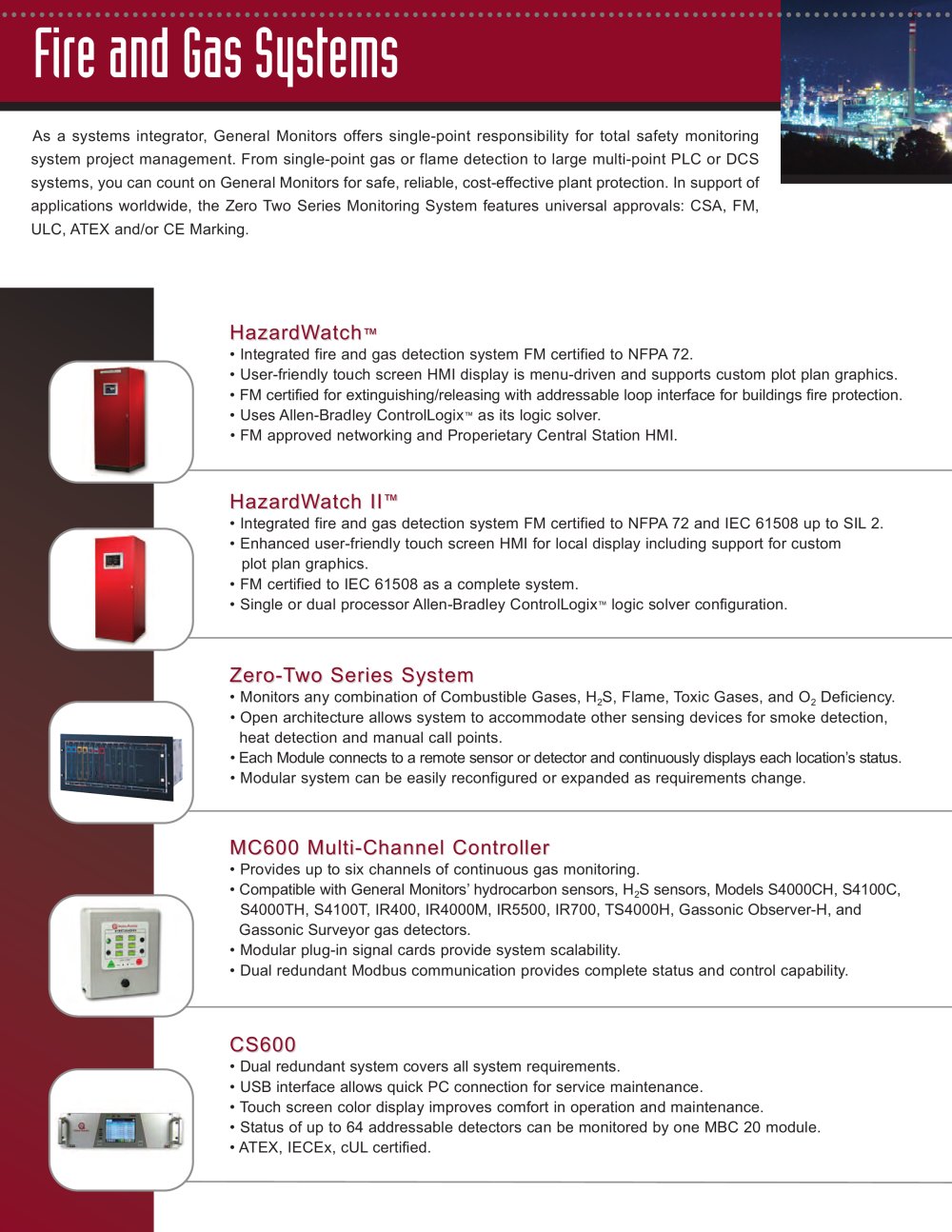

Monitoring Systems

As a systems integrator, General Monitors offers single-point responsibility for total safety industrial monitoring system project management. From single-point gas or flame detection to large multi-point PLC or DCS systems, you can count on General Monitors for safe, reliable, cost-effective plant protection. In support of applications worldwide, the Zero Two Series Monitoring System features universal approvals: CSA, FM, ULC, ATEX and/or CE Marking.

HazardWHazardWatchatch

•Integrated fire and gas detection system FM certified to NFPA72.•User-friendly touch screen INDUSTRIAL HMI display is menu-driven and supports custom plot plans. •FM certified fire alarm and extinguishing/releasing system. •Uses Allen-Bradley ControlLogix™ as its logic solver. •FM approved networking and central station HMI.

Zero-TZero-Two Series Systemwo Series System

•Monitors any combination of Combustible Gases, H
2 S, Flame, Toxic Gases, and O
2 Deficiency.•Open architecture allows system to accommodate other sensing devices for smoke detection, heat detection and manual call points.•Each Module connects to a remote sensor or detector and continuously displays each location’sstatus. •Modular system can be easily reconfigured or expanded as requirements change.

MC600 Multi-Channel ControllerMC600 Multi-Channel Controller

•Provides up to six channels of continuous gas monitoring.•Compatible with General Monitors’hydrocarbon sensors, H
2 Ssensors, Models S4000C, S4100C, S4000T,S4100T,IR2100, IR5000, IR7000, TS4000, TS400, and TS420 gas detectors.•Modular plug-in signal cards provide system scalability. •Dual redundant MODBUS communication provides complete status and control capability.

CC02ACC02ASerial Communications InterfaceSerial Communications Interface

•On-line access to operational and setup data registers.•RS-485 and RS-232 MODBUS RTU ports. •Master/Slave configuration provides increased fault tolerance from additional CC02A. •Communicates with multiple nodes; delivers cost effective solution for large systems. •Implements all necessary protocol conversions and error check routines.

IN042 Four-Zone Input ModuleIN042 Four-Zone Input Module

•Four independent zones provide more available inputs.•Designed for use with two wire field devices such as smoke detectors, pull switches and manual callpoints.•LED status indication for each zone. •Each zone has a dedicated reset/inhibit switch for resetting latched alarms and inhibiting the zone from alarm output.•Each zone provides line monitoring to conform with NFPArequirements.
