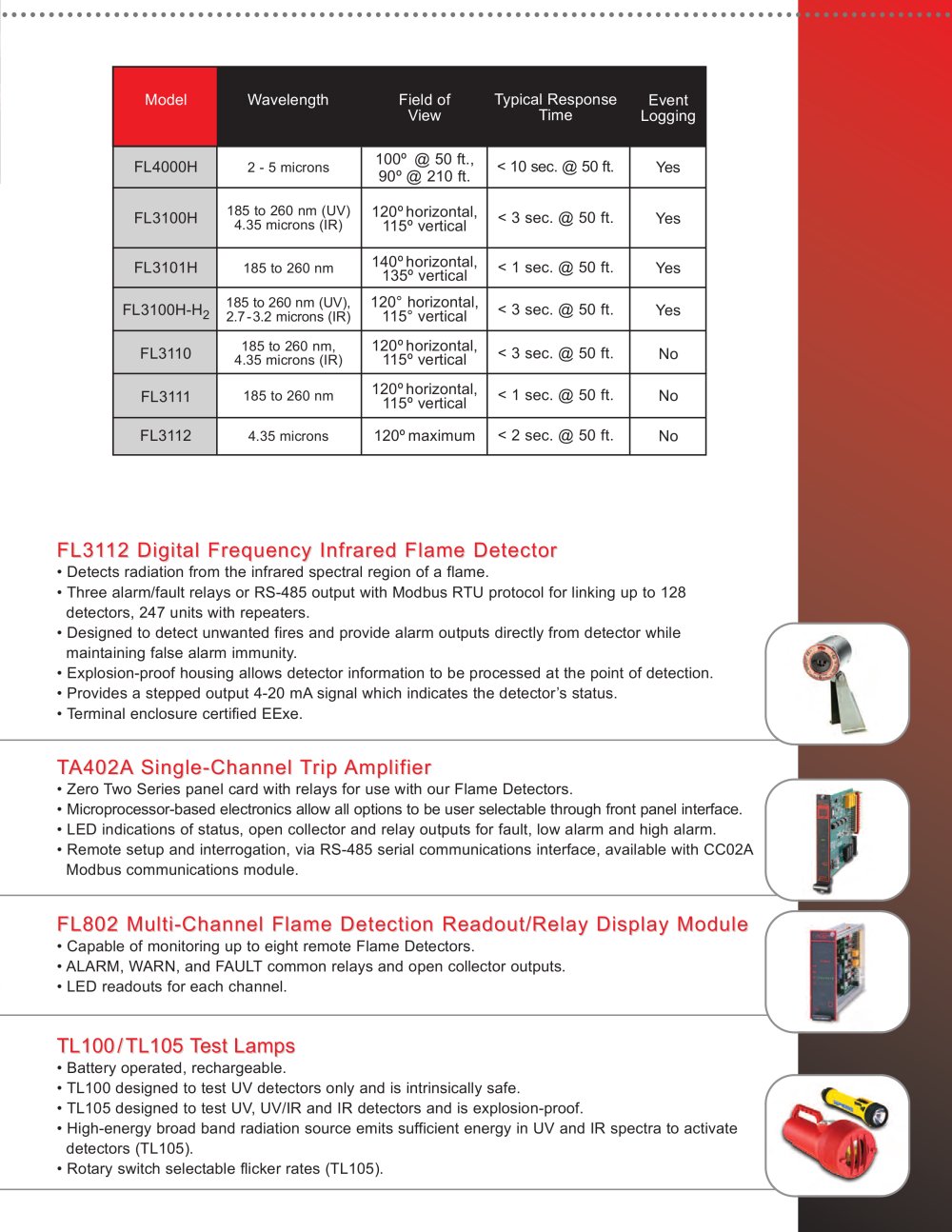

| | | Field of Typical View Response Time | | |
| | | Model Wavelength | | |
| | | |
| | | |
| | | | | | | | | | | | FL4000 | 2 - 5 microns | 100" @ 50 ft. | < 10 sec. @ 50 ft. | | | | FL3100 | 185 (0 260 n.t i'UVi 4.35 mic-ois №). (hydroqen: 2.7 -3.2 microns IR) | 120° horizontal, 115° vertical | | | | | FL3101 | 185 to 260 nm | 140° horizontal, 135" vertical | < 1 sec. @ 50 ft. | | | | FL3102 | 4.35 microns | 110° maximum | < 3 sec. @ 50 ft. | | | | FL3110 | 41355 mlcronsn(fe) | 120° horizontal, 115° vertical | < 3 sec. @ 50 ft. | | | | FL3111 | 185 to 260 nm | 120° horizontal, 115' vertical | <1 sec.® 50 ft. | | | | FL3112 | 4.35 microns | 120° maximum | < 2 sec. @ 50 ft. | | | | | | | | | | | |
| | | |
| | | • FL3110 UV/IR detector is appropriate for either Indoor or outdoor use. • FL3111 UV-only detector detects in UV spectral range, optimized for speed of response. • Three alarm/fault relays or RS-485 output with MODBUS RTU protocol for linking up to 128 detectors, 247 units with repeaters. • Explosion-proof housing allows detector Information to be processed at the point of detection. • Provides a stepped output 0-20mA signal which indicates the detector's status. | | |
| | | |
| | | FL3112 Digital Frequency Infrared Flame Detector ■ Detects radiation from the infrared spectral region of a flame. • Three alarm/fault relays or RS-485 output with MODBUS RTU protocol for linking up to 128 detectors, 247 units with repeaters. ■ Designed to detect unwanted fires and provide alarm outputs directly from detector while maintaining false alarm Immunity. ■ Explosion-proof housing allows detector Information to be processed at the point of detection. ■ Provides a stepped output 0-20mA signal which indicates the detector's status. | | |
| | | |
| | | TA402A Single-Channel Trip Amplifier ■ Zero Two Series panel card with relays for use with our Flame Detectors. • Microprocessor-based electronics allow all options to be user selectable through front panel Interface. • LED indications of status, open collector and relay outputs for fault, low alarm and high alarm. • Remote setup and interrogation, via RS-485 serial communications Interface, available with CC02A MODBUS communications module. | | |
| | | |
| | | FL802 Multi-Channel Flame Detection Readout/Relay Display Module ■ Capable of monitoring up to eight remote Flame Detectors. • ALARM, WARN, and FAULT common relays and open collector outputs. | | |
| | | |
| | | TL100/TL104 Test Lamps • Battery operated, rechargeable. - TL100 designed to test UV detectors only and Is Intrinsically safe. ■ TL104 designed to test UV, UV/IR and Ir detectors and is explosion-proof. • High-energy broad band radiation source emits sufficient energy in UV and IR spectra to activate detectors (TL104). • Four DIP switch selectao e flicker rates (Ti IC4!. | | |
| | | |
| | | | | | | | | | | | | | | |
