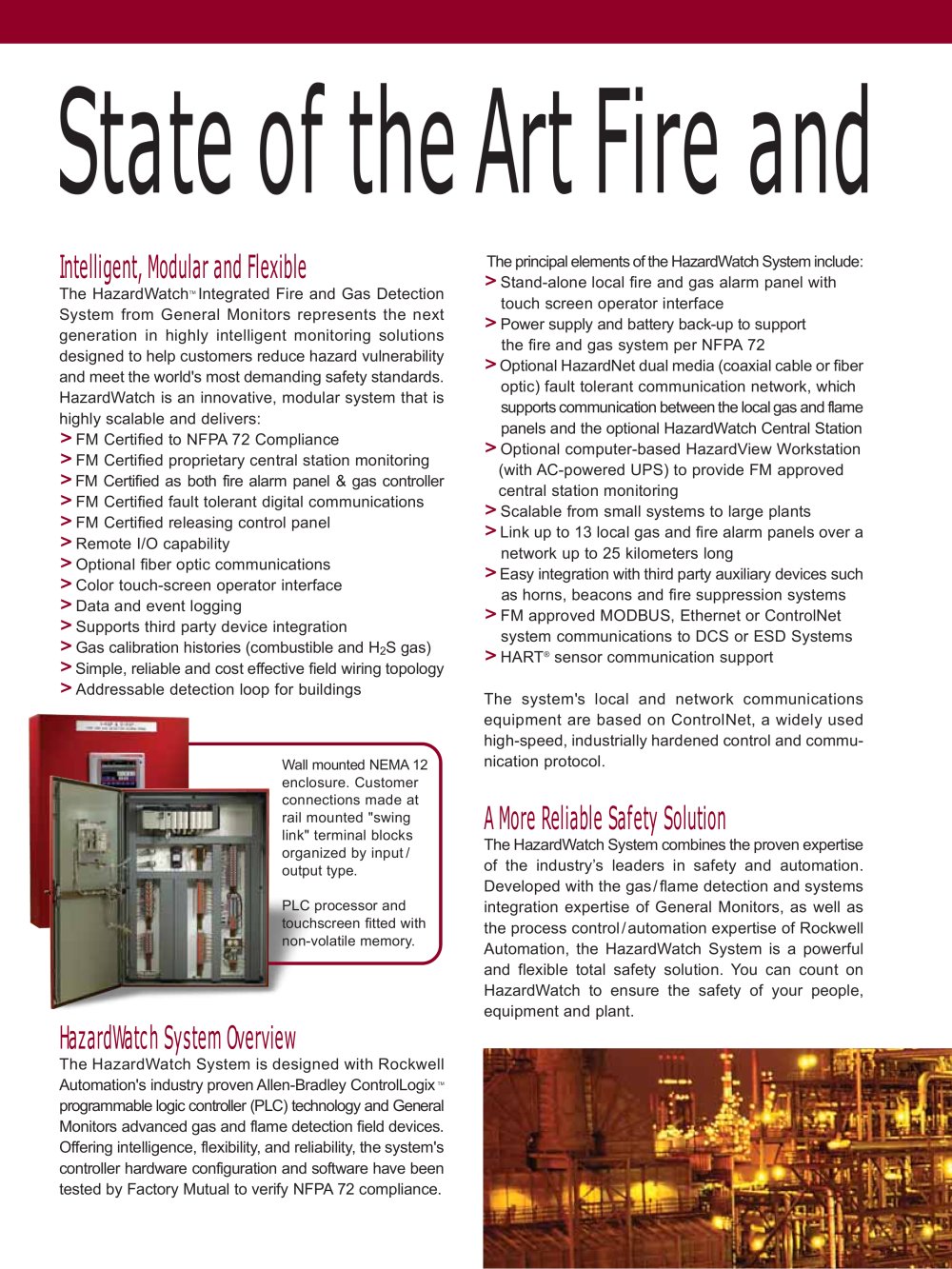

StateoftheArtFire and

The principal elements of the HazardWatch System include: >

Intelligent, Modular and Flexible

> FM Certified to NFPA72 Compliance > The HazardWatch FM Certified proprietary central station monitoring
TM Integrated Fire and Gas DetectionSystem from General Monitors represents the next generation in highly intelligent monitoring solutions designedto help customers reduce hazard vulnerabilityand meet the world’s most demanding safety standards. HazardWatch is an innovative, modular system that is highly scalable and delivers: Stand-alone local fire and gas alarm panel with touch screen operator interface > FM Certified as both fire alarm panel & gas controller > > FM Certified fault tolerant digital communications Power supply and battery back-up to support the fire and gas system per NFPA72 > FM Certified releasing control panel > > State-of-the-art safety automation Optional HazardNet dual media (coaxial cable or fiber optic) fault tolerant communication network, whichsupports communication between the local gas and flame panels and the optional HazardWatch Central Station > Highly intelligent and flexible control > Optional fiber optic communications > Color touch-screen operator interface > > Data and event logging Optional computer-based HazardView Workstation(with AC-powered UPS) to provide FM approved central station monitoring > > Supports third party device integration Scalable from small systems to large plants > > Gas calibration histories (combustible and H Link up to 13 local gas and fire alarm panels over anetwork up to 25 kilometers long > Easy integration with third party auxiliary devices suchashorns, industrial beacons and fire suppression systems > FM approved MODBUS, Ethernet or ControlNetsystem communications to DCS or ESD SystemsThe system’s local and network communicationsequipment are based on ControlNet, a widely used high-speed, industrially hardened control and commu- nication protocol.
2 S gas) > Simple, reliable and cost effective field wiring topology
Wall mounted NEMA12enclosure. Customer connections made at rail mounted "swing link" industrial terminal blocks organized by input/ output type.PLC processor andtouchscreen fitted with non-volatile memory.

A More Reliable Safety Solution

's leaders in safety and automation.Developed with the gas/flame detection and systems integration expertise of General Monitors, as well as the process control/automation expertise of Rockwell Automation, the HazardWatch System is a powerful and flexible total safety solution. You can count onHazardWatch to ensure the safety of your people, equipment and plant. The HazardWatch System combines the proven expertise of the industry

HazardWatch System Overview

The HazardWatch System is designed with RockwellAutomation’s industry proven Allen-Bradley ControlLogix
TM programmable logic controller (PLC) technology and General Monitors advanced gas and flame detection field devices. Offering intelligence, flexibility, and reliability, the system’s controller hardware configuration and software have been tested by Factory Mutual to verify NFPA72 compliance.
