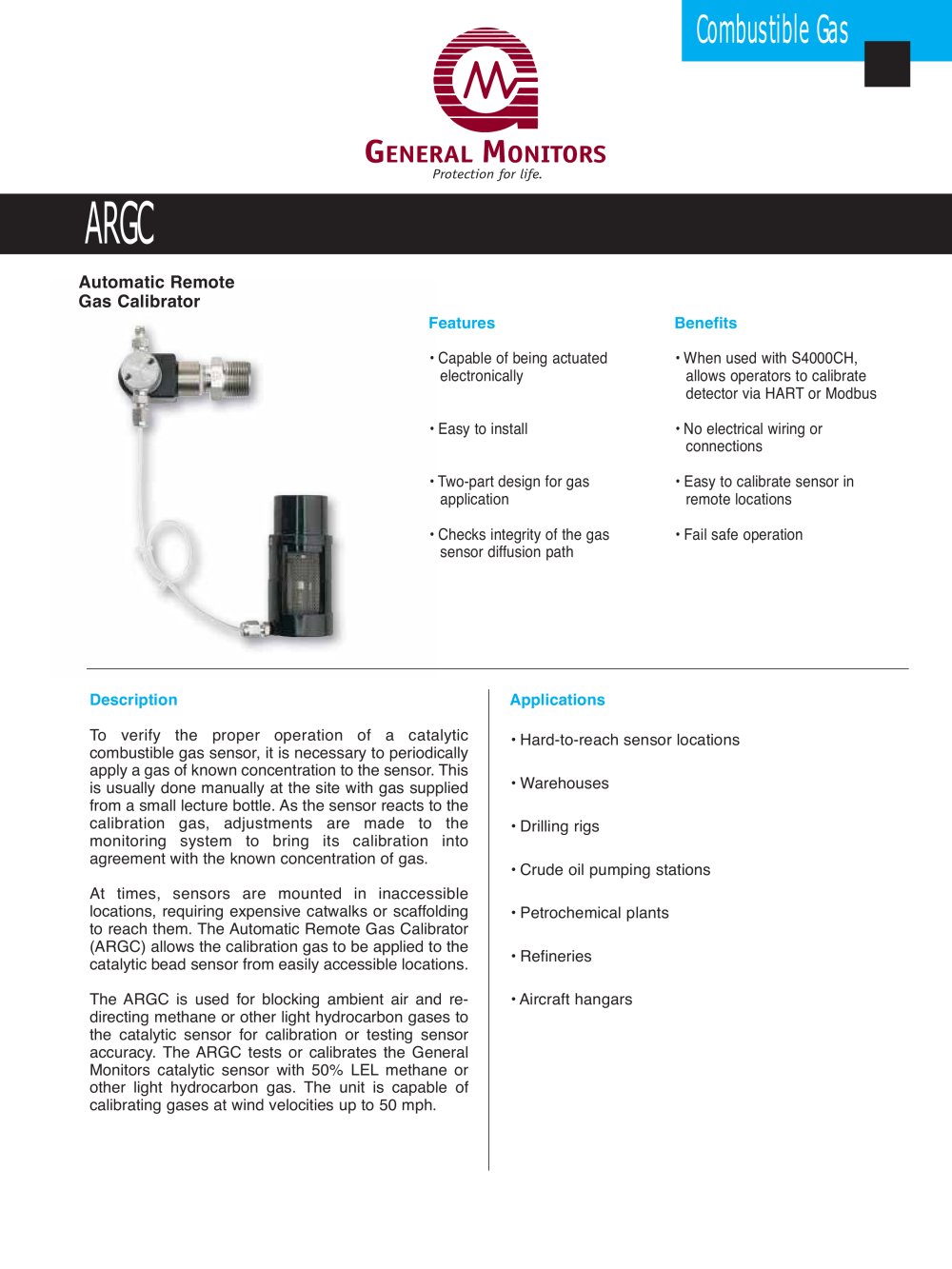

Automatic Remote Gas Calibrator (ARGC) - General Monitors - #1

Text version of the page

Combustible Gas ARGC Features • Capable of being actuated electronically • Easy to install • Two-part design for gas application • Checks integrity of the gas sensor diffusion path Benefits • When used with S4000CH, allows operators to calibrate detector via HART or Modbus • No electrical wiring or connections • Easy to calibrate sensor in remote locations • Fail safe operation Description To verify the proper operation of a catalytic combustible gas sensor, it is necessary to periodically apply a gas of known concentration to the sensor. This is usually done manually at the site with gas supplied from a small lecture bottle. As the sensor reacts to the calibration gas, adjustments are made to the monitoring system to bring its calibration into agreement with the known concentration of gas. At times, sensors are mounted in inaccessible locations, requiring expensive catwalks or scaffolding to reach them. The Automatic Remote Gas Calibrator (ARGC) allows the calibration gas to be applied to the catalytic bead sensor from easily accessible locations. The ARGC is used for blocking ambient air and redirecting methane or other light hydrocarbon gases to the catalytic sensor for calibration or testing sensor accuracy. The ARGC tests or calibrates the General Monitors catalytic sensor with 50% LEL methane or other light hydrocarbon gas. The unit is capable of calibrating gases at wind velocities up to 50 mph. Applications • Hard-to-reach sensor locations • Warehouses • Drilling rigs • Crude oil pumping stations • Petrochemical plants • Refineries • Aircraft hangars Automatic Remote Gas Calibrator
