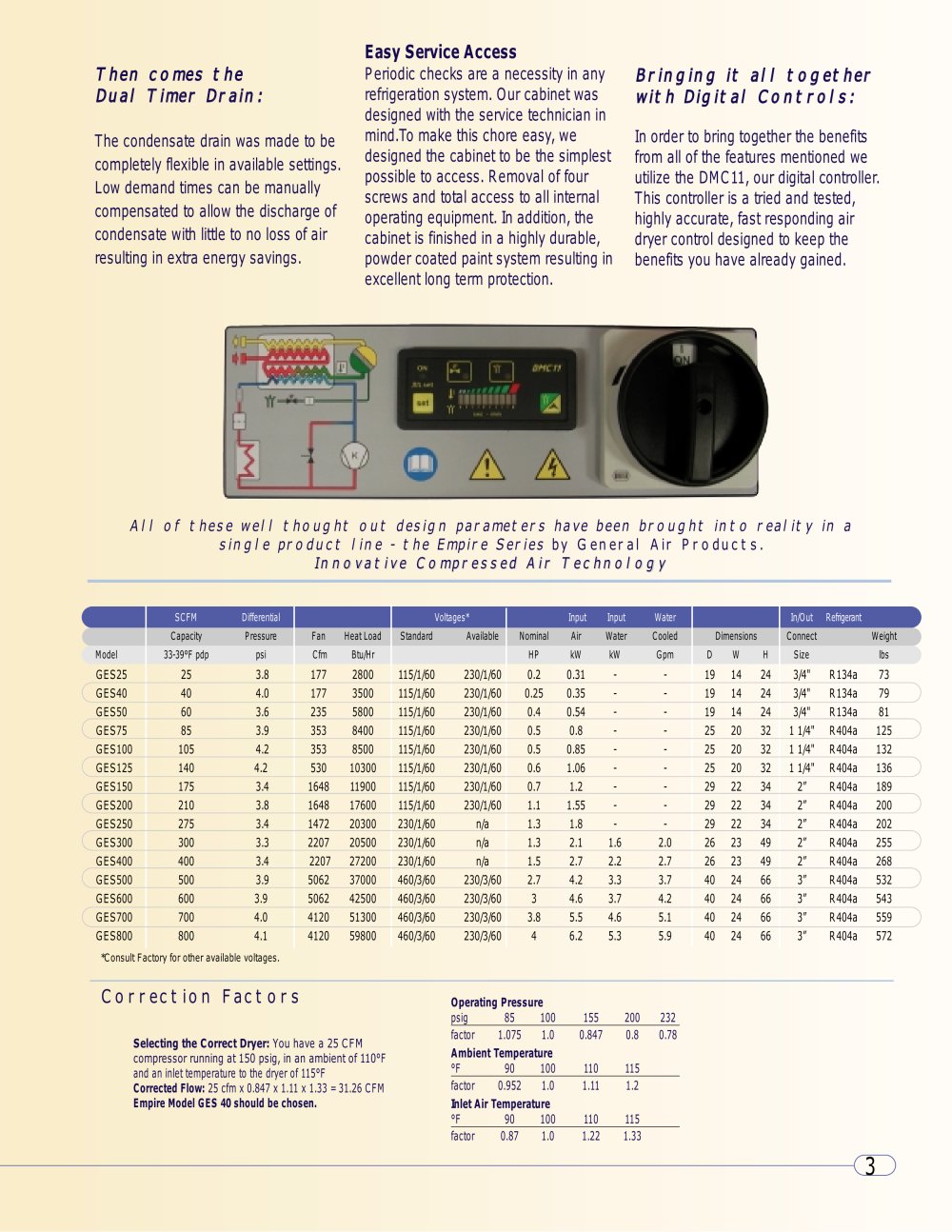

Catalogue - REFRIGERATION AIR DRYERS - General Air Products - (Version JPG)

Untitled

TheM0omes the Du al Tfmer Drain:

The condensate drain was made to be completely flexible in available settings. Low demand times can be manually compensated to allow the discharge of condensate with little to no loss of air resulting in extra energy savings.

Easy Service Access

Periodic checks are a necessity in any refrigeration system. Our cabinet was designed with the service technician in mind.To make this chore easy, we designed the cabinet to be the simplest possible to access. Removal of four screws and total access to all internal operating equipment. In addition, the cabinet is finished in a highly durable, powder coated paint system resulting in excellent long term protection.

Bringng it all together withDig/taa Contrat

In order to bring together the benefits from all of the features mentioned we utilize the DMC11, our digital controller. This controller is a tried and tested, highly accurate, fast responding air dryer control designed to keep the benefits you have already gained.



	$ -

⁴ fllllfllll

All of these well thought out design parameters have been brought into reality in a single product line - the Empire Series by General Air Products.

Innovat ive Compressed Air Technology

Differential

Input Input Water

In/Out Refrigerant

SCFM

Voltages*


	Capacity	Pressure	Fan	Heat Load	Standard	Available	Nominal	Air	Water	Cooled	Dimensions			Connect		Weight
Model	33-39°F pdp	psi	Cfm	Btu/Hr			HP	kW	kW	Gpm	D	W	H	Size		lbs
GES25	25	3.8	177	2800	115/1/60	230/1/60	0.2	0.31	-	-	19	14	24	3/4"	R134a	73
GES40	40	4.0	177	3500	115/1/60	230/1/60	0.25	0.35	-	-	19	14	24	3/4"	R134a	79
GES50	60	3.6	235	5800	115/1/60	230/1/60	0.4	0.54	_-	-	19	14	24	3/4"	R134a	81
GES75	85	3.9	353	8400	115/1/60	230/1/60	0.5	0.8	_-	-	25	20	32	1 1/4"	R404a	125
GES100	105	4.2	353	8500	115/1/60	230/1/60	0.5	0.85	_-	-	25	20	32	1 1/4"	R404a	132
GES125	140	4.2	530	10300	115/1/60	230/1/60	0.6	1.06	-	-	25	20	32	1 1/4"	R404a	136
GES150	175	3.4	1648	11900	115/1/60	230/1/60	0.7	1.2	_-	_-	29	22	34	2"	R404a	189
GES200	210	3.8	1648	17600	115/1/60	230/1/60	1.1	1.55	-	-	29	22	34	CM	R404a	200
GES250	275	3.4	1472	20300	230/1/60	n/a	1.3	1.8	-	-	29	22	34	2"	R404a	202
GES300	300	3.3	2207	20500	230/1/60	n/a	1.3	2.1	1.6	2.0	26	23	49	₂"	R404a	255
GES400	400	3.4	2207	27200	230/1/60	n/a	1.5	2.7	2.2	2.7	26	23	49	2"	R404a	268
GES500	500	3.9	5062	37000	460/3/60	230/3/60	2.7	4.2	3.3	3.7	40	24	66	3"	R404a	532
GES600	600	3.9	5062	42500	460/3/60	230/3/60	3	4.6	3.7	4.2	40	24	66	3"	R404a	543
GES700	700	4.0	4120	51300	460/3/60	230/3/60	3.8	5.5	4.6	5.1	40	24	66	3"	R404a	559
GES800	800	4.1	4120	59800	460/3/60	230/3/60	4	6.2	5.3	5.9	40	24	66	3"	R404a	572

*Consult Factory for other available voltages.

Correct ion Fact ors

Operating Pressure

Selecting the Correct Dryer: You have a 25 CFM compressor running at 150 psig, in an ambient of 110°F and an inlet temperature to the dryer of 115°F Corrected Flow: 25 cfm x 0.847 x 1.11 x 1.33 = 31.26 CFM Empire Model GES 40 should be chosen.


psig 85 100	155	200	232
factor 1.075 1.0	0.847	0.8	0.78
Ambient Temperature °F 90 100	110	115
factor 0.952 1.0	1.11	1.2
Inlet Air Temperature °F 90 100	110	115

factor 0.87 1.0 1.22 1.33
