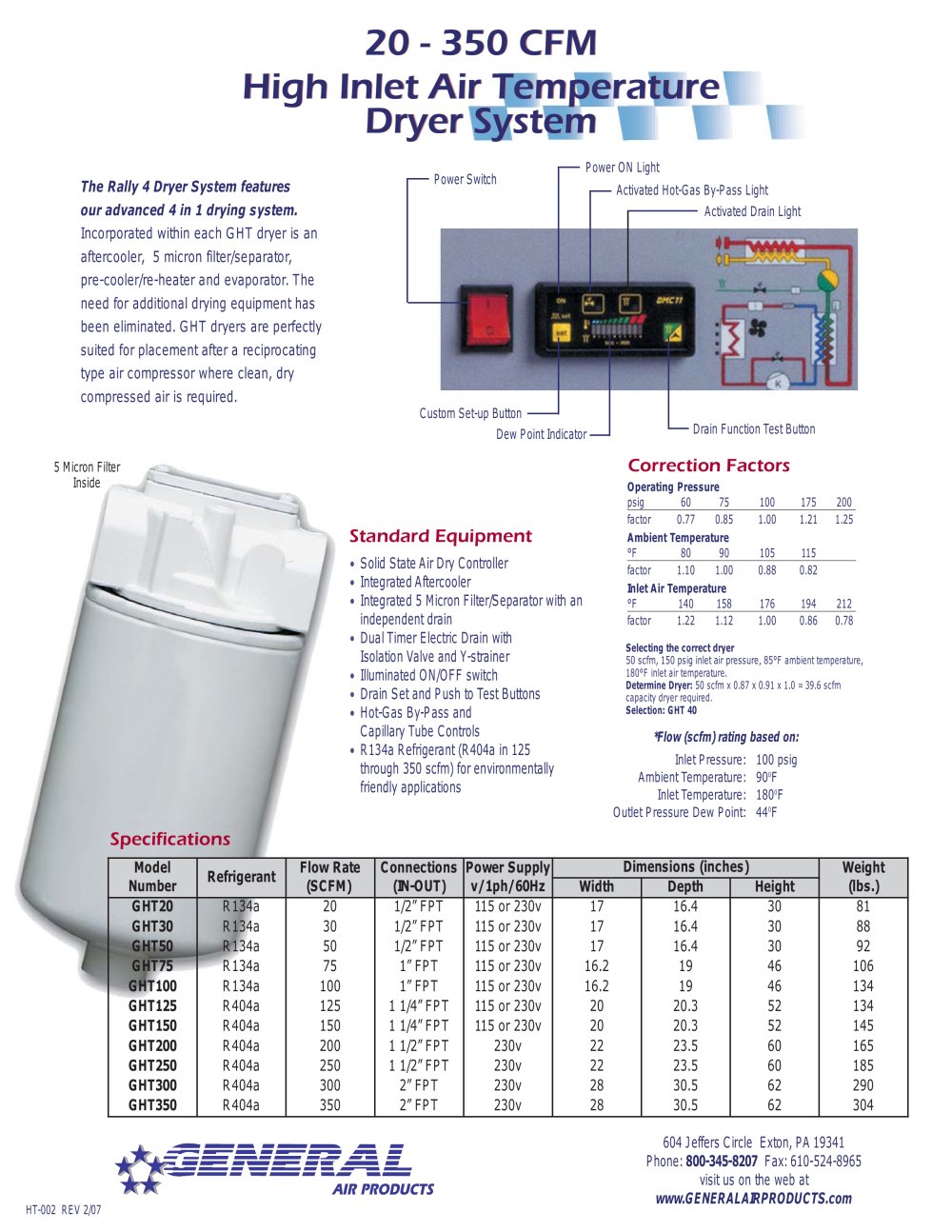

20 - 350 CFM 20 - 350 CFM High Inlet Air TemperatureDryer System High Inlet Air TemperatureDryer System

Power ON Light The Rally 4 Dryer System features our advanced 4 in 1 drying system. Incorporated within each GHTdryer is an aftercooler, 5 micron filter/separator, pre-cooler/re-heater and evaporator. The need for additional drying equipment has been eliminated. GHTdryers are perfectly suited for placement after a reciprocating type air compressor where clean, dry compressed air is required.
Power Switch Activated Hot-Gas By-Pass Light Activated Drain Light Custom Set-up ButtonDew Point Indicator Drain Function Test Button 5 Micron FilterInside

Correction Factors

Operating Pressure psig6075100175200factor0.770.851.001.211.25

Standard Equipment

Ambient Temperature Solid State Air Dry Controller
°F8090105115 factor1.101.000.880.82 ? ? Integrated Aftercooler
Inlet Air Temperature ? Integrated 5 Micron Filter/Separator with anindependent drain
°F140158176194212factor1.221.121.000.860.78 ? Dual Timer Electric Drain with Isolation Valve and Y-strainer
Selecting the correct dryer 50 scfm, 150 psig inlet air pressure, 85 °F ambient temperature,180°F inlet air temperature. ? Illuminated ON/OFF switch
? Drain Set and Push to Test Buttons
Determine Dryer: 50 scfm x 0.87 x 0.91 x 1.0 = 39.6 scfmcapacity dryer required. ? Hot-Gas By-Pass and Capillary Tube Controls
Selection: GHT 40 *Flow (scfm) rating based on: ? R134a Refrigerant (R404a in 125 through 350 scfm) for environmentally friendly applications
Inlet Pressure:Ambient Temperature:Inlet Temperature:Outlet Pressure Dew Point:100 psig90 F180 F44 F

Specifications

ModelNumber Refrigerant Flow Rate(SCFM) Connections(IN-OUT) Power Supplyv/ 1ph/ 60Hz Dimensions (inches) Weight(lbs.) Width Depth HeightGHT20 R134a20 1/2” FPT 115 or 230v 17 16.4 30 81 GHT30 R134a30 1/2” FPT 115 or 230v 17 16.4 30 88 GHT50 R134a50 1/2” FPT 115 or 230v 17 16.4 30 92 GHT75 R134a75 1” FPT 115 or 230v 16.2 19 46 106 GHT100 R134a100 1” FPT 115 or 230v 16.2 19 46 134 GHT125 R404a125 1 1/4” FPT 115 or 230v 20 20.3 52 134 GHT150 R404a150 1 1/4” FPT 115 or 230v 20 20.3 52 145 GHT200 R404a200 1 1/2” FPT 230v 22 23.5 60 165 GHT250 R404a250 1 1/2” FPT 230v 22 23.5 60 185 GHT300 R404a300 2” FPT 230v 28 30.5 62 290 GHT350 R404a350 2” FPT 230v 28 30.5 62 304 604 Jeffers Circle Exton, PA19341Phone: 800-345-8207 Fax: 610-524-8965visit us on the web at
HT-002 REV 2/07 www.GENERALAIRPRODUCTS.com
