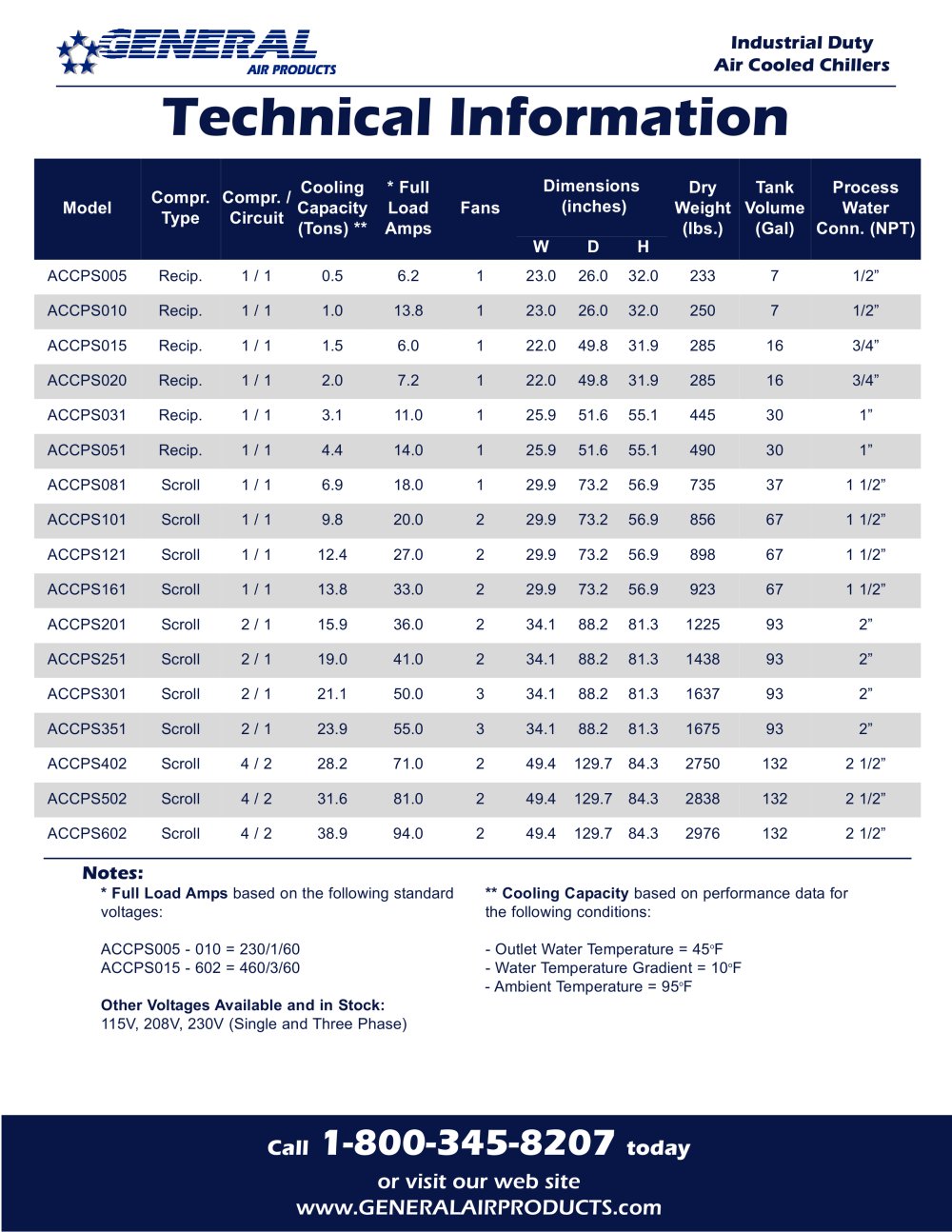

Technical Information

CoolingCapacity(Tons) ** * FullLoadAmps Dimensions(inches) DryWeight(lbs.) TankVolume(Gal) ProcessWaterConn. (NPT) Model Compr. Type Compr. /Circuit Fans W D H

ACCPS005 Recip. 1 / 1 0.5 6.2 1 23.0 26.0 32.0 233 7 1/2” ACCPS010 Recip. 1 / 1 1.0 13.8 1 23.0 26.0 32.0 250 7 1/2” ACCPS015 Recip. 1 / 1 1.5 6.0 1 22.0 49.8 31.9 285 16 3/4” ACCPS020 Recip. 1 / 1 2.0 7.2 1 22.0 49.8 31.9 285 16 3/4” ACCPS031 Recip. 1 / 1 3.1 11.0 1 25.9 51.6 55.1 445 30 1” ACCPS051 Recip. 1 / 1 4.4 14.0 1 25.9 51.6 55.1 490 30 1” ACCPS081 Scroll 1 / 1 6.9 18.0 1 29.9 73.2 56.9 735 37 1 1/2” ACCPS101 Scroll 1 / 1 9.8 20.0 2 29.9 73.2 56.9 856 67 1 1/2” ACCPS121 Scroll 1 / 1 12.4 27.0 2 29.9 73.2 56.9 898 67 1 1/2” ACCPS161 Scroll 1 / 1 13.8 33.0 2 29.9 73.2 56.9 923 67 1 1/2” ACCPS201 Scroll 2 / 1 15.9 36.0 2 34.1 88.2 81.3 1225 93 2” ACCPS251 Scroll 2 / 1 19.0 41.0 2 34.1 88.2 81.3 1438 93 2” ACCPS301 Scroll 2 / 1 21.1 50.0 3 34.1 88.2 81.3 1637 93 2” ACCPS351 Scroll 2 / 1 23.9 55.0 3 34.1 88.2 81.3 1675 93 2” ACCPS402Scroll4 / 228.271.0249.4129.784.327501322 1/2” ACCPS502 Scroll 4 / 2 31.6 81.0 2 49.4 129.7 84.3 2838 132 2 1/2” ACCPS602Scroll4 / 238.994.0249.4129.784.329761322 1/2”

Notes: Industrial Duty Air Cooled Chillers

* Full Load Amps based on the following standardvoltages:ACCPS005 - 010 = 230/1/60ACCPS015 - 602 = 460/3/60 ** Cooling Capacity based on performance data forthe following conditions:- Outlet Water Temperature = 45
o F- Water Temperature Gradient = 10
o F- Ambient Temperature = 95
o F Other Voltages Available and in Stock: 115V, 208V, 230V (Single and Three Phase)

Call

1-800-345-8207

today or visit our web sitewww.GENERALAIRPRODUCTS.com
