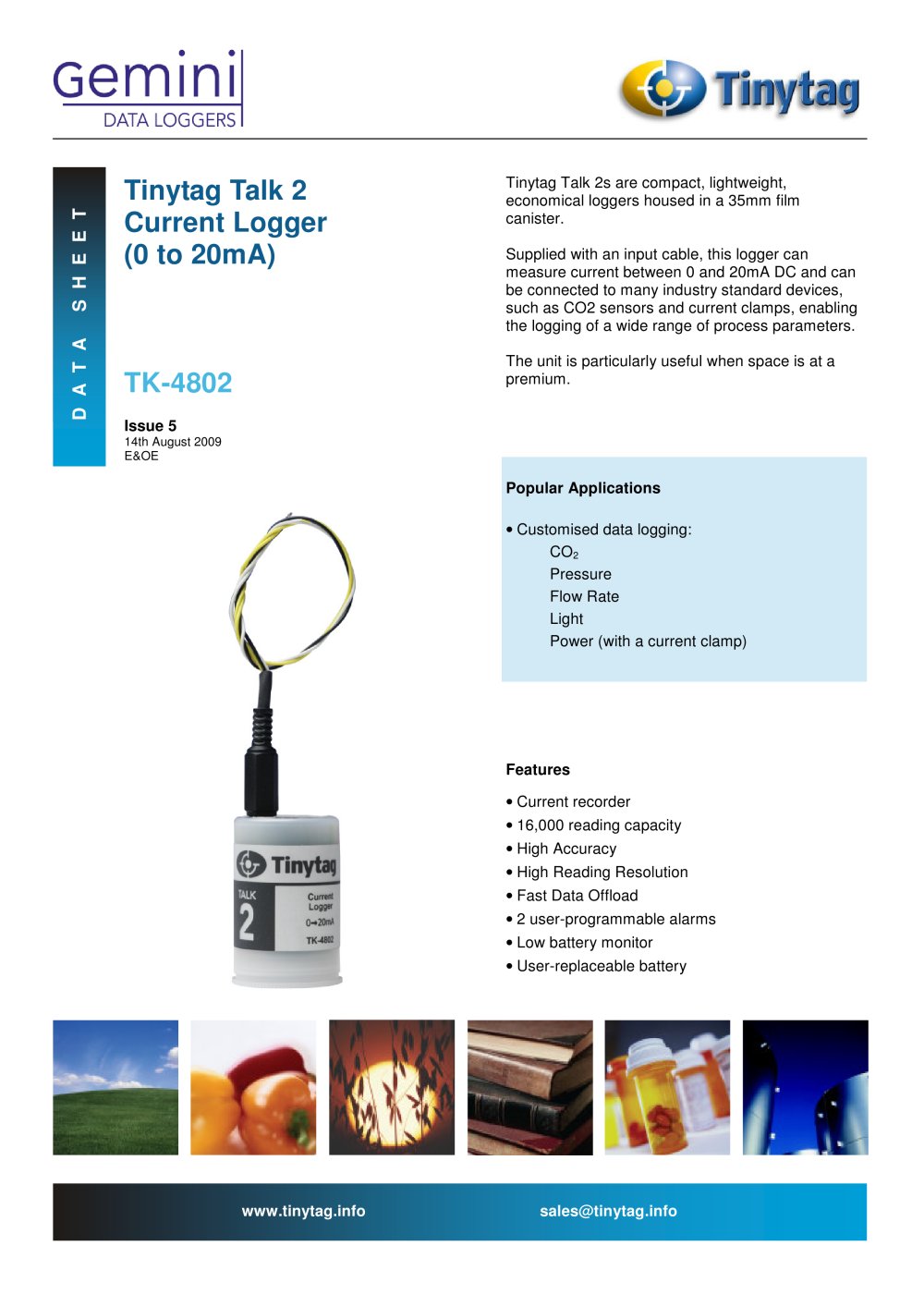

www.tinytag.info sales@tinytag.info Tinytag Talk 2 Current Logger (0 to 20mA) TK-4802 Issue 5 14th August 2009 E&OE D A T A S H E E T D A T A S H E E T Features • Current recorder • 16,000 reading capacity • High Accuracy • High Reading Resolution • Fast Data Offload • 2 user-programmable alarms • Low battery monitor • User-replaceable battery Tinytag Talk 2s are compact, lightweight, economical loggers housed in a 35mm film canister. Supplied with an input cable, this logger can measure current between 0 and 20mA DC and can be connected to many industry standard devices, such as CO2 sensors and current clamps, enabling the logging of a wide range of process parameters. The unit is particularly useful when space is at a premium. Popular Applications • Customised data logging: CO2 Pressure Flow Rate Light Power (with a current clamp)
