Industrial Power Transmission Systems - 361 Pages

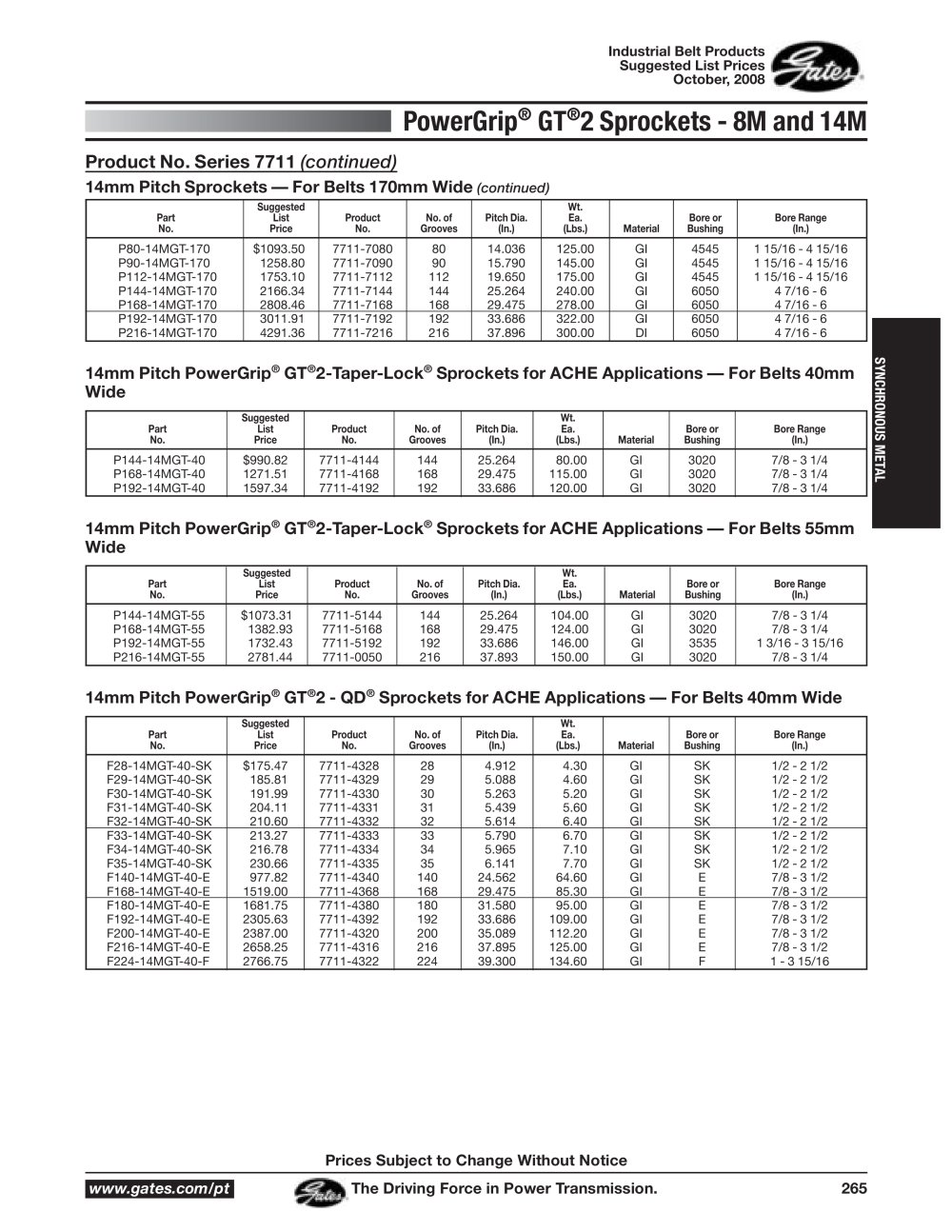

PowerGrip® GT®2 Sprockets - 8M and 14M
Product No. Series 7711 (continued)
14mm Pitch Sprockets For Belts 170mm Wide (continued)
Suggested
Wt.
Part
List
Product
No. of
Pitch Dia.
Ea.
Bore or
Bore Range
No.
Price
No.
Grooves
(In.)
(Lbs.)
Material
Bushing
(In.)
P80-14MGT-170
$1093.50
7711-7080
80
14.036
125.00
GI
4545
1 15/16 - 4 15/16
P90-14MGT-170
1258.80
7711-7090
90
15.790
145.00
GI
4545
1 15/16 - 4 15/16
P112-14MGT-170
1753.10
7711-7112
112
19.650
175.00
GI
4545
1 15/16 - 4 15/16
P144-14MGT-170
2166.34
7711-7144
144
25.264
240.00
GI
6050
4 7/16 - 6
P168-14MGT-170
2808.46
7711-7168
168
29.475
278.00
GI
6050
4 7/16 - 6
P192-14MGT-170
3011.91
7711-7192
192
33.686
322.00
GI
6050
4 7/16 - 6
P216-14MGT-170
4291.36
7711-7216
216
37.896
300.00
DI
6050
4 7/16 - 6
14mm Pitch PowerGrip® GT®2-Taper-Lock® Sprockets for ACHE Applications ח For Belts 40mm Wide
Suggested
Wt.
Part
List
Product
No. of
Pitch Dia.
Ea.
Bore or
Bore Range
No.
Price
No.
Grooves
(In.)
(Lbs.)
Material
Bushing
(In.)
P144-14MGT-40
$990.82
7711-4144
144
25.264
80.00
GI
3020
7/8-3 1/4
P168-14MGT-40
1271.51
7711-4168
168
29.475
115.00
GI
3020
7/8-3 1/4
P192-14MGT-40
1597.34
7711-4192
192
33.686
120.00
GI
3020
7/8-3 1/4
14mm Pitch PowerGrip® GT®2-Taper-Lock® Sprockets for ACHE Applications For Belts 55mm
Wide
Suggested
Wt.
Part
List
Product
No. of
Pitch Dia.
Ea.
Bore or
Bore Range
No.
Price
No.
Grooves
(In.)
(Lbs.)
Material
Bushing
(In.)
P144-14MGT-55
$1073.31
7711-5144
144
25.264
104.00
GI
3020
7/8-31/4
P168-14MGT-55
1382.93
7711-5168
168
29.475
124.00
GI
3020
7/8-31/4
P192-14MGT-55
1732.43
7711-5192
192
33.686
146.00
GI
3535
1 3/16 - 3 15/16
P216-14MGT-55
2781.44
7711-0050
216
37.893
150.00
GI
3020
7/8-31/4
14mm Pitch PowerGrip® GT®2-QD® Sprockets for ACHE Applications ח For Belts 40mm Wide
Suggested
Wt.
Part
List
Product
No. of
Pitch Dia.
Ea.
Bore or
Bore Range
No.
Price
No.
Grooves
(In.)
(Lbs.)
Material
Bushing
(In.)
F28-14MGT-40-SK
$175.47
7711-4328
28
4.912
4.30
GI
SK
1/2-21/2
F29-14MGT-40-SK
185.81
7711-4329
29
5.088
4.60
GI
SK
1/2-21/2
F30-14MGT-40-SK
191.99
7711-4330
30
5.263
5.20
GI
SK
1/2-21/2
F31-14MGT-40-SK
204.11
7711-4331
31
5.439
5.60
GI
SK
1/2-21/2
F32-14MGT-40-SK
210.60
7711-4332
32
5.614
6.40
GI
SK
1/2-21/2
F33-14MGT-40-SK
213.27
7711-4333
33
5.790
6.70
GI
SK
1/2-21/2
F34-14MGT-40-SK
216.78
7711-4334
34
5.965
7.10
GI
SK
1/2-21/2
F35-14MGT-40-SK
230.66
7711-4335
35
6.141
7.70
GI
SK
1/2-21/2
F140-14MGT-40-E
977.82
7711-4340
140
24.562
64.60
GI
E
7/8-31/2
F168-14MGT-40-E
1519.00
7711-4368
168
29.475
85.30
GI
E
7/8-31/2
F180-14MGT-40-E
1681.75
7711-4380
180
31.580
95.00
GI
E
7/8-31/2
F192-14MGT-40-E
2305.63
7711-4392
192
33.686
109.00
GI
E
7/8-31/2
F200-14MGT-40-E
2387.00
7711-4320
200
35.089
112.20
GI
E
7/8-31/2
F216-14MGT-40-E
2658.25
7711-4316
216
37.895
125.00
GI
E
7/8-31/2
F224-14MGT-40-F
2766.75
7711-4322
224
39.300
134.60
GI
F
1 - 3 15/16
Prices Subject to Change Without Notice
