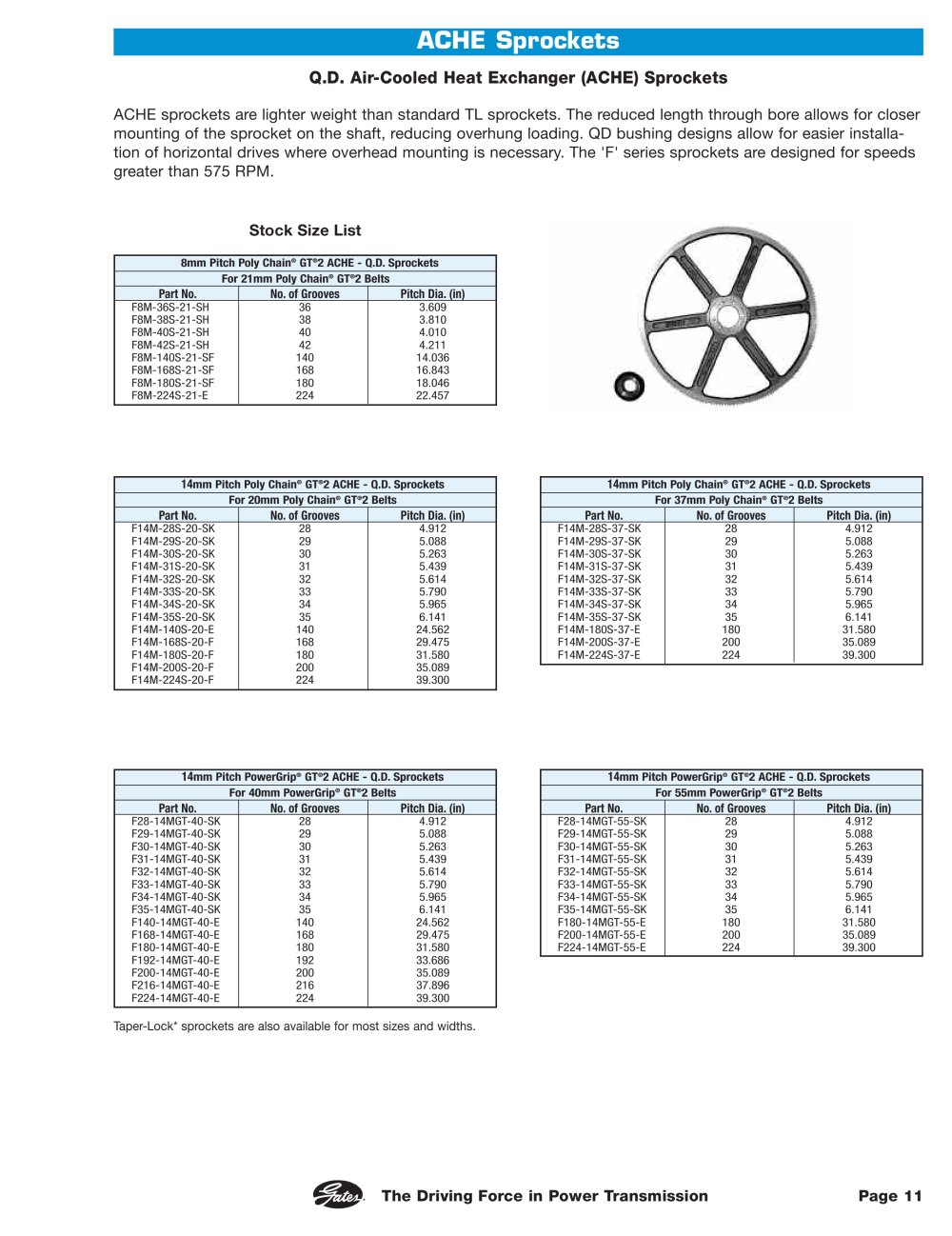

ACHE Sprockets

Q.D. Air-Cooled Heat Exchanger (ACHE) Sprockets

ACHE sprockets are lighter weight than standard TL sprockets. The reduced length through bore allows for closer

mounting of the sprocket on the shaft, reducing overhung loading. QD bushing designs allow for easier installa-

tion of horizontal drives where overhead mounting is necessary. The 'F' series sprockets are designed for speeds

greater than 575 RPM.

14mm Pitch Poly Chain" GT"2 ACHE - Q.D. Sprockets

For 20mm Poly Chain" GT 2 Belts

Part No.

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

F14M-

28S-20-SK

29S-20-SK

30S-20-SK

31S-20-SK

32S-20-SK

33S-20-SK

34S-20-SK

35S-20-SK

140S-20-E

168S-20-F

180S-20-F

200S-20-F

224S-20-F

No. of Grooves

28

29

30

31

32

33

34

35

140

168

180

200

224

Pitch Dia. (in)

4.912

5.088

5.263

5.439

5.614

5.790

5.965

6.141

24.562

29.475

31.580

35.089

39.300

14mm Pitch Poly Chain" GT"2 ACHE - Q.D. Sprockets

For 37mm Poly Chain" GT"2 Belts

Part No.

No. of Grooves

Pitch Dia. (in)

F14M-28S-37-SK

F14M-29S-37-SK

F14M-30S-37-SK

F14M-31S-37-SK

F14M-32S-37-SK

F14M-33S-37-SK

F14M-34S-37-SK

F14M-35S-37-SK

F14M-180S-37-E

F14M-200S-37-E

F14M-224S-37-E

28

29

30

31

32

33

34

35

180

200

224

4.912

5.088

5.263

5.439

5.614

5.790

5.965

6.141

31.580

35.089

39.300

14mm Pitch PowerGrip" GT"2 ACHE - Q.D. Sprockets

For 40mm PowerGrip" GT"2 Belts

Part No.

No. of Grooves

Pitch Dia. (in)

F28-14MGT-40-SK

F29-14MGT-40-SK

F30-14MGT-40-SK

F31-14MGT-40-SK

F32-14MGT-40-SK

F33-14MGT-40-SK

F34-14MGT-40-SK

F35-14MGT-40-SK

F140-14MGT-40-E

F168-14MGT-40-E

F180-14MGT-40-E

F192-14MGT-40-E

F200-14MGT-40-E

F216-14MGT-40-E

F224-14MGT-40-E

28

29

30

31

32

33

34

35

140

168

180

192

200

216

224

4.912

5.088

5.263

5.439

5.614

5.790

5.965

6.141

24.562

29.475

31.580

33.686

35.089

37.896

39.300

Taper-Lock* sprockets are also available for most sizes and widths.

14mm Pitch PowerGrip" GT"2 ACHE - Q.D. Sprockets

For 55mm PowerGrip" GT"2 Belts

Part No.

No. of Grooves

Pitch Dia. (in)

F28-14MGT-55-SK

F29-14MGT-55-SK

F30-14MGT-55-SK

F31-14MGT-55-SK

F32-14MGT-55-SK

F33-14MGT-55-SK

F34-14MGT-55-SK

F35-14MGT-55-SK

F180-14MGT-55-E

F200-14MGT-55-E

F224-14MGT-55-E

28

29

30

31

32

33

34

35

180

200

224

4.912

5.088

5.263

5.439

5.614

5.790

5.965

6.141

31.580

35.089

39.300

JiS^P. The Driving Force in Power Transmission

Page 11
