( :c^r Product and Application Information
m
This catalog presents the models primarily in ascending order of free air flow, with motor mounted styles first followed by our separate drive offerings. The table below will assist you in locating a particular model or series.

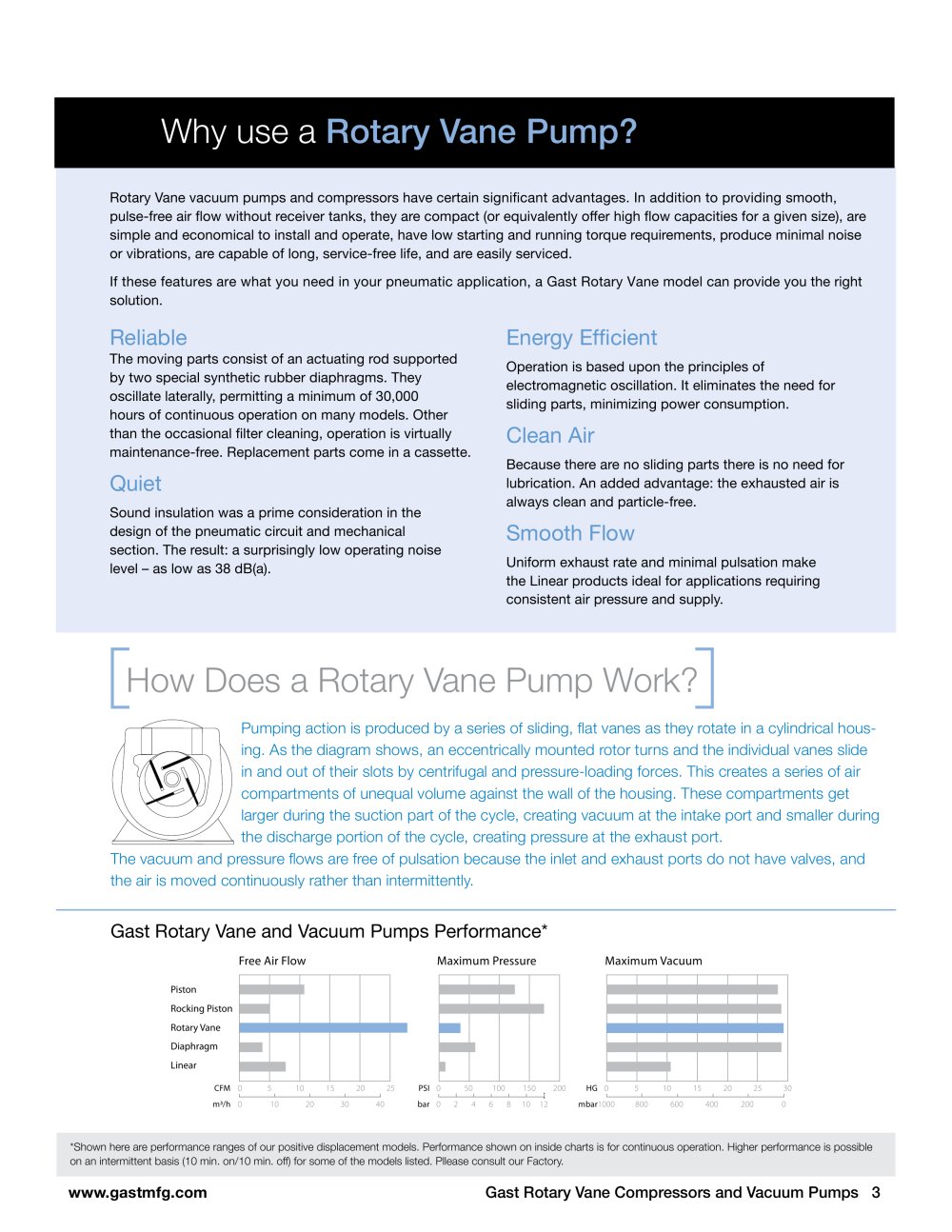

How does a Rotary Vane pump work?
Pumping action is pro­duced by a series of sliding, flat vanes as they rotate in a cylindrical housing. As the diagram shows, an eccentrically mounted rotor turns and the individual vanes slide in and out of their slots by cen­trifugal and pressure-loading forces. This creates a series of air compart­ments of unequal volume against the wall of the housing. These com­partments get larger during the suction part of the cycle, creating vacuum at the intake port and smaller during the discharge portion of the cycle, creating pressure at the exhaust port.
The vacuum and pressure flows are free of pulsation because the inlet and exhaust ports do not have valves, and the air is moved con­tinuously rather than intermittently.
MODEL/ SERIES
POWER RATING @ 60 Hz
FREE AIR FLOW
MAXIMUM PRESSURE
M AXIM UM
VACUUM
Page No.
cfm
m3/h
hp
kW
50 Hz
1 60 Hz
50 Hz
60 Hz
psi
bar
" Hg
mbar
Motor Mounted
1531
7.0
1.25 .1.5
2,5
15
1,0
20
335
4
0532
7.5
0,05
.29 .s
0,49 1,0
15
1,0
20
335
5
1032
7.5
0,05
.92
1.1
1,56
1,9
10
0,7
20
335
5
1532
7.0
0,07
1.3
1.5
2,2
2,5
10
0,7
20
335
5
2032
'/a
0,09
2.0
2.4
3,4
4,1
10
0,7
26
133
7
3032
7s
0,12
2.4
2.6
4,1
4,4
10
0,7
26.5
116
7
0211
'/s
0,12
1.1
1.3
1,9
2,2
20
1,4
20
335
9
0323-1423 (5 models)
'/4-1
0,19­0,56
2.7-11.5
3.2-13
4,6­19,5
5,4-22
10
0,7
26.5
116
11-14
RV Series
'/s
0,12
3,8-4,8
6,5-8,7
5
0,33
15
492
15
2070
2
1,5
16
20
27
34
25
167
16
Separate Drive
0533
./.5
0,05
.5
.6
0,85
1,0
15
1,0
20
335
18
1033
./.0
0,07
.9
1.1
1,53
1,9
15
1,0
20
335
18
1034
.18
0,13
1.6
2,7
10
0,7
20
335
19
1534
.18
0,13
2.2
3,7
10
0,7
20
335
19
0240-0740
'/4-'/3
0,19­0,25
1.5-4.9
1.9-6.0
2,5­8,3
3,2-10
10
0,7
20
335
20
0465
./4
0,19
3.4
4.0
5,8
6,8
28
65
22
0765
./3
0,25
5.0
6.0
8,5
10
28
65
22
1550
3/4
0,56
11.5
14.5
19,5
24,7
15
1,0
20
335
22
1065-2565
'/2-1 '/2
0,37-1,1
7.3-16.5
8.5-21
12-28
14,4-35,7
25
1,7
28
65
24
2067-2567
1 -1 '/2
0,75-1,1
14-17
17-21
24-29
29-35,7
15
1,0
28
65
26-28
2080-4080
2-5
1,5-3,7
20-37
25-45
34-63
42-76
15
1,0
25
167
29
3040
2
1,5
31
40
53
68
10
0,7
20
335
31
4565
3
2,2
36
47.5
61
80,1
15
1,0
25
167
33
5565
3
2,2
45
55
76
93,5
20
335
34
6066
5
3,7
45
55
76
93,5
15*
1,0
25
167
35
1290**
10
7,5
112
190
20
1,4
35
*Standard model performance. Soil sparging model capable of 20 psi. * * Soil sparging model.
U
Product and Application Information
Electric Motors
Catalog Performance Specifications
The specifications listed are that of a unit at sea level with an ambient temperature of 70°F (21 °C), operating with normal electrical current conditions.
The figures stated in this catalog are nominal approximations for models without accessories. Intake filters and exhaust mufflers, and the accumulation of contaminants in them during operation, will decrease the flow of air as well as the achievable pressure.
Continuous vs. Intermittent Operation
Continuous vs. intermittent duty usually must be considered. Our definition of intermittent duty is 10 minutes or less on and 10 minutes or more off. Please note that when you refer to perfor­mance curves in this catalog, the solid line indicates continuous operation, while the dashed line shows intermittent duty.
European Community's C€ Machinery Directive
Given its international perspective, Gast has also pledged to conform to the European Community's Machinery Directive, a safety certification program for all products targeted for marketing in the European Community. Currently, all Gast products sold in the European Community are in compliance and include a Declaration Certificate. 3
Many variables determine the life expectancy of a unit. Among them are:
1. Ambient temperature
Gast's units operate best within a tem­perature range of 32°F (0°C) to 100°F (38°C). Lower temperatures affect a unit's ability to start and higher tem­peratures affect its life. Contact the factory for authorization of unusual ambient conditions.
2. Duty level
3. Operating cycle
4. Operating speed
5. Condition of air handled
• Cleanliness
• Humidity
• Heat
• Chemical vapors present (corrosive, noncorrosive)
6. Unit maintenance
• Lubrication (if required)
• Filter maintenance
• Muffler maintenance
All electric motors supplied with Gast vacuum pumps are designed to operate at plus or minus 10% of nameplate voltage. Motors to meet special requirements are available upon request. Various brand-name motors are furnished on any model at the discretion of Gast.
Starting Under Load
Rotary vane units will start under load. The vanes permit the internal chamber of the unit to bleed off during the cycle. At start-up, the pump is not subjected to full load until enough centrifugal force has been attained to throw the vanes out against the body. By that time, the motor has gained enough momentum to continue its cycle without stress.
